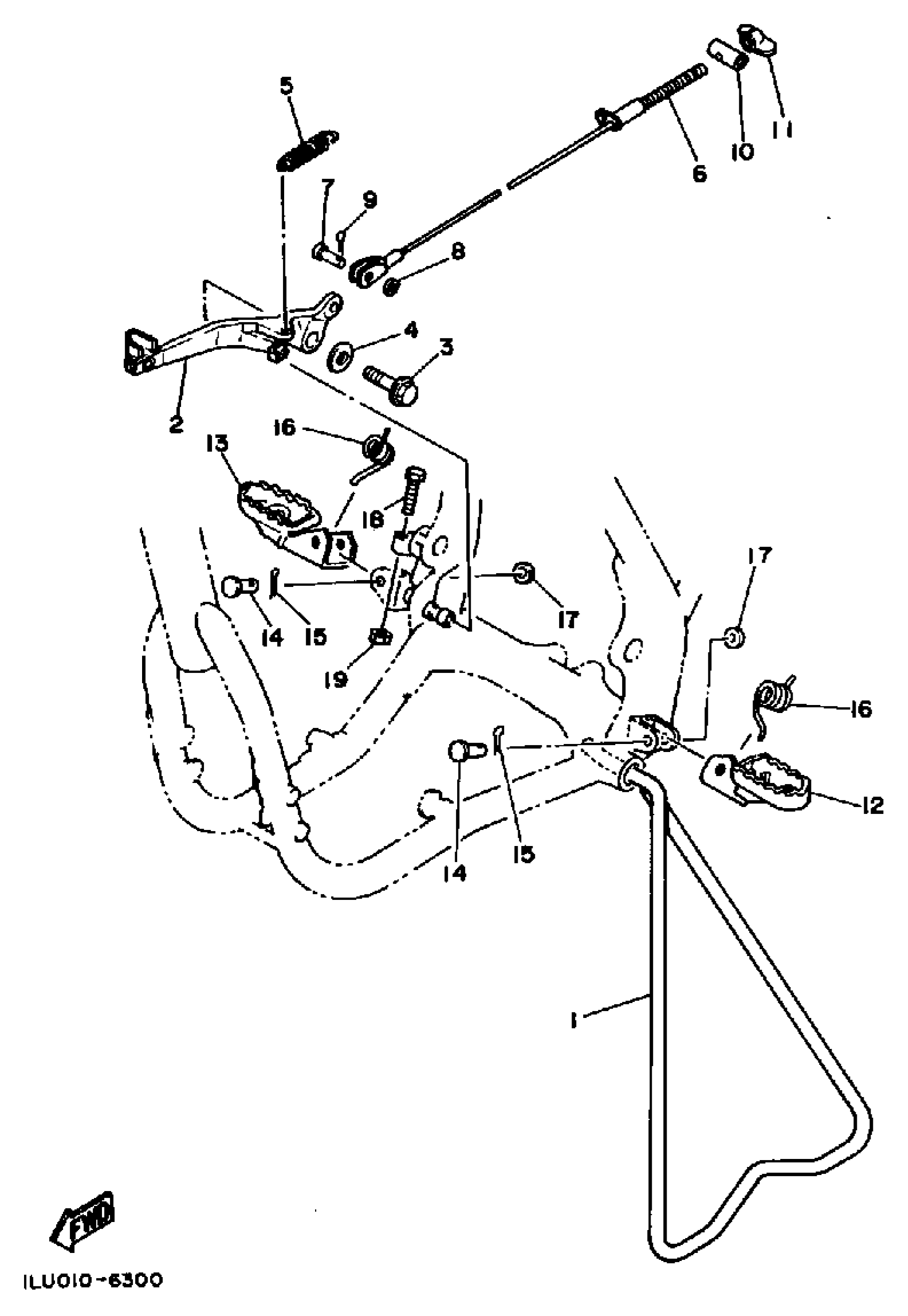

Yamaha YZ490S (YZ490) 1986 STAND FOOTREST Diagram

#

Description
Price

1

STAND,SIDE

4LB-27311-00-00

Unavailable

2

PEDAL,BRAKE

56A-27200-00-00

Unavailable

3

BOLT, FLANGE (3JPE)

95024-08016-00

$9.49

4

WASHER, PLATE (12X)

90201-087F0-00

$5.60

5

SPRING, TENSION(56A)

90506-16372-00

$8.49

6

CABLE, BRAKE

40T-26351-00-00

Unavailable

7

PIN, CLEVIS

91790-08021-00

Unavailable

8

.. WASHER, PLATE

92990-08600-00

Unavailable

9

PIN, COTTER

91490-25020-00

$3.19

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT, WING (1K5)

90175-06013-00

$4.88

12

FOOTREST 1

23X-27411-03-00

Unavailable

13

FOOTREST 2

23X-27421-04-00

Unavailable

14

PIN, CLEVIS (23X)

90240-10101-00

$12.49

15

PIN, COTTER

91490-25020-00

$3.19

16

SPRING, TORSION (23X)

90508-20583-00

Unavailable

17

WASHER, PLAIN(735)

90201-10119-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable
