REAR SHOCK

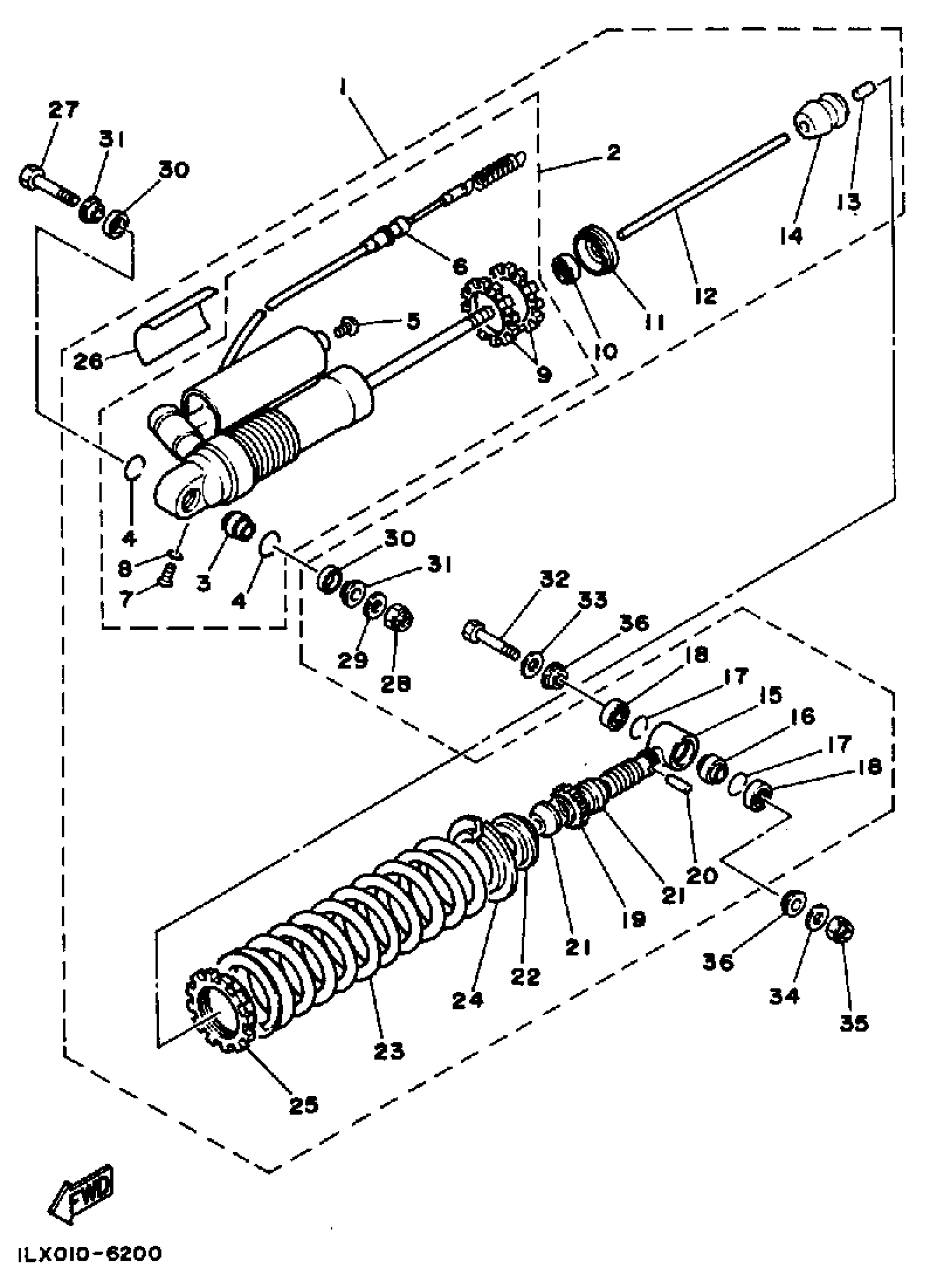

Yamaha YZ490S (YZ490) 1986 REAR SHOCK Diagram
#
1
SHK/ABS ASSEMBLY, REAR
1LV-22210-00-6W
Unavailable
2
. DAMPER SUB-ASSEMBLY
1LV-22401-00-00
Unavailable
5
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
6
.. CABLE, CONTROL 1
1LV-22463-00-00
Unavailable
7
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
9
.. RING, HOLD
1LX-22225-00-00
Unavailable
10
SEAL,DUST
23X-22475-01-00
Unavailable
11
. CAP, CASE 001
26A-22472-00-00
Unavailable
12
. ROD, PUSH
1LX-22489-00-00
Unavailable
13
. PIN, DOWEL
93604-21193-00
Unavailable
14
. BUMP, STOP
1LX-22493-00-00
Unavailable
15
. UPPER BRKT SUB ASSEMBLY
1LX-22409-00-00
Unavailable
18
OIL SEAL (23X)
93104-18077-00
Unavailable
19
. NUT, ADJUSTING
5X3-22497-00-00
Unavailable
20
. PIN, DOWEL
93604-26132-00
Unavailable
21
. COVER
3R4-22221-01-00
Unavailable
22
SPRING (K=5.25)
1LV-22212-10-6W
Unavailable
22
. SEAT, SPRING UPPER
1LX-22213-00-00
Unavailable
23
. SPRING (550) (BLACK-BLUE)
1LV-22212-00-6W
Unavailable
23
. SPRING (575)
1LV-22212-20-6W
Unavailable
24
. GUIDE, SPRING 1
2VN-22214-00-00
Unavailable
25
. SEAT, SPRING LOWER
1LX-22223-00-00
Unavailable
26
LABEL, CAUTION
(1LV-22499-00-00)
Unavailable
27
BOLT
90109-10704-00
Unavailable
28
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
29
UNAVAILABLE IN PRICE BOOK (90201-10430)
90201-104F7-00
Unavailable
30
COVER
23X-22211-00-00
Unavailable
31
COLLAR (23X)
90387-127G8-00
Unavailable
32
BOLT
90109-10700-00
Unavailable
33
WASHER, PLATE
90201-12027-00
Unavailable
34
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
35
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
36
COLLAR (23X)
90387-126H8-00
Unavailable
