Description

Price

1

HUB, FRONT

1LX-25111-00-98

Unavailable

2

BEARING

93306-20205-00

$38.99

3

SPACER(1ET)

90560-15290-00

$18.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM 1.60 (1.60-21)

94416-21435-00

Unavailable

6

SPOKE SET, FRONT

1LX-25104-00-00

Unavailable

7

TIRE (80/100-21-4PR)

94108-215H9-00

Unavailable

8

TUBE 90190-21

94209-21229-00

Unavailable

9

BAND, RIM (2A6)

94330-21084-00

$16.99

10

SPACER, BEAD

5X2-25394-00-00

$39.99

11

AXLE, WHEEL

4GY-25181-00-00

Unavailable

12

COLLAR (34L)

90387-152J3-00

$21.99

13

COVER, HUB DUST

322-25118-00-00

$17.49

14

COLLAR (1W1)

90387-15600-00

$18.99

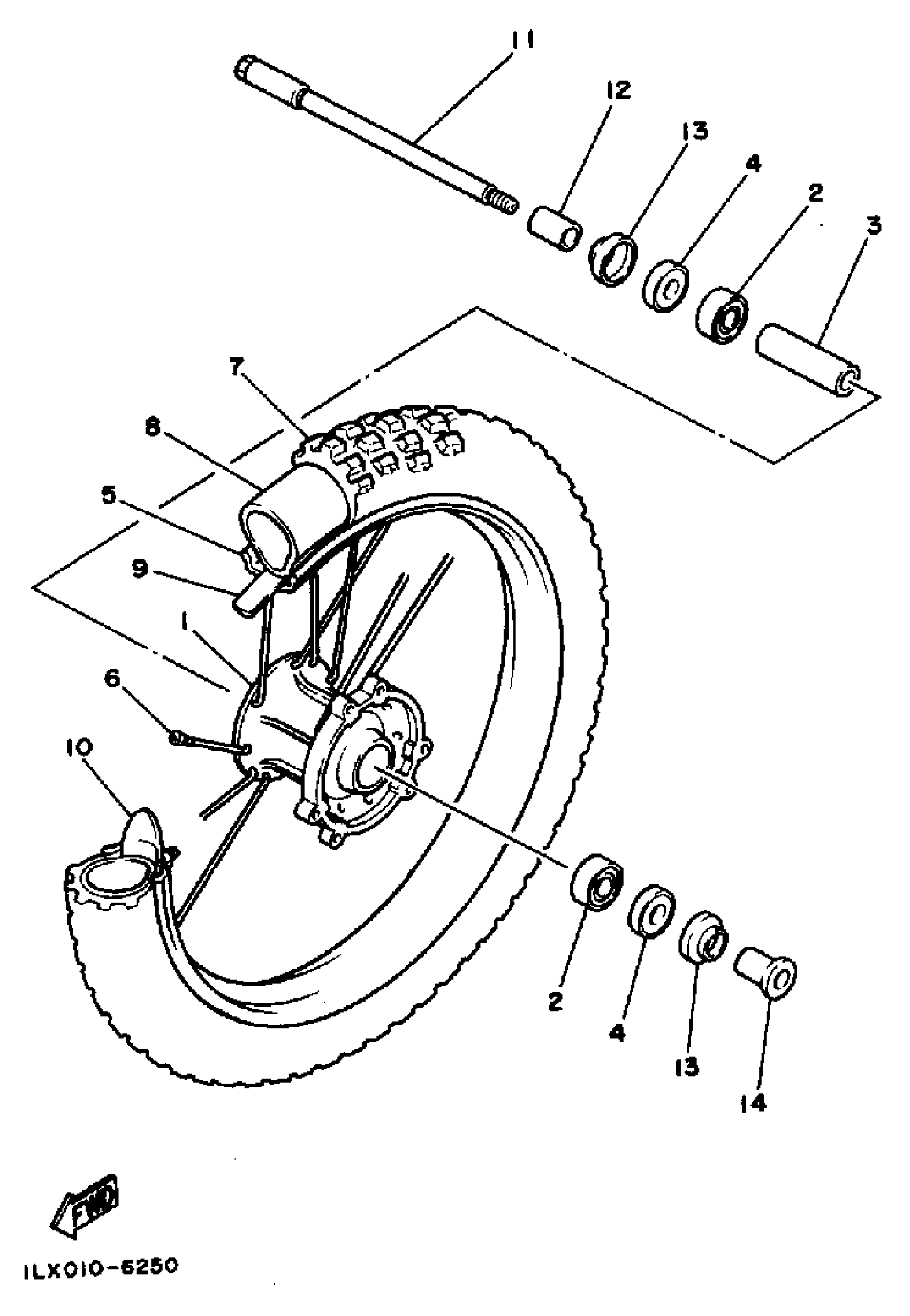

Yamaha YZ490S (YZ490) 1986 FRONT WHEEL Diagram

HUB, FRONT

BEARING

SPACER(1ET)

OIL SEAL (23X)

RIM 1.60 (1.60-21)

SPOKE SET, FRONT

TIRE (80/100-21-4PR)

TUBE 90190-21

BAND, RIM (2A6)

SPACER, BEAD

AXLE, WHEEL

COLLAR (34L)

COVER, HUB DUST

COLLAR (1W1)
