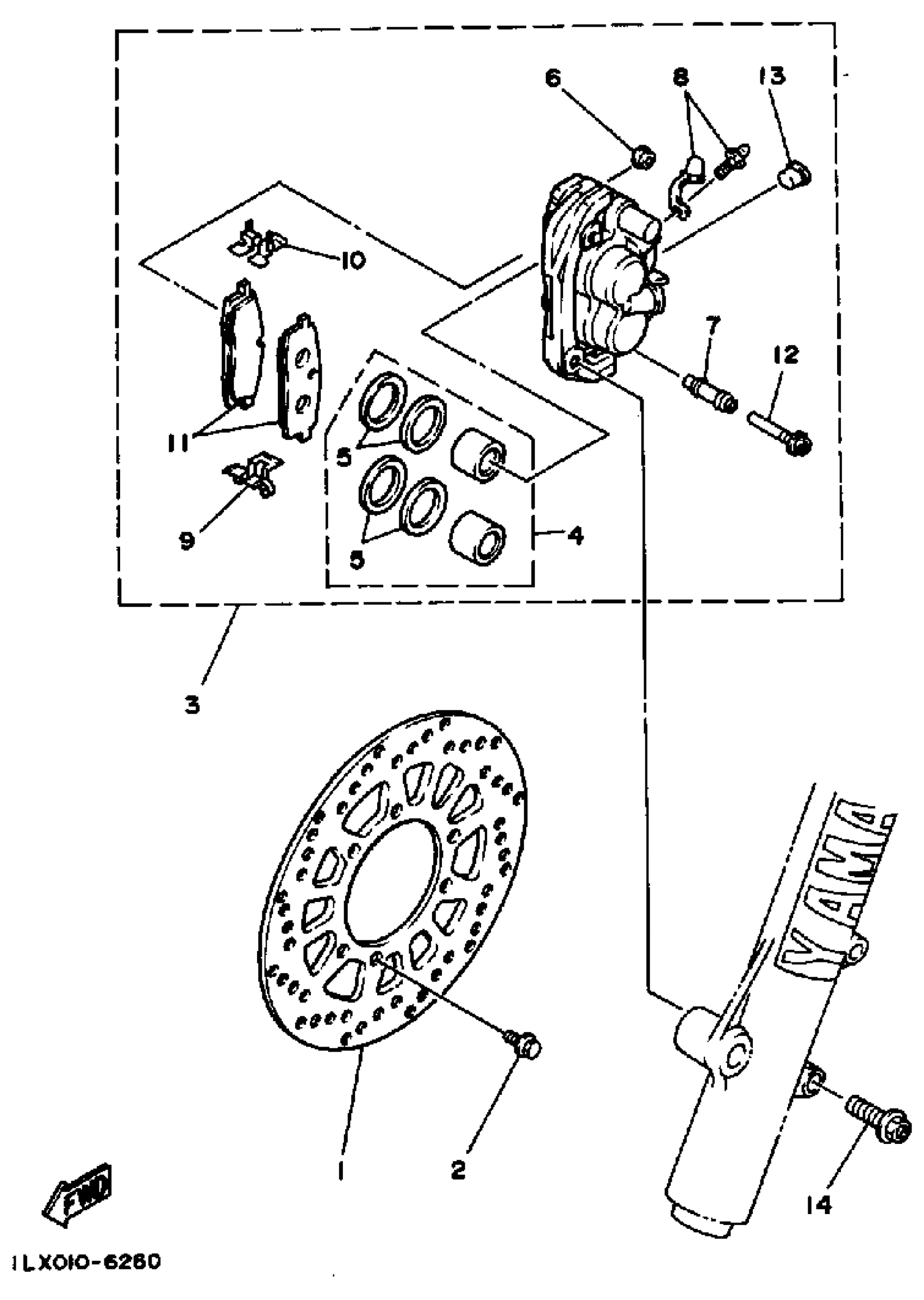

Yamaha YZ490S (YZ490) 1986 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$92.99

2

BOLT

90109-06757-00

Unavailable

3

CALIPER ASSY

1LN-2580T-00-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

56A-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

56A-W0047-00-00

$24.99

6

BOOT 2

5R2-25937-00-00

$37.99

7

BOOT 2

56A-25937-00-00

$23.99

8

BLEED SCREW KIT

15B-W0048-00-00

$19.99

9

SUPPORT, PAD

56A-25919-00-00

$35.99

10

SUPPORT, PAD

56A-25919-10-00

$32.99

11

BRAKE PAD KIT

1LN-W0045-01-00

$69.99

12

BOLT

56A-25926-00-00

$14.49

13

CAP, INDICATOR

34X-25845-00-00

$16.49

14

BOLT, FLANGE

95814-08045-00

$4.29
