1986 Yamaha YZ490 (YZ490S) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha YZ490 (YZ490S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

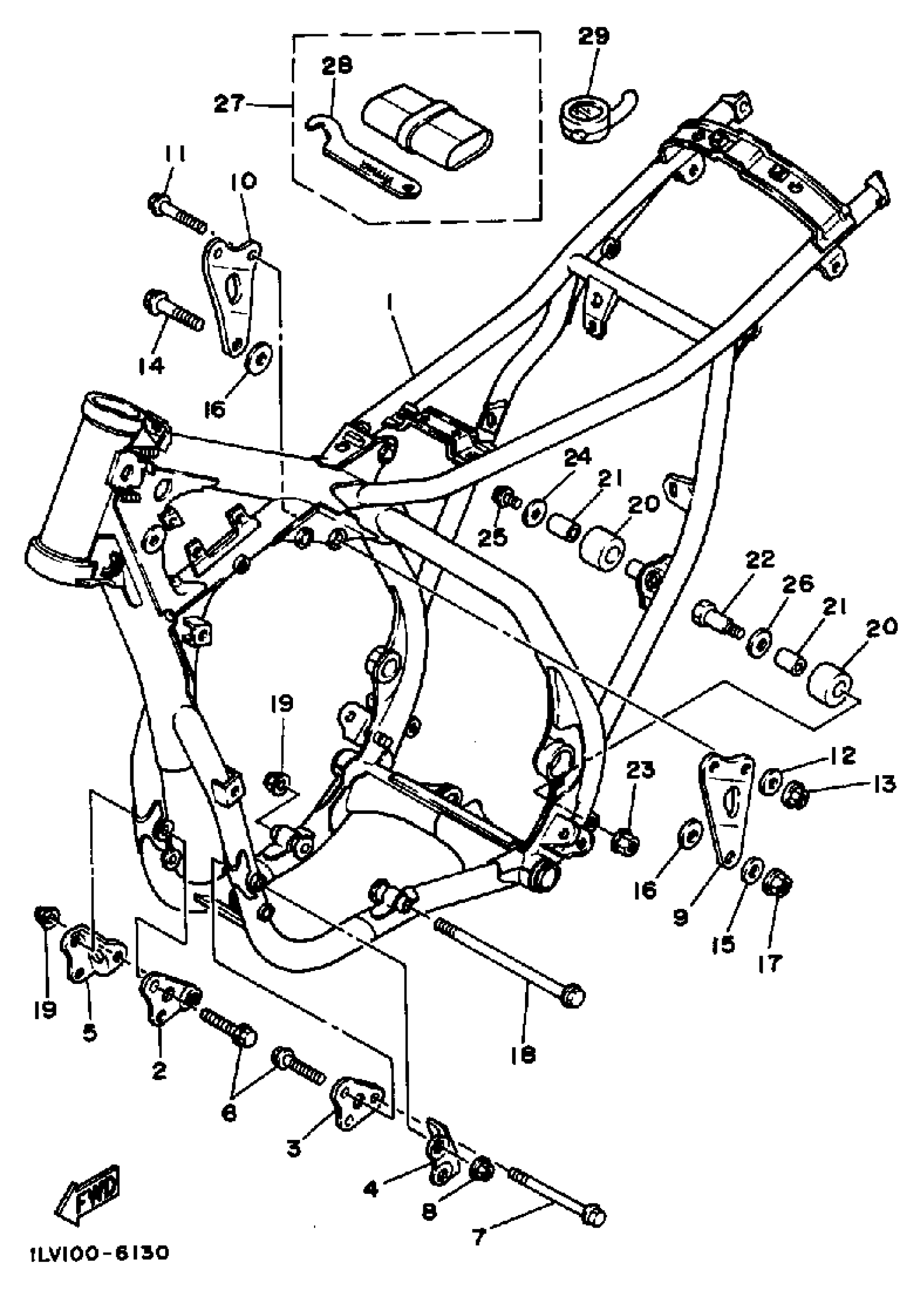

1986 Yamaha YZ490 (YZ490S) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

1LV-21110-00-FH

1
Out of stock

2

BRACKET, FRONT UPPER 2

40T-21416-00-00

1
Out of stock

3

BRACKET, FRONT UPPER 1

40T-21415-00-00

1
Out of stock

4

BRACKET, OUTER 1

40T-2141K-00-00

1
Out of stock

5

BRACKET, OUTER 2

40T-2141L-00-00

1
Out of stock

6

BOLT, FLANGE

95817-08060-00

1

$3.28

In stock

7

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

8

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

9

BRACKET, REAR UPR 1

1LV-21425-00-00

1
Out of stock

10

BRACKET, REAR UPR 2

1LV-21426-00-00

1
Out of stock

11

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

12

WASHER 6464313202

90202-08022-00

1

$3.56

In stock

13

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

14

BOLT,FLANGE

95817-10065-00

1

$4.72

In stock

15

1

$3.00

In stock

16

WASHER, PLATE (17K)

90201-106F2-00

—

$7.66

In stock

17

NUT, SELF-LOCKING

90185-10170-00

—

$7.98

In stock

18

BOLT, FLANGE

95817-08180-00

1
Out of stock

19

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

20

TENSIONER

30X-22178-00-00

—
Out of stock

21

BUSH

4V4-22184-00-00

—

$3.57

In stock

22

BOLT (23X)

90109-08705-00

—

$12.78

In stock

23

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

24

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

25

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock

26

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

27

TOOL KIT

56A-28100-00-00

1
Out of stock

28

SPANNER,SPECIAL

1HX-28135-00-00

1
Out of stock

29

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
