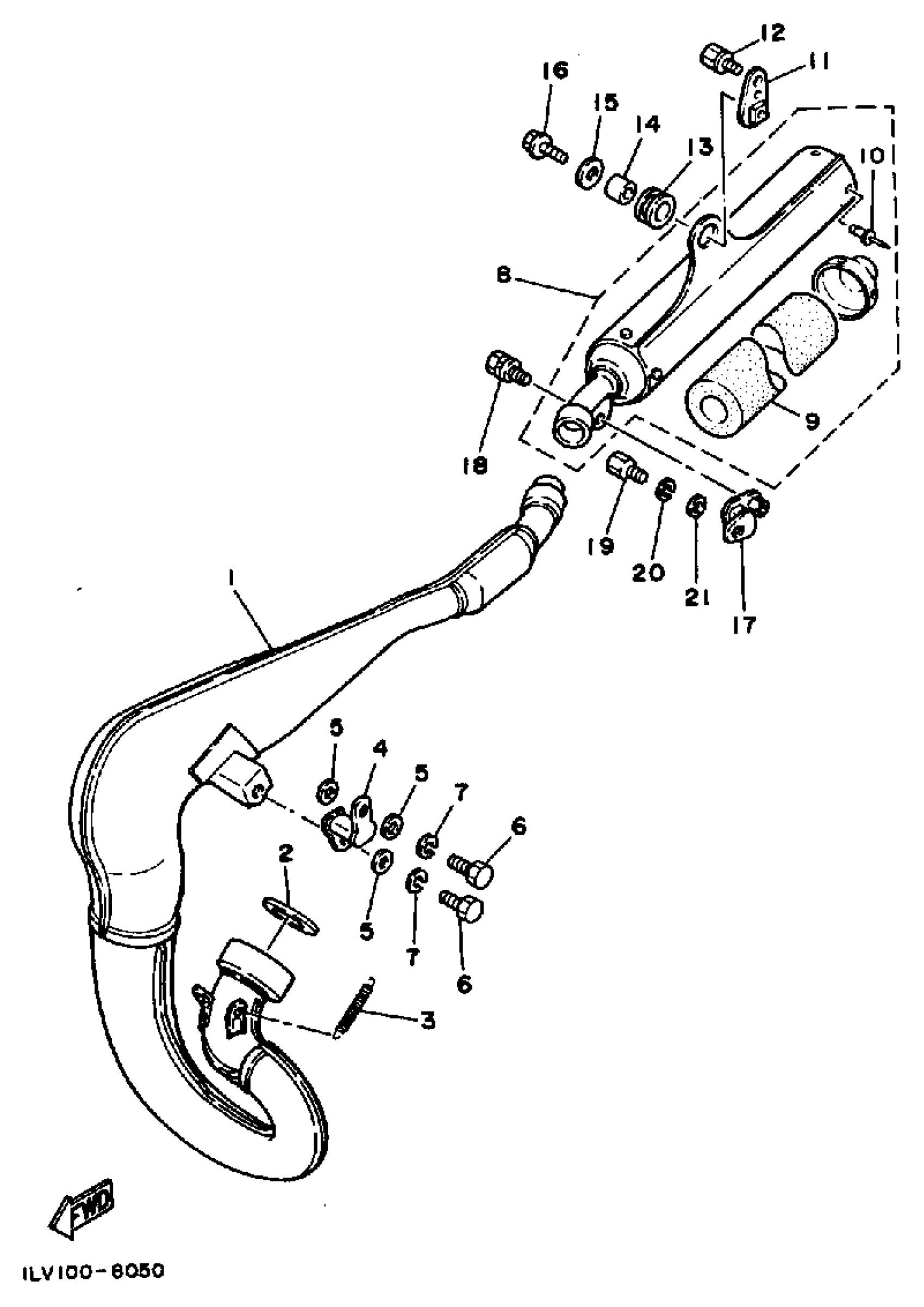

Yamaha YZ490S (YZ490) 1986 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
1LV-14610-00-00
Unavailable
2
GASKET,EXST PIPE
40T-14613-10-00
Unavailable
4
STAY, MUFFLER 1
40T-14771-00-00
Unavailable
8
SILENCER, EXHAUST
40T-14753-01-00
Unavailable
9
. FIBER
40T-1469A-00-00
Unavailable
11
BRACKET
1LX-14744-00-00
Unavailable
12
BOLT
90109-08573-00
Unavailable
13
DAMPER, MUFFLER
39X-14747-00-00
Unavailable
14
COLLAR
90387-081A3-00
Unavailable
16
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
17
STAY, MUFFLER 1
565-14771-01-00
Unavailable
18
BOLT (3R4)
90109-06551-00
Unavailable
19
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
