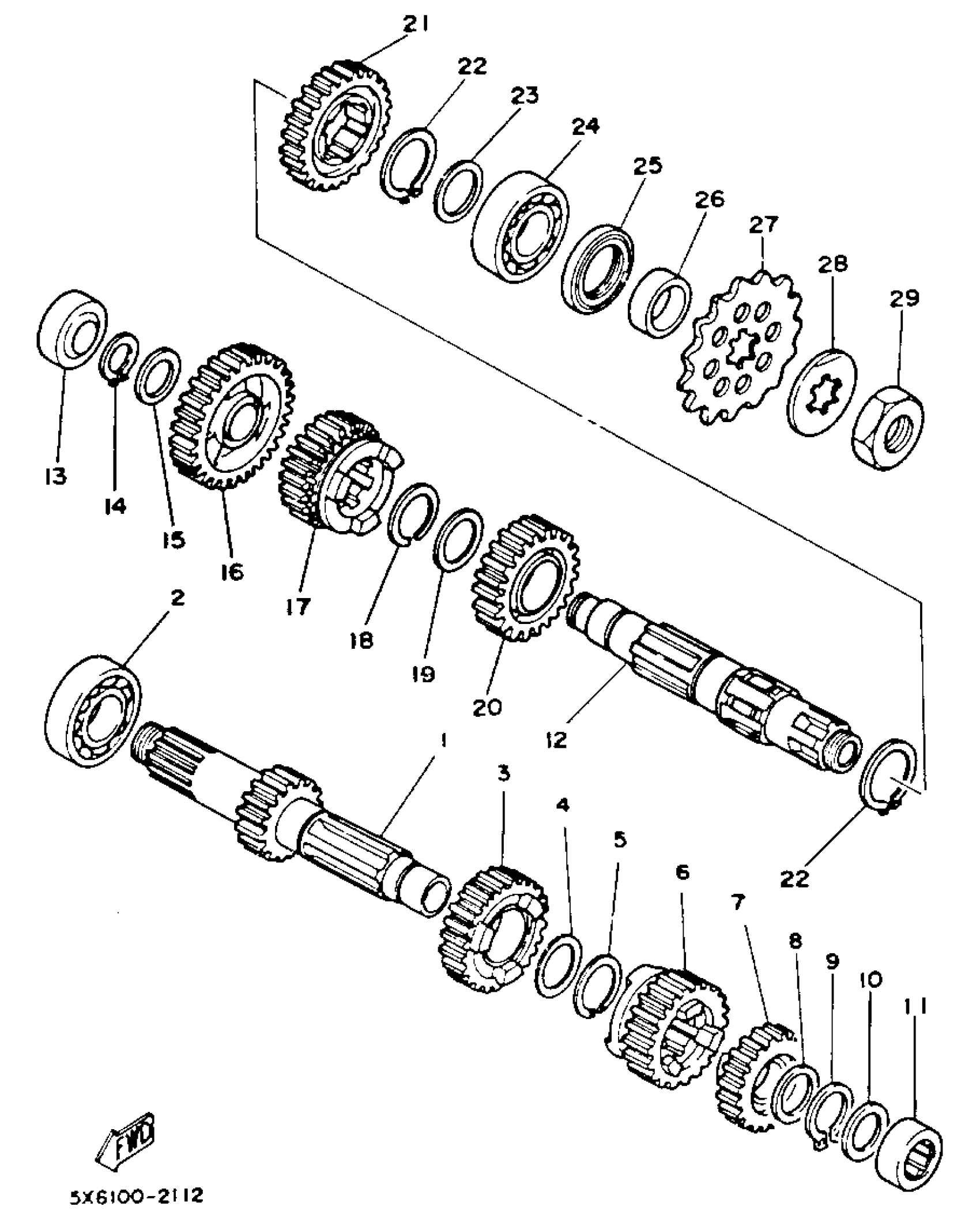

Yamaha YZ490N (YZ490N) 1985 TRANSMISSION Diagram

AXLE, MAIN

5X6-17411-01-00

Unavailable

BEARING (23X)

93300-20501-00

$70.99

GEAR, 4TH PINION (24T)

5X6-17141-00-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

$8.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 3RD PINION (22T)

5X6-17131-00-00

Unavailable

GEAR, 2ND PINION

5X6-17121-01-00

Unavailable

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

CIRCLIP (525)

93410-20038-00

$3.76

WASHER PLATE 328171160000

90201-20276-00

$8.49

BEARING (2X7)

93311-62035-00

$57.99

AXLE, DRIVE

5X6-17421-00-00

Unavailable

BEARING (2X7)

93311-62035-00

$57.99

CIRCLIP (525)

93410-20038-00

$3.76

WASHER PLATE 168171160000

90201-20278-00

$10.49

GEAR, 1ST WHEEL (28T)

5X6-17211-00-00

Unavailable

UNAVAILABLE IN PRICE BOOK

5X7-17241-00-00

Unavailable

CIRCLIP (4L0)

93440-25084-00

$5.60

WASHER, PLATE(59W)

90201-253K0-00

$8.49

GEAR, 3RD WHEEL (23T)

5X6-17231-00-00

Unavailable

GEAR, 2ND WHEEL (25T)

5X6-17221-00-00

Unavailable

CIRCLIP(4A6)

99009-30400-00

Unavailable

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

BEARING (23X)

93300-20501-00

$70.99

OIL SEAL (697)

93102-32M07-00

Unavailable

COLLAR (2K7)

90387-25663-00

Unavailable

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

SPROCKET, DRIVE

93834-14051-00

Unavailable

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

WASHER, LOCK (23X)

90215-21239-00

Unavailable

NUT (2K7)

90179-20255-00

Unavailable
