Description

Price

1

SEMI-DOUBLE SEAT ASSEMBLY

39X-W2473-20-00

Unavailable

2

. COVER, DOUBLE SEAT

23X-24731-20-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$8.99

4

DAMPER, SEAT

509-24724-00-00

$10.99

5

BRACKET,SEAT

39W-24738-00-00

Unavailable

6

BOLT, FLANGE

95817-06012-00

$1.43

7

. BRACKET, SEAT

5X6-24748-10-00

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

BOLT(JA9)

90101-08691-00

$4.29

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

WASHER, PLATE (12X)

90201-087F0-00

$5.60

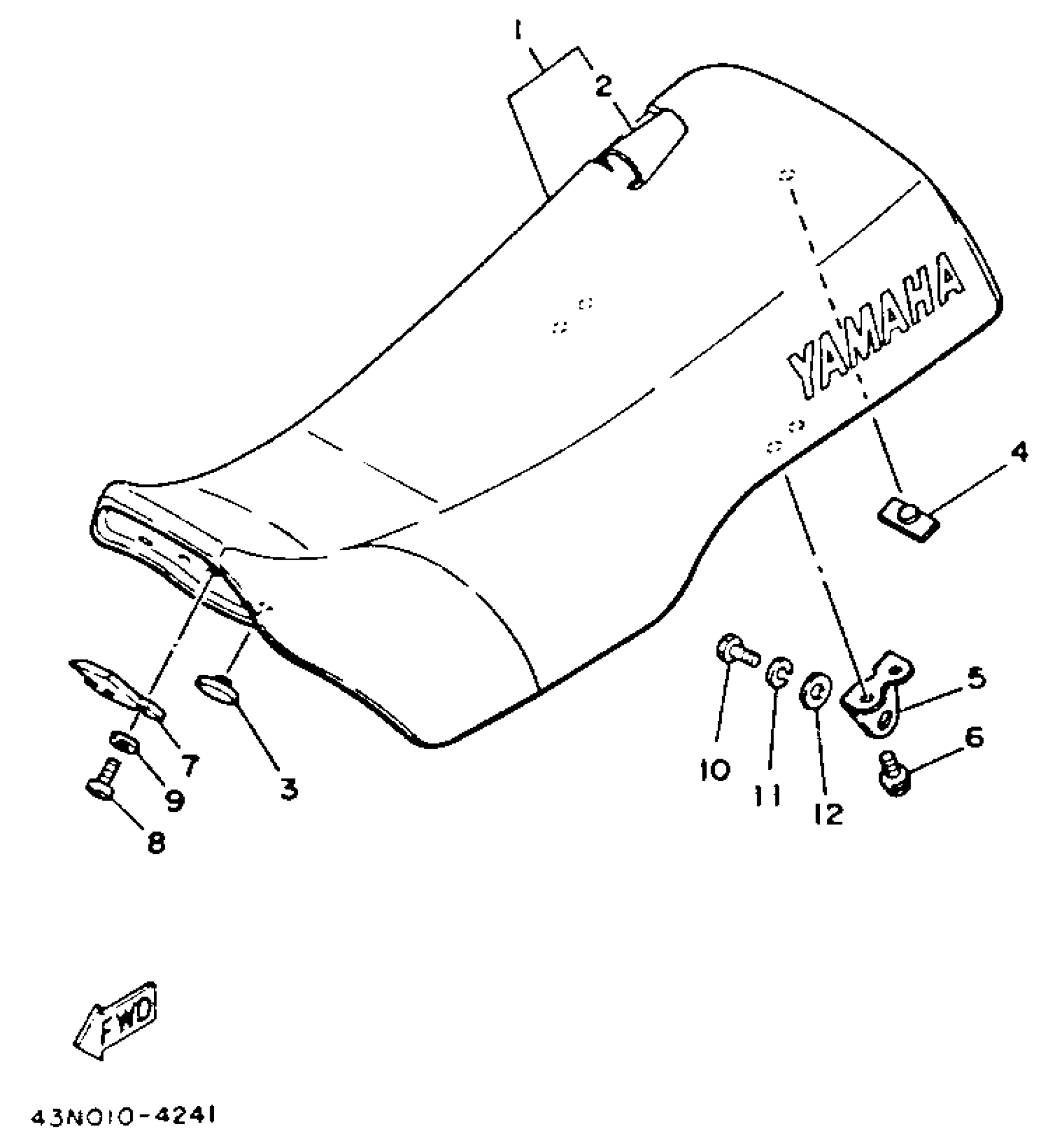

Yamaha YZ490N (YZ490N) 1985 SEAT Diagram

SEMI-DOUBLE SEAT ASSEMBLY

. COVER, DOUBLE SEAT

PAD, SEAT

DAMPER, SEAT

BRACKET,SEAT

BOLT, FLANGE

. BRACKET, SEAT

BOLT (661)

WASHER, PLATE (4H7)

BOLT(JA9)

YBS67-8 WASHER, SPRING

WASHER, PLATE (12X)
