REAR SUSPENSION

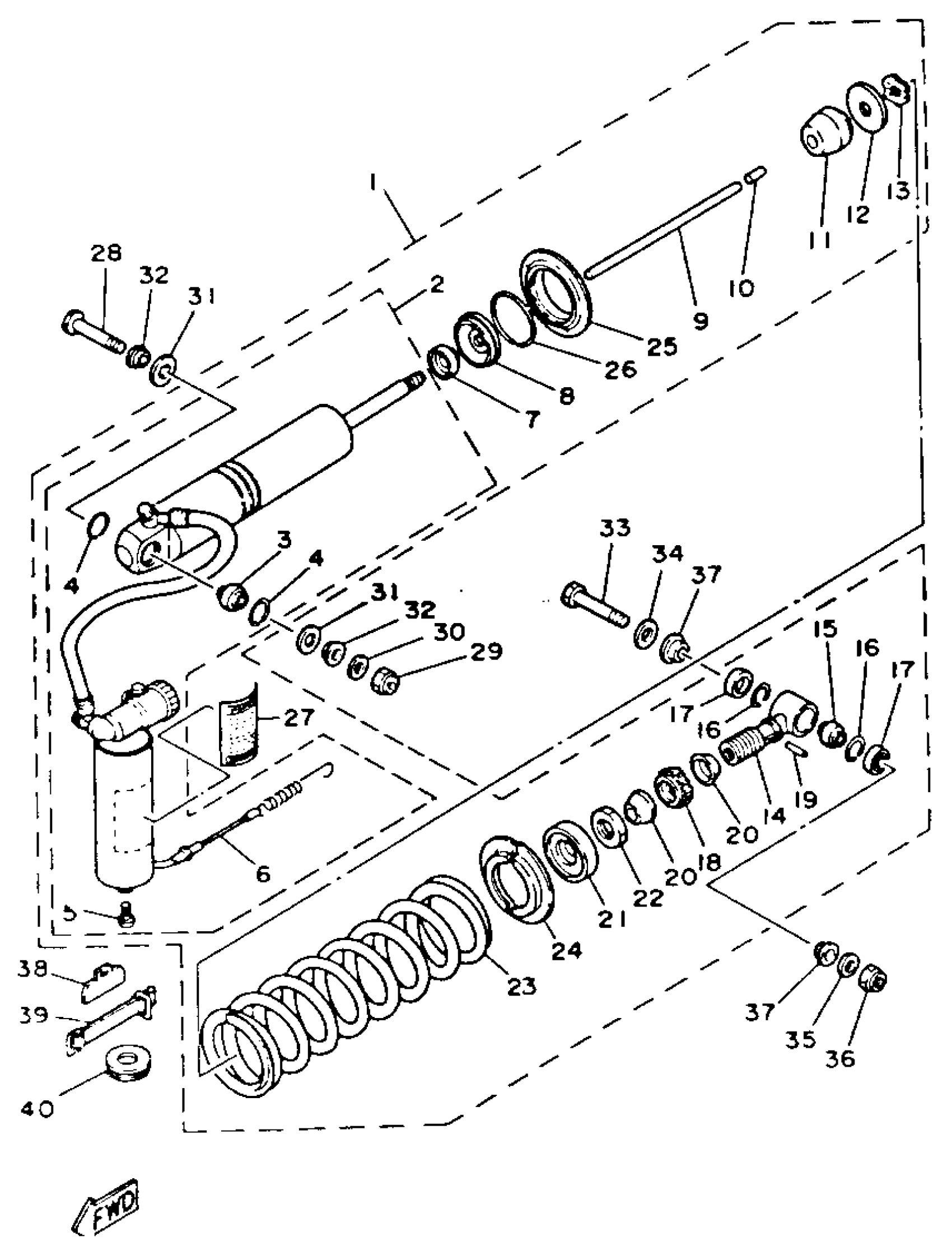

Yamaha YZ490N (YZ490N) 1985 REAR SUSPENSION Diagram
#
1
SHOCK ASSEMBLY, REAR
(57H-22210-00-6W)
Unavailable
2
DAMPER SUB ASSEMBLY
(57H-22401-00-00)
Unavailable
5
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
6
.. CABLE, CONTROL 1
56A-22463-00-00
Unavailable
7
SEAL,DUST
23X-22475-01-00
Unavailable
8
. CAP, CASE 001
26A-22472-00-00
Unavailable
9
ROD,PUSH
56A-22489-00-00
Unavailable
10
. PIN, DOWEL
93604-21193-00
Unavailable
11
. BUMP, STOP
39X-22493-00-00
Unavailable
12
. SUPPORT, BUMP STOP
3R4-22228-00-00
Unavailable
13
. WASHER, WAVE
90206-14067-00
Unavailable
14
. UPPER BRACKET SUB-ASSEMBLY
39X-22409-00-00
Unavailable
17
OIL SEAL (23X)
93104-18077-00
Unavailable
18
. NUT, ADJUSTING
5X3-22497-00-00
Unavailable
19
. PIN, DOWEL
93604-26132-00
Unavailable
20
. COVER
3R4-22221-01-00
Unavailable
21
. SEAT, SPRING UPPER
23X-22213-00-00
Unavailable
22
NUT, HEXAGON (29L)
90170-20320-00
Unavailable
23
. SPRING, MXS STD
39X-22212-00-6W
Unavailable
23
. SPRING, MXS HARD
39X-22212-20-6W
Unavailable
23
. SPRING, SHOCK REAR
57H-22212-20-6W
Unavailable
24
. GUIDE, SPRING 1
23X-22214-00-00
Unavailable
25
. SEAT, SPRING LOWER
23X-22223-00-00
Unavailable
26
. CIRCLIP
93440-51103-00
Unavailable
27
. LABEL, CAUTION
56A-22499-00-00
Unavailable
28
BOLT
90109-10704-00
Unavailable
29
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
30
WASHER (7A9)
90201-100F7-00
Unavailable
31
COVER
23X-22211-00-00
Unavailable
32
COLLAR (23X)
90387-127G8-00
Unavailable
33
BOLT
90109-10700-00
Unavailable
34
WASHER, PLATE
90201-12027-00
Unavailable
35
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
36
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
37
COLLAR (23X)
90387-126H8-00
Unavailable
38
DAMPER, SUB TANK
56A-22261-00-00
Unavailable
39
HOLDER, SUB TANK
24X-22262-00-00
Unavailable
40
GROMMET
90480-25381-00
Unavailable
