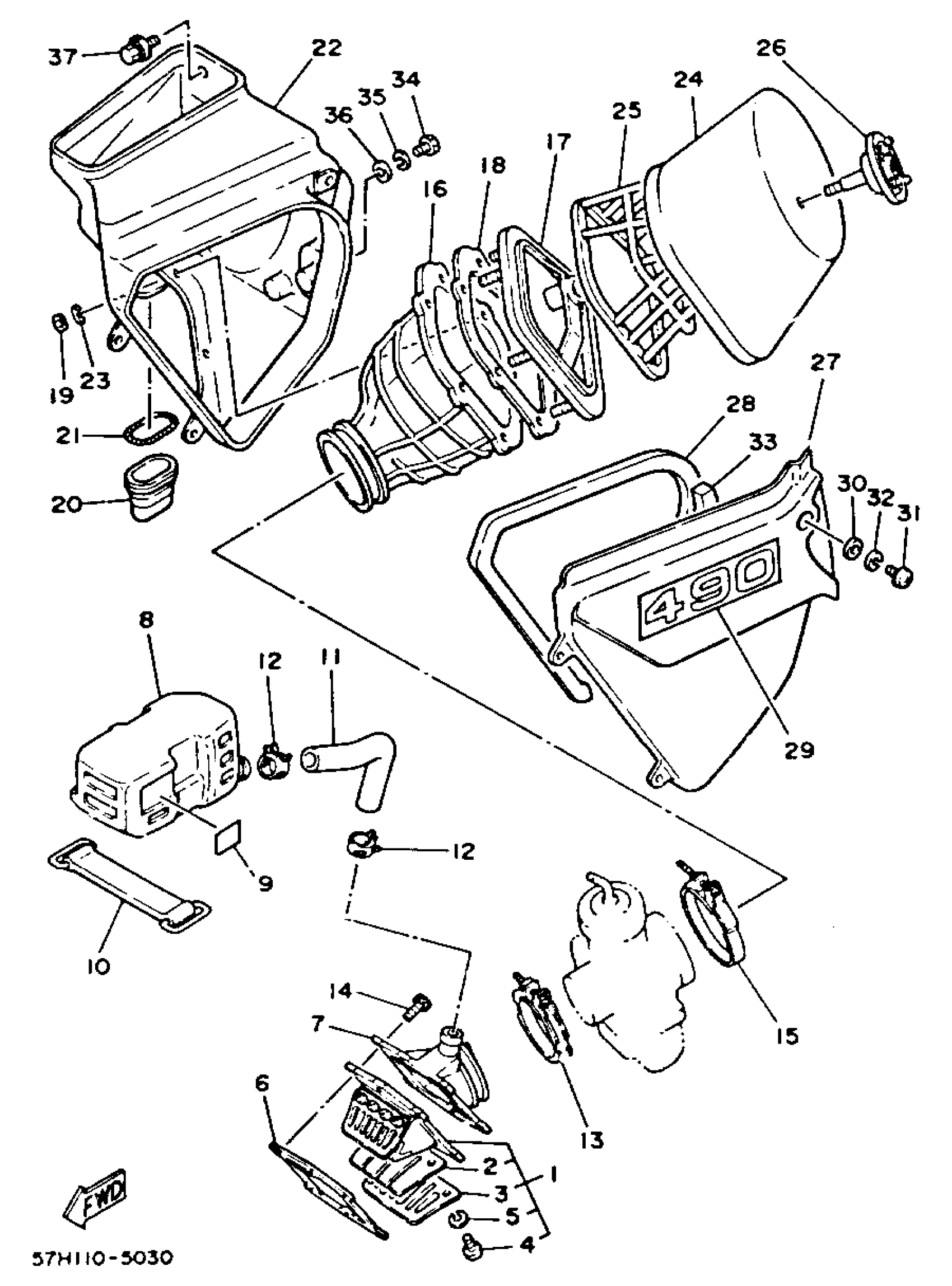

Yamaha YZ490N (YZ490N) 1985 INTAKE Diagram

#

Description

Price

1

REED VALVE ASSEMBLY

39X-13610-00-00

Unavailable

2

. REED, VALVE

39X-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

39X-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

39X-13621-11-00

Unavailable

7

JOINT, CARBURETOR

40T-13565-00-00

Unavailable

8

CHAMBER, AIR

40T-13581-00-00

Unavailable

9

EMBLEM

4V3-1441K-00-00

Unavailable

10

BAND

26A-13575-00-00

Unavailable

11

PIPE, MANIFOLD

40T-13584-00-00

Unavailable

12

CLIP(4HC)

90467-23177-00

$4.24

13

BAND

86M-13575-00-00

$19.49

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

CLAMP, HOSE

90460-74254-00

Unavailable

16

JOINT, AIR CLNR 1

(40T-14453-00-00)

Unavailable

17

HOLDER, GUIDE

56A-14459-00-00

Unavailable

18

SEAL

39X-14462-00-00

Unavailable

19

NUT, U

95617-05100-00

Unavailable

20

SEAL

39K-14457-00-00

Unavailable

21

SPRING, COMPRESSION

90504-03033-00

Unavailable

22

AIR CLEANER CASE COMP.

39X-W1441-00-00

Unavailable

23

. WASHER, PLAIN

92990-05200-00

Unavailable

24

ELEMENT, AIR CLEANER

39X-14451-00-00

Unavailable

25

GUIDE, ELEMENT

39X-14458-00-00

Unavailable

26

PLATE, ELEMENT FITTING

56A-14468-00-00

Unavailable

27

CAP, CLEANER CASE 1

43N-14412-00-00

Unavailable

28

SEAL

39W-14452-00-00

Unavailable

29

EMBLEM

40T-21737-10-00

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

31

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

SEAL

39X-14452-00-00

Unavailable

34

BOLT (661)

97013-06012-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

37

UNAVAILABLE IN PRICE BOOK

90119-06560-0

Unavailable
