Description

Price

1

FENDER, FRONT

5X6-21511-11-00

$43.99

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

3

COLLAR (8G8)

90387-06681-00

$9.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER(6TA)

92907-06700-00

$1.86

6

FENDER, REAR

3R4-21611-10-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER(6TA)

92907-06700-00

$1.86

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

GUARD, MUD

39X-21620-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-01-00

$7.99

12

GUARD, FLAP

39X-21642-00-00

$80.99

13

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

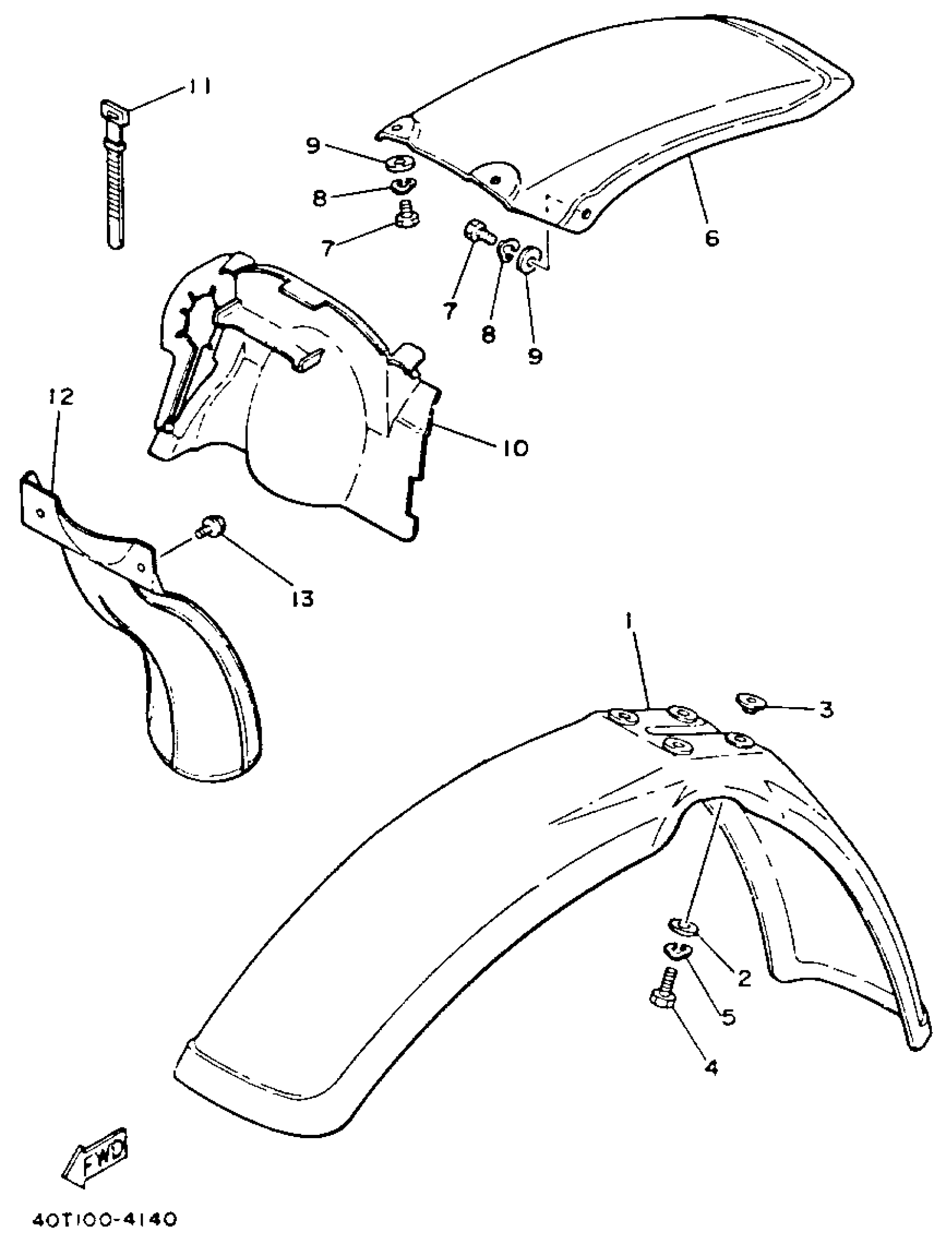

Yamaha YZ490N (YZ490N) 1985 FENDER Diagram

FENDER, FRONT

WASHER, PLATE (583 REAR FENDER

COLLAR (8G8)

BOLT(3DM)

WASHER(6TA)

FENDER, REAR

BOLT, HEXAGON DEEP RECESS

WASHER(6TA)

WASHER, PLATE (583 REAR FENDER

GUARD, MUD

BAND, SWITCH CORD

GUARD, FLAP

BOLT, WITH WASHER(55K)
