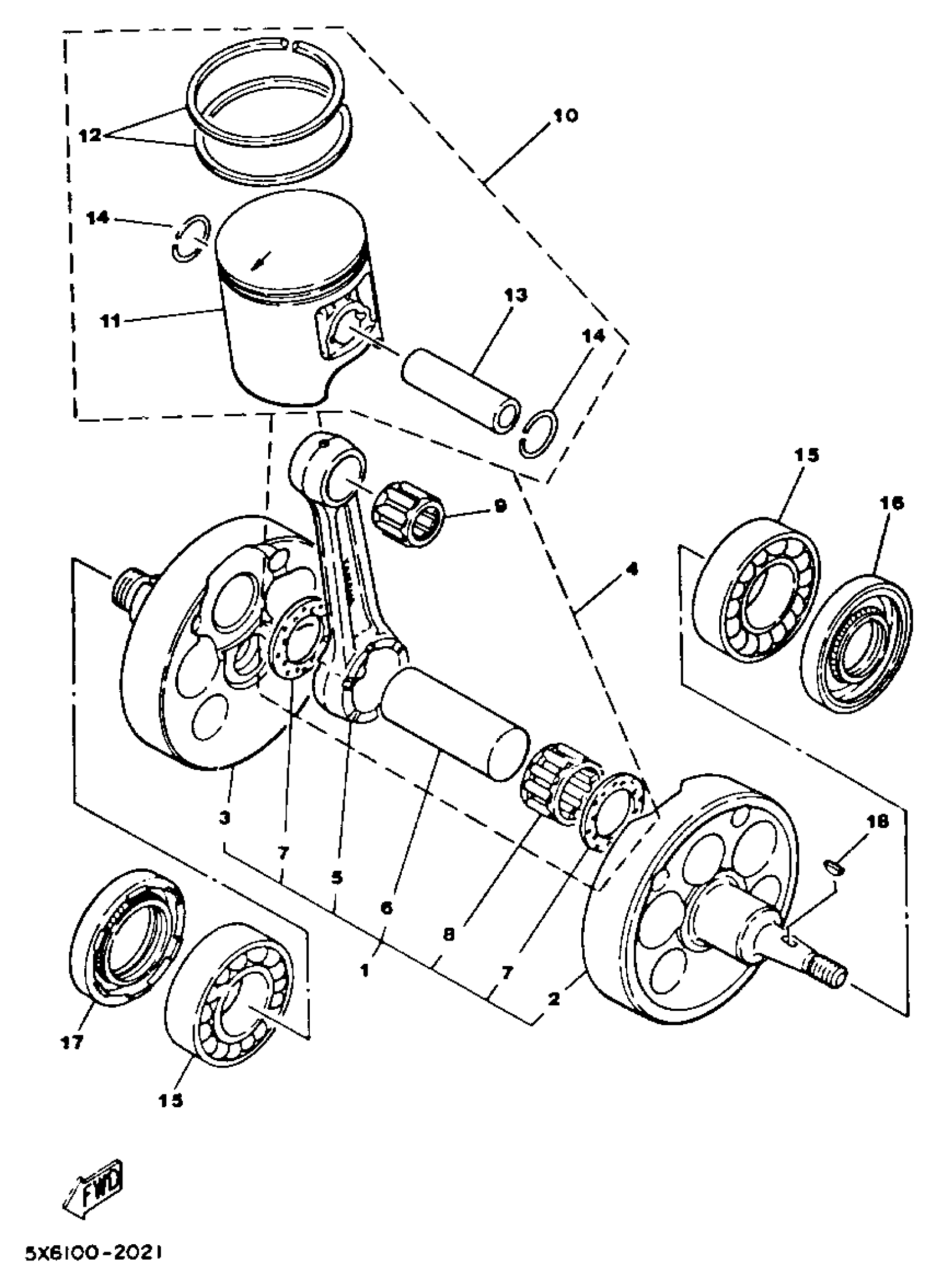

Yamaha YZ490N (YZ490N) 1985 CRANKSHAFT-PISTON Diagram

CRANKSHAFT ASSEMBLY (3R5-11400-00) (3R5-11400-00)

40T-11400-00-00

Unavailable

. CRANK 1

40T-11412-00-00

Unavailable

. CRANK 2

40T-11422-00-00

Unavailable

CONNECTING ROD ASSY

3R5-11650-00-00

Unavailable

ROD, CONNECTING

3R5-11651-00-00

$197.99

PIN, CRANK

3R8-11681-00-00

$46.99

WASHER 275116850000

90209-25085-00

$12.49

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

PISTON KIT STD

40T-11630-00-00

Unavailable

. PISTON STD

40T-11631-00-93

Unavailable

. PISTON RING SET STD

5X6-11601-00-00

Unavailable

PIN, PISTON

275-11633-00-00

$35.99

CIRCLIP (2F1)

93450-19052-00

$7.49

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

OIL SEAL(38V)

93103-30150-00

Unavailable

OIL SEAL (434)

93103-40091-00

Unavailable

PISTON KIT 1ST O/S

40T-11630-10-00

Unavailable

PISTON KIT 2ND O/S

40T-11630-20-00

Unavailable

PISTON KIT 3RD (3RD O/S)

40T-11630-30-00

Unavailable

PISTON KIT (4TH O/S)

40T-11630-40-00

Unavailable

. PISTON 1ST O/S (25MM)

40T-11635-00-00

Unavailable

. PISTON 2ND O/S (50MM)

40T-11636-00-00

Unavailable

. PISTON 3RD O/S (75MM)

40T-11637-00-00

Unavailable

. PISTON 4TH O/S (100MM)

40T-11638-00-00

Unavailable

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

Unavailable

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

Unavailable

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

Unavailable

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
