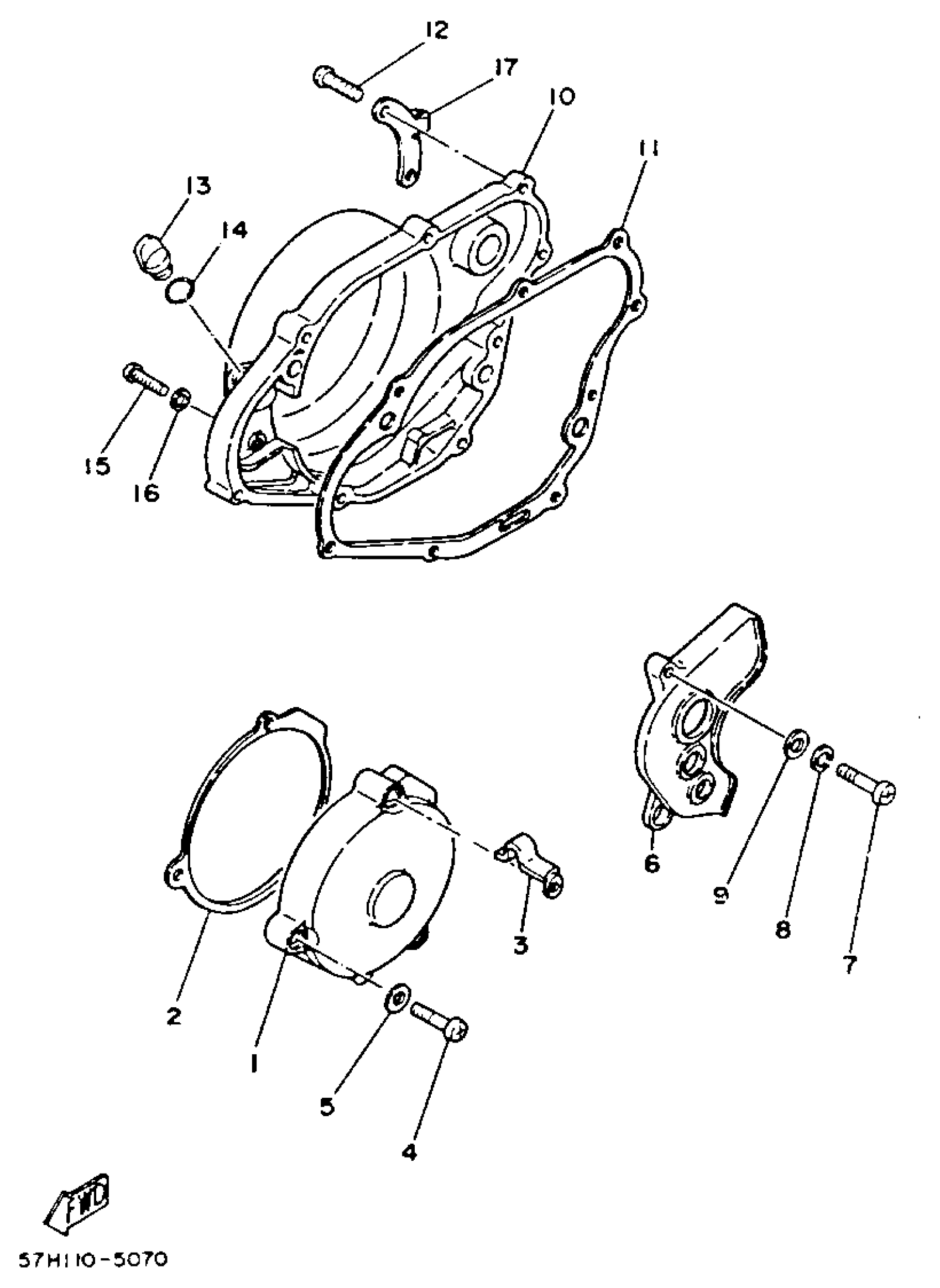

Yamaha YZ490N (YZ490N) 1985 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

40T-15411-00-00

Unavailable

2

GASKET, CRANK CASE COVER

4V5-15451-00-00

Unavailable

3

CLAMP

90465-06247-00

Unavailable

4

SCREW, PAN

98507-06035-00

$8.49

5

WASHER(6TA)

92907-06600-00

$2.72

6

COVER, CRANKCASE 2

23X-15421-00-00

$45.99

7

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER(6TA)

92907-06600-00

$2.72

10

COVER, CRANKCASE 3

40T-15431-00-00

Unavailable

11

GASKET, CRANKCASE COVER 3

3R4-15462-11-00

$34.99

12

BOLT,SOCKET

91317-06025-00

$5.60

13

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

14

O-RING (26H)

93210-14579-00

$7.49

15

SCREW, PAN

98517-06008-00

$8.49

16

GASKET 838153840000

90430-06016-00

Unavailable

17

HOLDER

56A-15378-00-00

Unavailable
