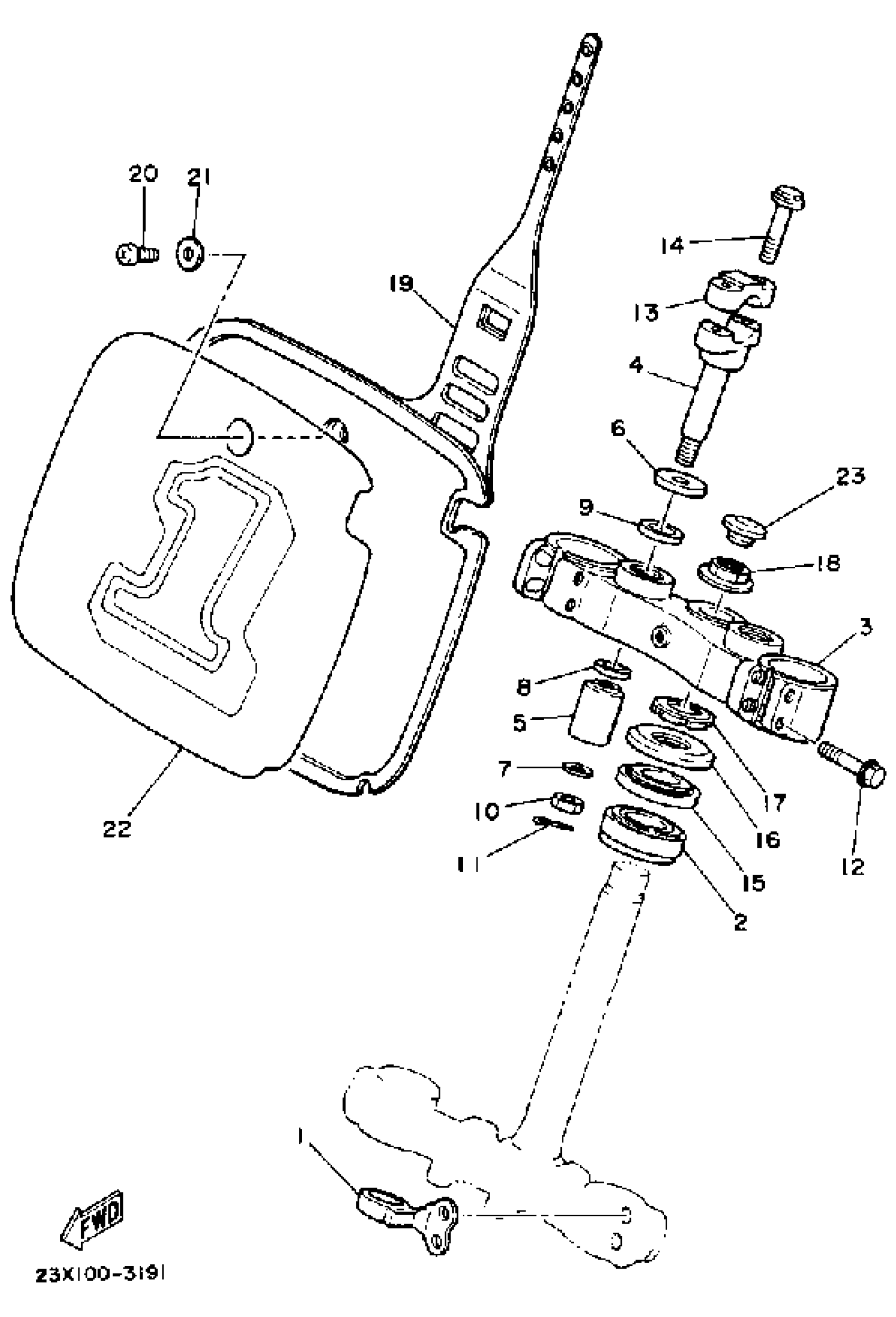

Find the part on the Steering diagram for your 1984 Yamaha YZ490L (YZ490L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha YZ490L (YZ490L) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

1
Out of stock

3

CROWN, HANDLE

40T-W2341-00-98

1
Out of stock

4

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

5

BUSHING,REAR ARM

307-22123-00-00

1
Out of stock

6

WASHER, PLATE

90201-123E8-00

1
Out of stock

7

WASHER, PLATE (3J6)

90201-100A1-00

1
Out of stock

8

COLLAR (4V4)

90387-121E8-00

1
Out of stock

9

WASHER, PLATE (462)

90202-14077-00

1
Out of stock

10

NUT, U

90185-10037-00

1
Out of stock

11

PIN, COTTER

91490-20025-00

1
Out of stock

12

BOLT, FLANGE

95814-08040-00

1
Out of stock

13

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

14

BOLT, FLANGE

95817-08035-00

1
Out of stock

15

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

16

COVER, BALL RACE 2

1W1-23416-00-00

—
Out of stock

17

NUT

90179-25004-00

—
Out of stock

18

NUT

90179-22330-00

1
Out of stock

19

PLATE, NUMBER

5X6-23485-01-00

1
Out of stock

20

SCREW, PAN

98507-06014-00

—
Out of stock

21

WASHER, PLATE (583 REAR FENDER

90201-06571-00

—
Out of stock

22

EMBLEM

5X6-23395-00-00

1
Out of stock

23

CAP

34K-2319U-00-00

1
Out of stock
