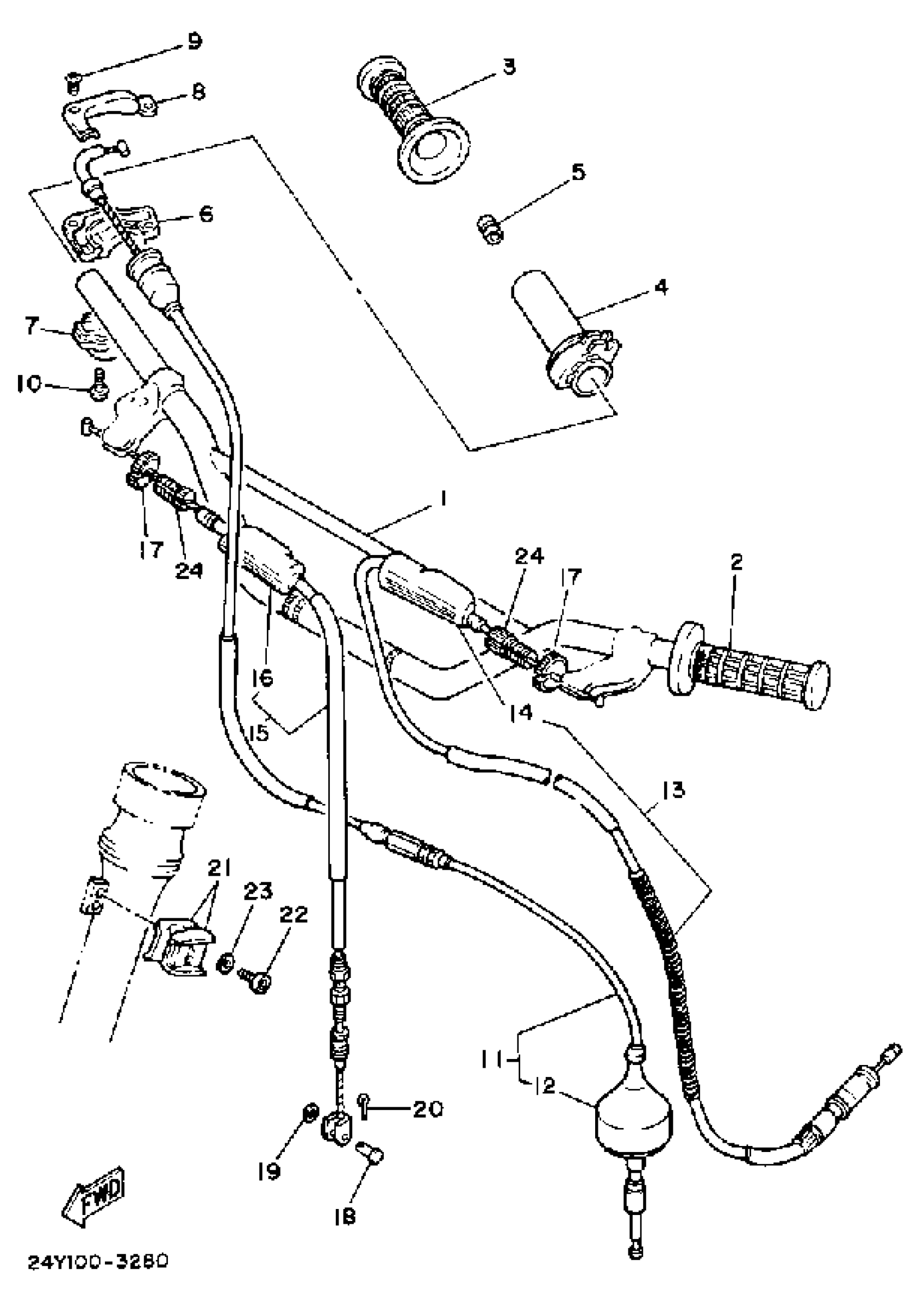

Yamaha YZ490L (YZ490L) 1984 STEERING HANDLE - CABLE Diagram

#

Description
Price

1

HANDLEBAR

1LN-26111-00-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$33.99

3

GRIP (R.H)

1LX-26242-01-00

$34.99

4

TUBE, THROTTLE GUIDE

23X-26243-01-00

$15.49

5

PLUG(2GU)

90338-12192-00

$8.49

6

CAP, GRIP UPPER

23X-26281-01-00

$29.99

7

CAP, GRIP UNDER

431-26282-03-00

$38.99

8

CAP, WIRE

5X2-2628H-01-00

$27.99

9

SCREW, FLAT

98707-04012-00

$2.18

10

SCREW, PAN HEAD

90157-05M19-00

Unavailable

11

CABLE, THROTTLE 1

40T-26311-00-00

Unavailable

12

CAP, RUBBER

510-26329-01-00

$7.99

13

CABLE, CLUTCH

40T-26335-00-00

Unavailable

14

COVER, LEVER

498-26372-00-00

Unavailable

15

CABLE, BRAKE

5X6-26341-00-00

Unavailable

16

COVER, LEVER

498-26372-00-00

Unavailable

17

NUT

90179-08401-00

Unavailable

18

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

CLAMP(26A)

90465-16258-00

Unavailable

22

BOLT, SOCKET

91314-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BOLT (23X)

90123-08090-00

Unavailable
