1984 Yamaha YZ490L (YZ490L) Intake Diagram

← All diagrams

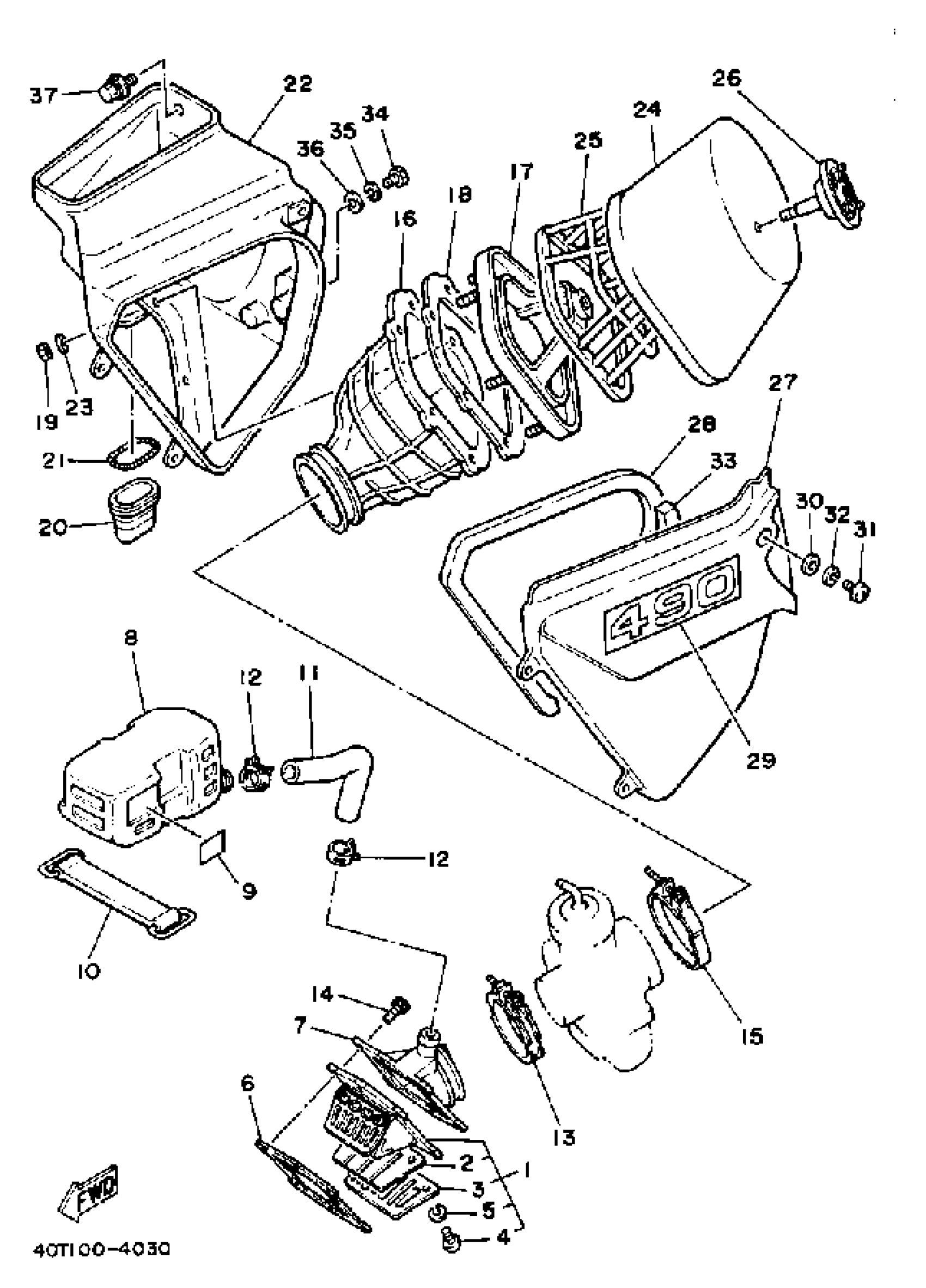

Find the part on the Intake diagram for your 1984 Yamaha YZ490L (YZ490L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha YZ490L (YZ490L) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

39X-13610-00-00

1
Out of stock

2

. REED, VALVE

39X-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

39X-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

GASKET, VALVE SEAT

39X-13621-11-00

1
Out of stock

7

JOINT, CARBURETOR

40T-13565-00-00

1
Out of stock

8

CHAMBER, AIR

40T-13581-00-00

1
Out of stock

9

EMBLEM

4V3-1441K-00-00

1
Out of stock

10

BAND

26A-13575-00-00

1
Out of stock

11

PIPE, MANIFOLD

40T-13584-00-00

1
Out of stock

12

CLIP(4HC)

90467-23177-00

1

$3.05

In stock

13

BAND

86M-13575-00-00

1

$16.45

In stock

14

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

15

CLAMP, HOSE

90460-74254-00

1
Out of stock

16

JOINT, AIR CLNR 1

(40T-14453-00-00)

1
Out of stock

17

HOLDER, GUIDE

39X-14459-00-00

1
Out of stock

18

SEAL

39X-14462-00-00

1
Out of stock

19

NUT, U

95617-05100-00

—

$6.68

In stock

20

SEAL

39K-14457-00-00

1
Out of stock

21

SPRING, COMPRESSION

90504-03033-00

1
Out of stock

22

AIR CLEANER CASE COMP.

39X-W1441-00-00

1
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

ELEMENT, AIR CLEANER

39X-14451-00-00

1
Out of stock

25

GUIDE, ELEMENT

39X-14458-00-00

1
Out of stock

26

PLATE, ELEMENT FTTTING (4V2-14468-01)

4V2-14468-02-00

1
Out of stock

27

CAP, CLEANER CASE 1

39X-14412-00-00

1
Out of stock

28

SEAL

39W-14452-00-00

1
Out of stock

29

EMBLEM

40T-21737-00-00

1
Out of stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

31

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

SEAL

39X-14452-00-00

1
Out of stock

34

BOLT (661)

97013-06012-00

—

$4.71

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

37

BOLT, WITH WASHER

90119-06152-00

—

$2.74

In stock
