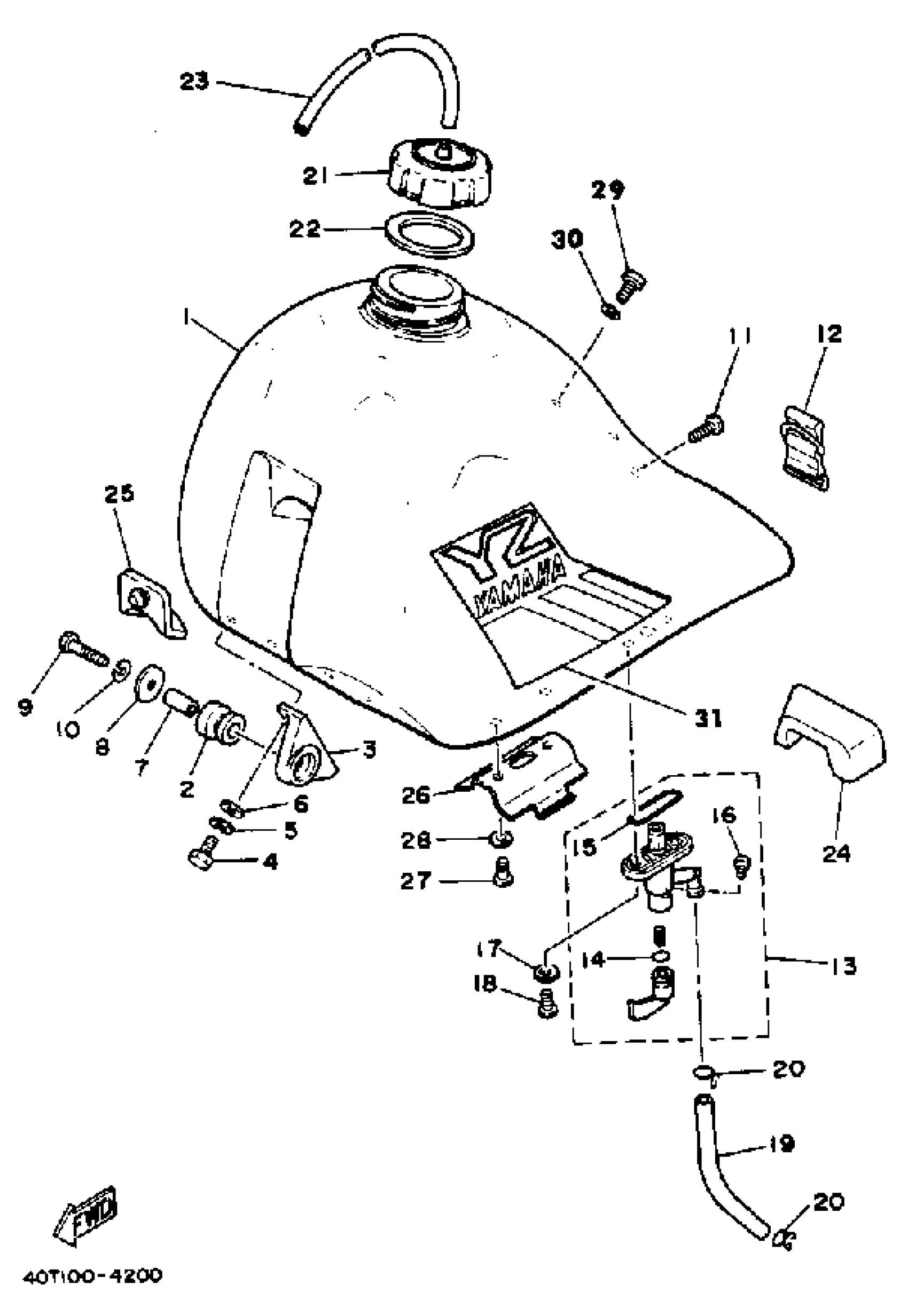

Yamaha YZ490L (YZ490L) 1984 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

40T-24110-00-00

Unavailable

2

GROMMET(4AA)

90480-18549-00

$10.49

3

HOLDER, DAMPER

5XE-24144-00-00

$23.99

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

COLLAR

90387-06387-00

Unavailable

8

WASHER, PLATE

90201-06747-00

$8.49

9

BOLT, HEXAGON

97017-06030-00

$3.61

10

WASHER, SPRING

92995-06100-00

Unavailable

11

SCREW(3JM)

90149-06306-00

$8.49

12

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

13

FUEL COCK ASSY

2K5-24500-00-00

$86.99

14

GASKET, BODY

214-24512-00-00

$30.99

15

O-RING

1A0-24512-00-00

Unavailable

16

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

HOSE (L370)

90445-112E1-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

BODY, CAP

5X7-24611-01-00

Unavailable

22

PACKING, CAP

5X7-24612-00-00

Unavailable

23

HOSE (L420)

90445-092K1-00

Unavailable

24

DAMPER, LOCATING 1

39X-24181-00-00

Unavailable

25

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable

26

STAY,CHAMBER

4AA-2415F-00-00

Unavailable

27

SCREW PAN HEAD

98580-06010-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

$2.80

29

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

$2.80

31

GRAPHIC SET

(40T-24250-00-00)

Unavailable
