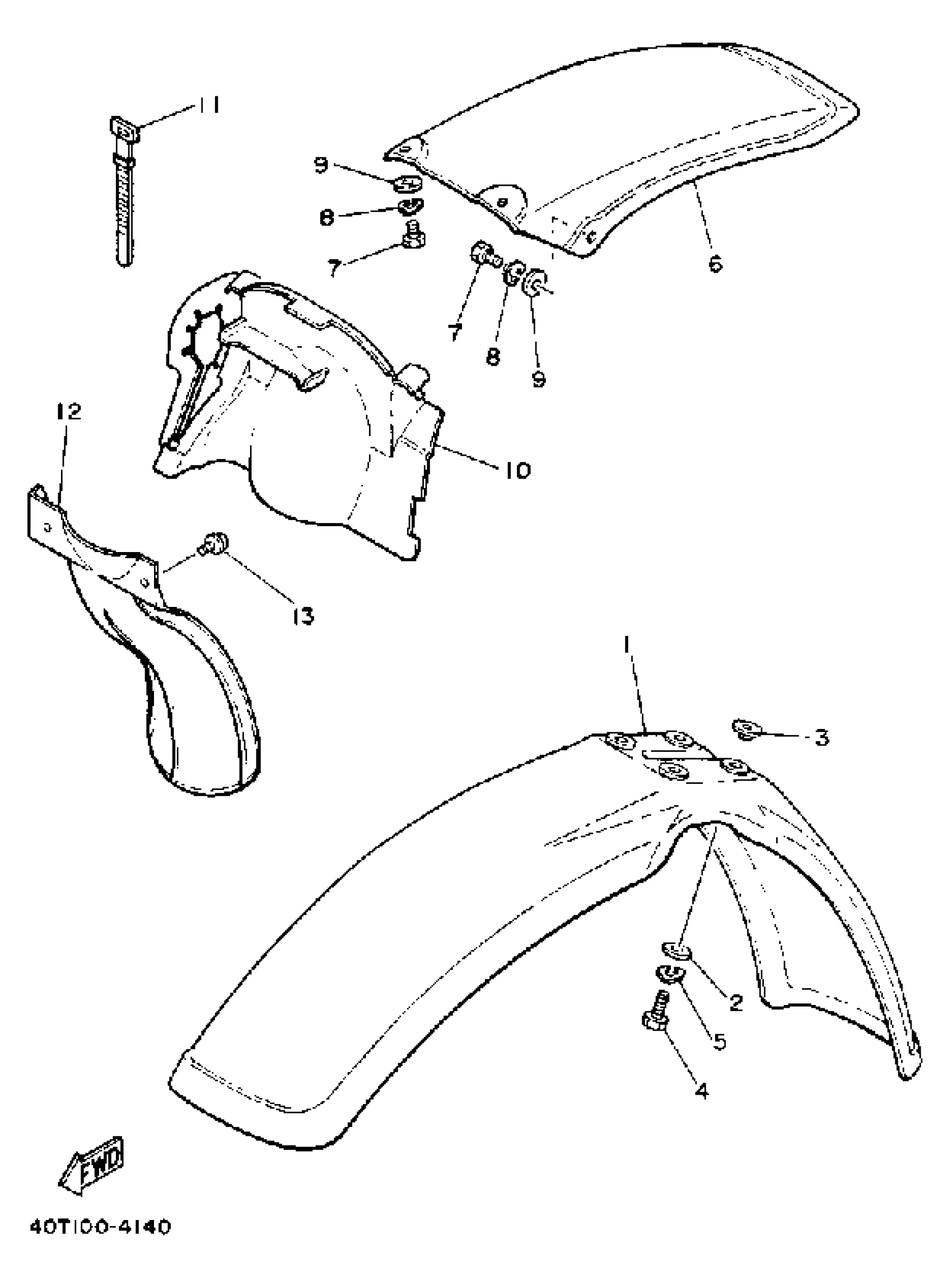

Yamaha YZ490L (YZ490L) 1984 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$43.99

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

3

COLLAR (8G8)

90387-06681-00

$9.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER(6TA)

92907-06700-00

$1.86

6

FENDER, REAR

3R4-21611-00-00

$86.99

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER(6TA)

92907-06700-00

$1.86

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

GUARD, MUD

39X-21620-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-01-00

$7.99

12

GUARD, FLAP

39X-21642-00-00

$80.99

13

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29
