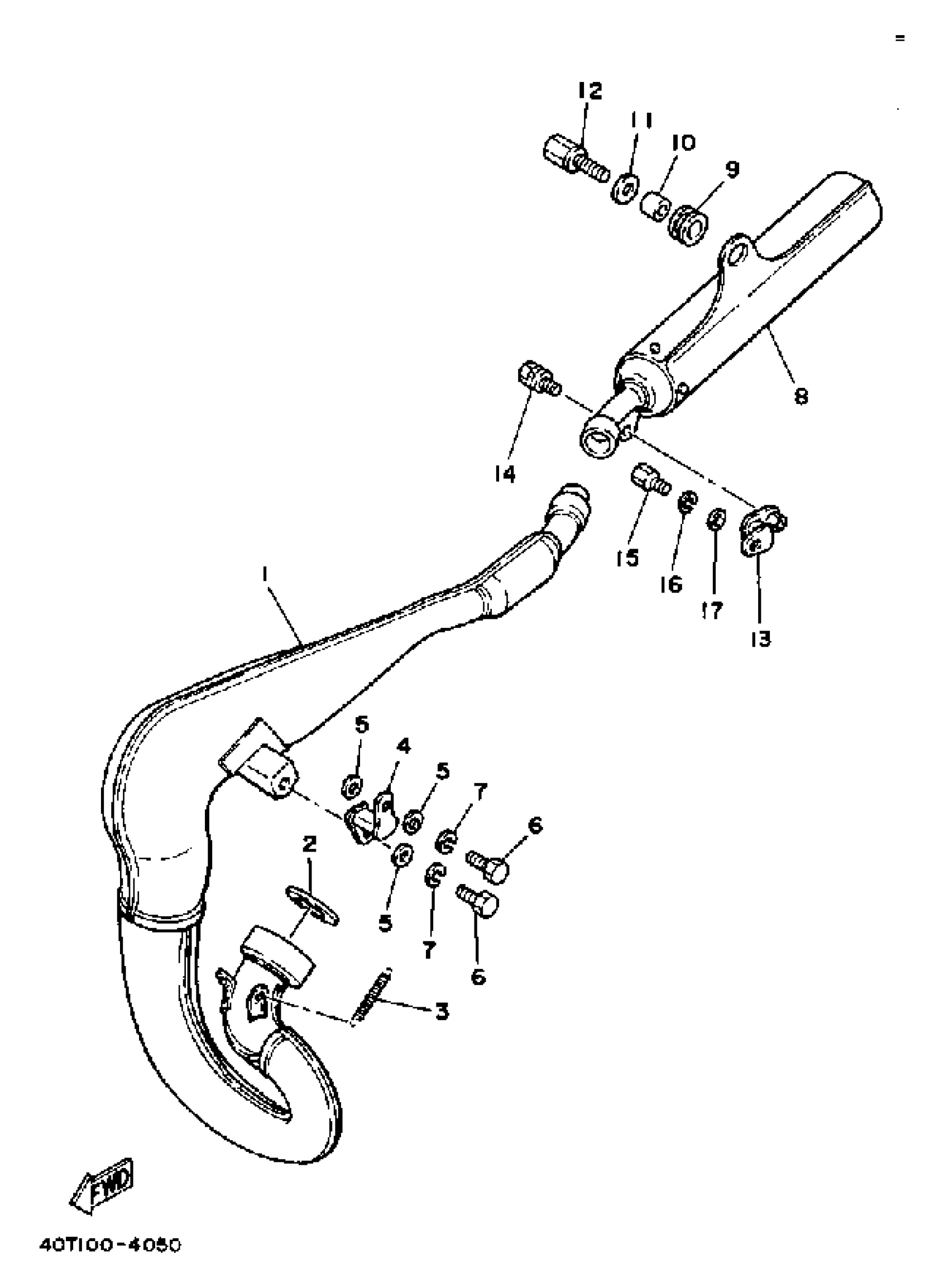

Yamaha YZ490L (YZ490L) 1984 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

40T-14610-00-00

Unavailable

GASKET,EXST PIPE

40T-14613-10-00

Unavailable

SPRING, TENSION (1W4)

90507-20030-00

$14.99

STAY, MUFFLER 1

40T-14771-00-00

Unavailable

WASHER, PLATE (12X)

90201-087F0-00

$5.60

BOLT(JA9)

90101-08691-00

$4.29

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

SILENCER, EXHAUST

40T-14753-01-00

Unavailable

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

COLLAR

90387-081A3-00

Unavailable

WASHER, PLATE (1A0)

90201-08612-00

$8.49

BOLT, HEXAGON (2X4)

90109-08512-00

$11.49

STAY, MUFFLER 1

565-14771-01-00

$18.49

BOLT (3R4)

90109-06551-00

$21.99

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable
