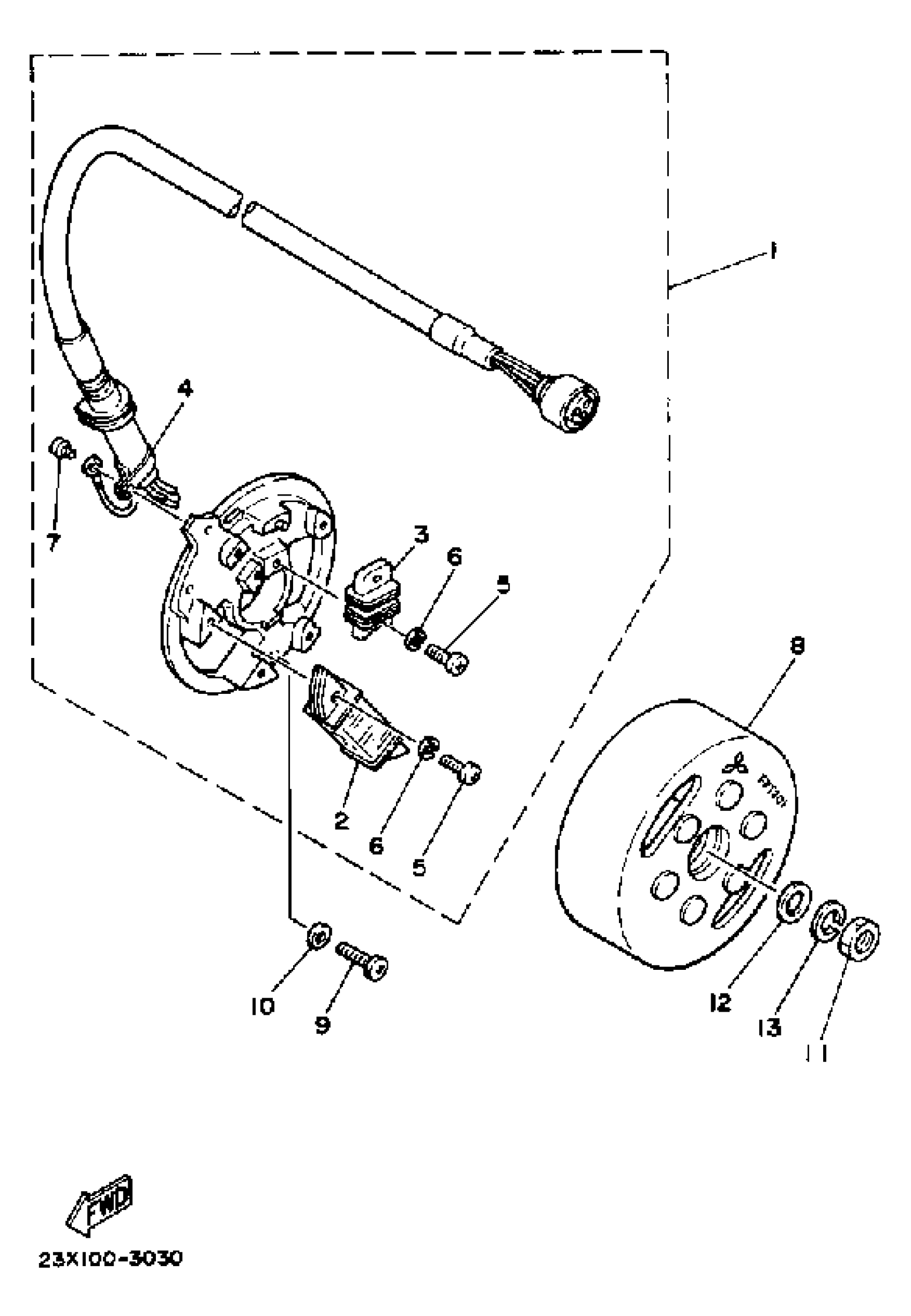

Yamaha YZ490L (YZ490L) 1984 A - C - GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

23X-85510-21-00

Unavailable

2

. COIL, CHARGE

23X-85520-21-00

Unavailable

3

. COIL, PULSER

23X-85580-20-00

Unavailable

4

CLAMP, LEAD

104-81328-20-00

$6.99

5

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

8

ROTOR ASSEMBLY

23X-85550-20-00

Unavailable

9

SCREW, PAN

98507-06014-00

$8.49

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

NUT(55K)

90170-12347-00

$10.49

12

WASHER, PLATE (583)

90201-12593-00

$9.49

13

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49
