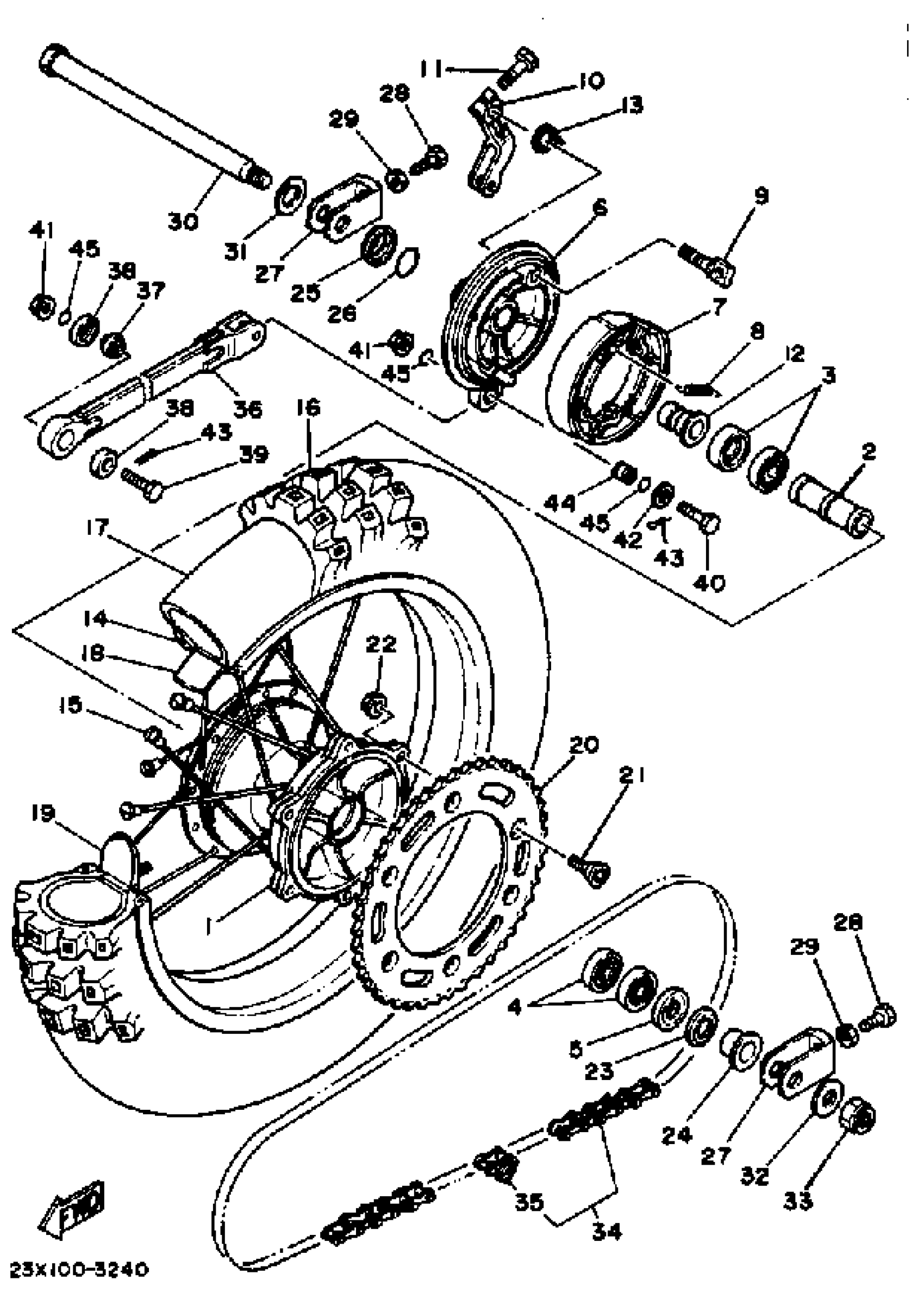

Yamaha YZ490K (YZ490) 1983 REAR WHEEL Diagram

#

Description

Price

1

HUB, REAR

23X-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

6

PLATE, BRAKE SHOE

23X-25321-00-98

Unavailable

7

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

8

SPRING (5T9)

90506-17328-00

Unavailable

9

CAMSHAFT

26A-25351-00-00

Unavailable

10

LEVER, CAMSHAFT

5X4-25355-00-00

Unavailable

11

BOLT, HEXAGON (462)

90101-06291-00

$8.49

12

COLLAR

90387-200H1-00

Unavailable

13

SPRING, TORSION

90508-29596-00

Unavailable

14

RIM (2.50-18)

94425-18356-00

Unavailable

15

SPOKE SET, REAR

23X-25304-00-00

Unavailable

16

110/100-18 M22 BS

94111-187H3-00

Unavailable

17

TUBE (5.10-18)

94251-18150-00

Unavailable

18

BAND, RIM (2J4)

94340-18086-00

Unavailable

19

SPACER, BEAD

2X5-25394-00-00

Unavailable

20

SPROCKET, DRIVEN 44T

3R4-25444-01-XX

Unavailable

20

SPROCKET, DRIVEN (45T) (39W-25445-01-00)

3R4-25445-01-XX

Unavailable

20

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

20

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

20

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

20

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

21

BOLT(1TJ)

90109-081G2-00

Unavailable

22

NUT, SELF-LOCKING

90185-08169-00

Unavailable

23

COVER, HUB DUST

4V4-25367-00-00

Unavailable

24

COLLAR

90387-2000C-00

Unavailable

25

COVER, PLATE

23X-25327-00-00

Unavailable

26

O-RING

93210-31MJ5-00

Unavailable

27

PULLER, CHAIN 1

23X-25388-00-00

Unavailable

28

BOLT

90101-08060-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

AXLE, WHEEL

23X-25381-00-00

Unavailable

31

WASHER, PLATE (90201-210G3)

90209-21243-00

Unavailable

32

WASHER, PLATE (90201-180G2)

90209-18244-00

Unavailable

33

NUT, SELF-LOCKING

90185-18009-00

Unavailable

34

CHAIN

94580-49112-00

Unavailable

35

. JOINT, CHAIN

94680-49001-00

Unavailable

36

BAR, TENSION

23X-25371-00-00

Unavailable

37

BEARING,SPECIAL

23X-253N4-09-00

Unavailable

38

OIL SEAL

93112-19006-00

Unavailable

39

BOLT, WITH HOLE

90102-08034-00

Unavailable

40

BOLT

90109-08370-00

Unavailable

41

NUT, SELF-LOCKING

90185-08169-00

Unavailable

42

.. WASHER, PLATE

92990-08600-00

Unavailable

43

PIN, COTTER (648)

91490-20015-00

Unavailable

44

COLLAR

90387-083F0-00

Unavailable

45

O-RING (648)

93210-14167-00

Unavailable
