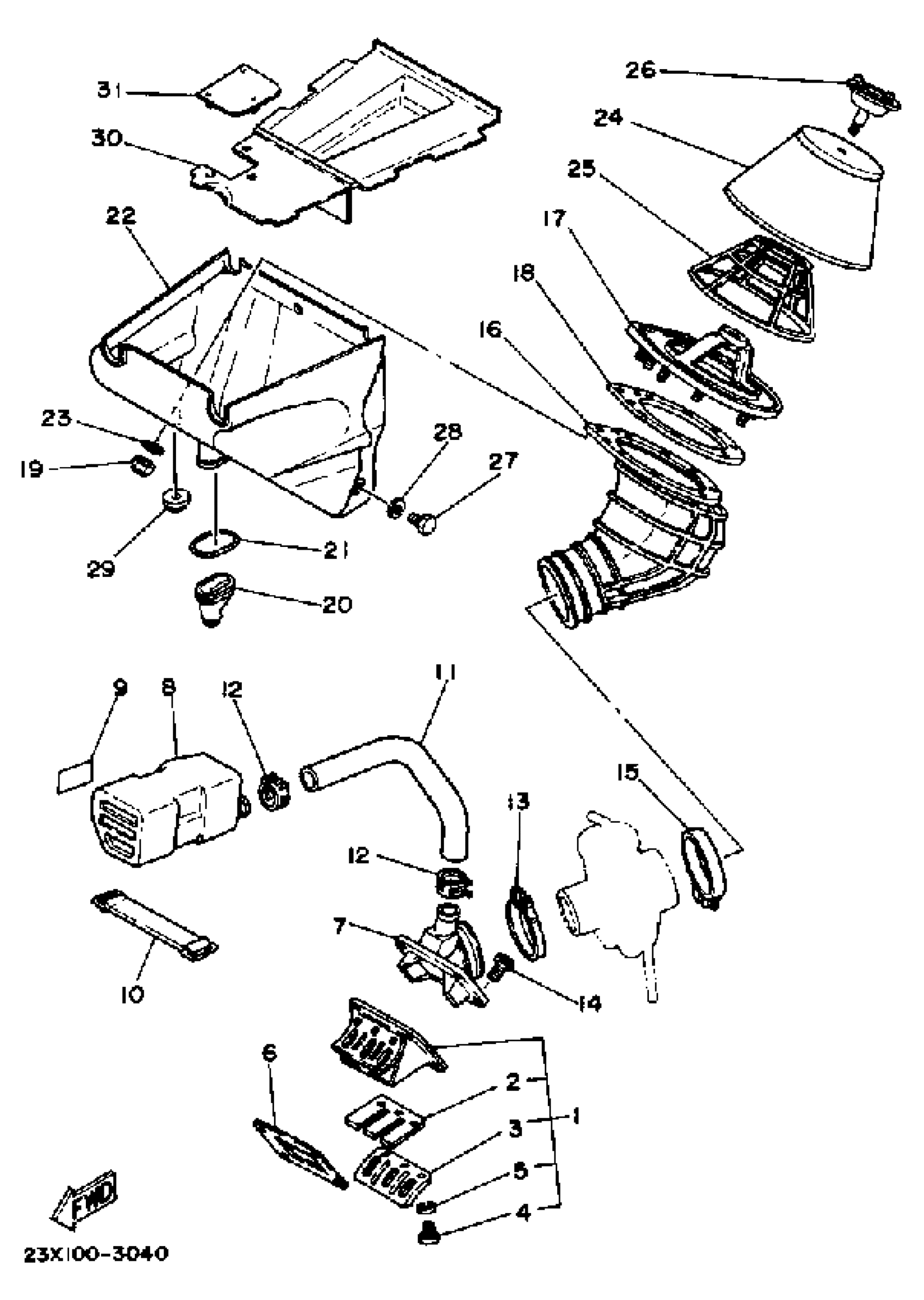

Yamaha YZ490K (YZ490) 1983 INTAKE Diagram
#
Description
Price
1
REED VALVE ASSEMBLY
3R5-13610-00-00
Unavailable
3
. STOPPER, REED VALVE
2X5-13616-00-00
Unavailable
7
JOINT, CARBURETOR
23X-13565-00-00
Unavailable
8
CHAMBER, AIR
4V6-13581-00-00
Unavailable
9
EMBLEM
4V3-1441K-00-00
Unavailable
11
PIPE, INTAKE MANIFOLD
25Y-13584-00-00
Unavailable
13
CLAMP, HOSE
90460-51109-00
Unavailable
14
BOLT,SOCKET
91317-06020-00
Unavailable
15
CLAMP, HOSE
90460-68231-00
Unavailable
16
JOINT, AIR CLNR 1
23X-14453-00-00
Unavailable
17
HOLDER, GUIDE
23X-14459-01-00
Unavailable
18
SEAL
23X-14462-00-00
Unavailable
19
NUT, U
95617-05100-00
Unavailable
20
SEAL
22W-14457-00-00
Unavailable
21
SPRING, COMPRESSION
90504-03033-00
Unavailable
22
CASE, AIR CLEANER 1
23X-14411-00-00
Unavailable
23
. WASHER, PLAIN
92990-05200-00
Unavailable
24
ELEMENT, AIR CLNR
23X-W1442-09-00
Unavailable
25
GUIDE
23X-14458-09-00
Unavailable
26
PLATE, ELEMENT FTTTING (4V2-14468-01)
4V2-14468-02-00
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
GROMMET
90480-13014-00
Unavailable
30
CAP, CLEANER CASE 1
23X-14412-00-00
Unavailable
31
GROMMET
23X-14435-00-00
Unavailable
