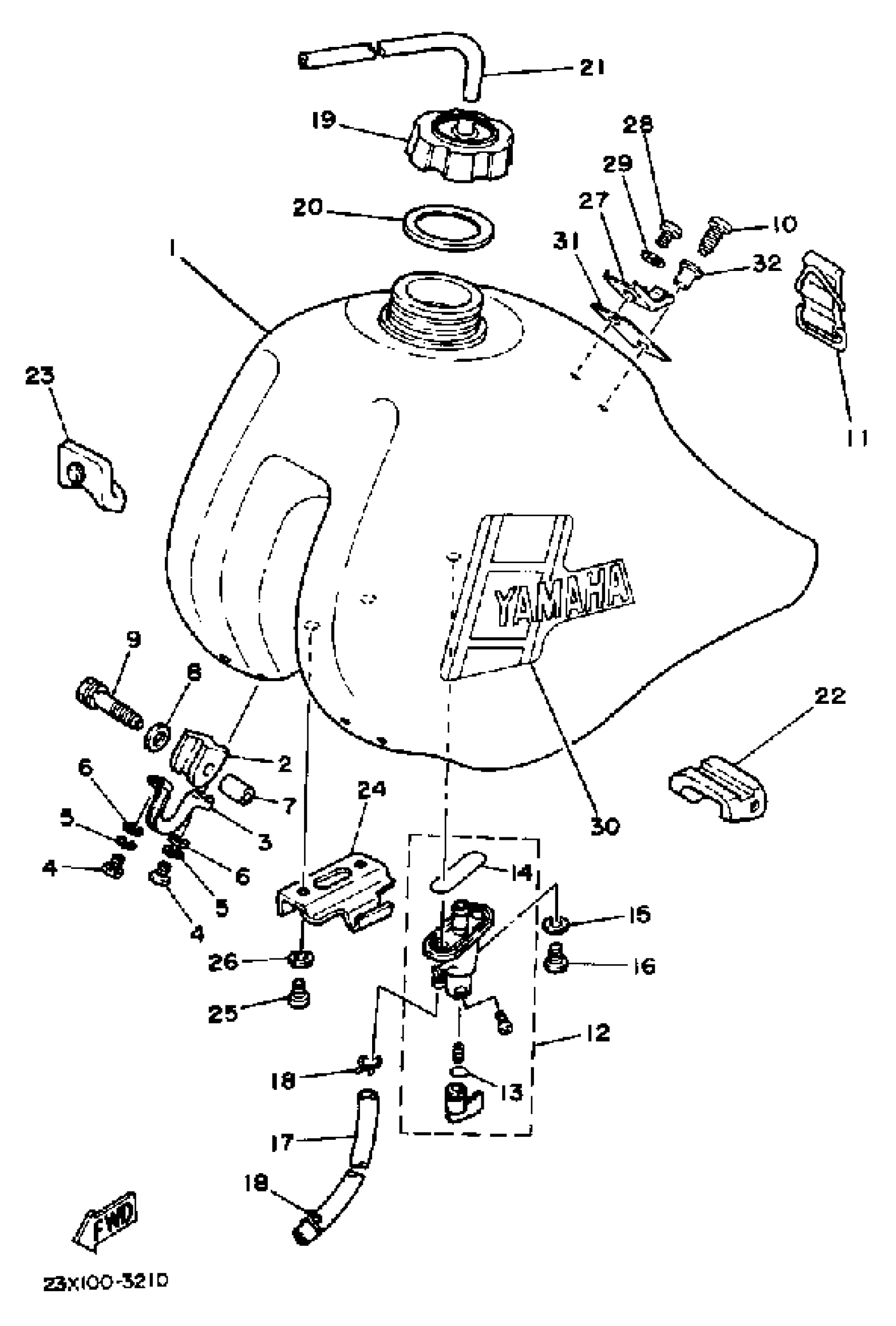

Yamaha YZ490K (YZ490) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

23X-24110-00-00

Unavailable

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

3

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

8

WASHER, PLATE

90201-06747-00

$8.49

9

BOLT, WITH WASHER

90119-06022-00

Unavailable

10

SCREW(3JM)

90149-06306-00

$8.49

11

BAND, TANK FITTING 1

23X-24173-00-00

Unavailable

12

FUEL COCK ASSY

2K5-24500-00-00

$86.99

13

O-RING

1A0-24512-00-00

Unavailable

14

GASKET, BODY

214-24512-00-00

$30.99

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

SCREW 256241430000

90149-06011-00

Unavailable

17

HOSE (L370)

90445-112E1-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

BODY, CAP

5X7-24611-01-00

Unavailable

20

PACKING, CAP

5X7-24612-00-00

Unavailable

21

HOSE (L590)

90445-10020-00

Unavailable

22

DAMPER, LOCATING 1

23X-24181-00-00

Unavailable

23

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable

24

STAY,CHAMBER

4AA-2415F-00-00

Unavailable

25

SCREW PAN HEAD

98580-06010-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

$2.80

27

BRACKET, SEAT

24Y-2412F-00-00

Unavailable

28

SCREW, PAN

98507-06014-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

$2.80

30

GRAPHIC SET

23X-24250-00-00

Unavailable

31

PLATE

23X-2413X-00-00

Unavailable

32

COLLAR (8G8)

90387-06681-00

Unavailable
