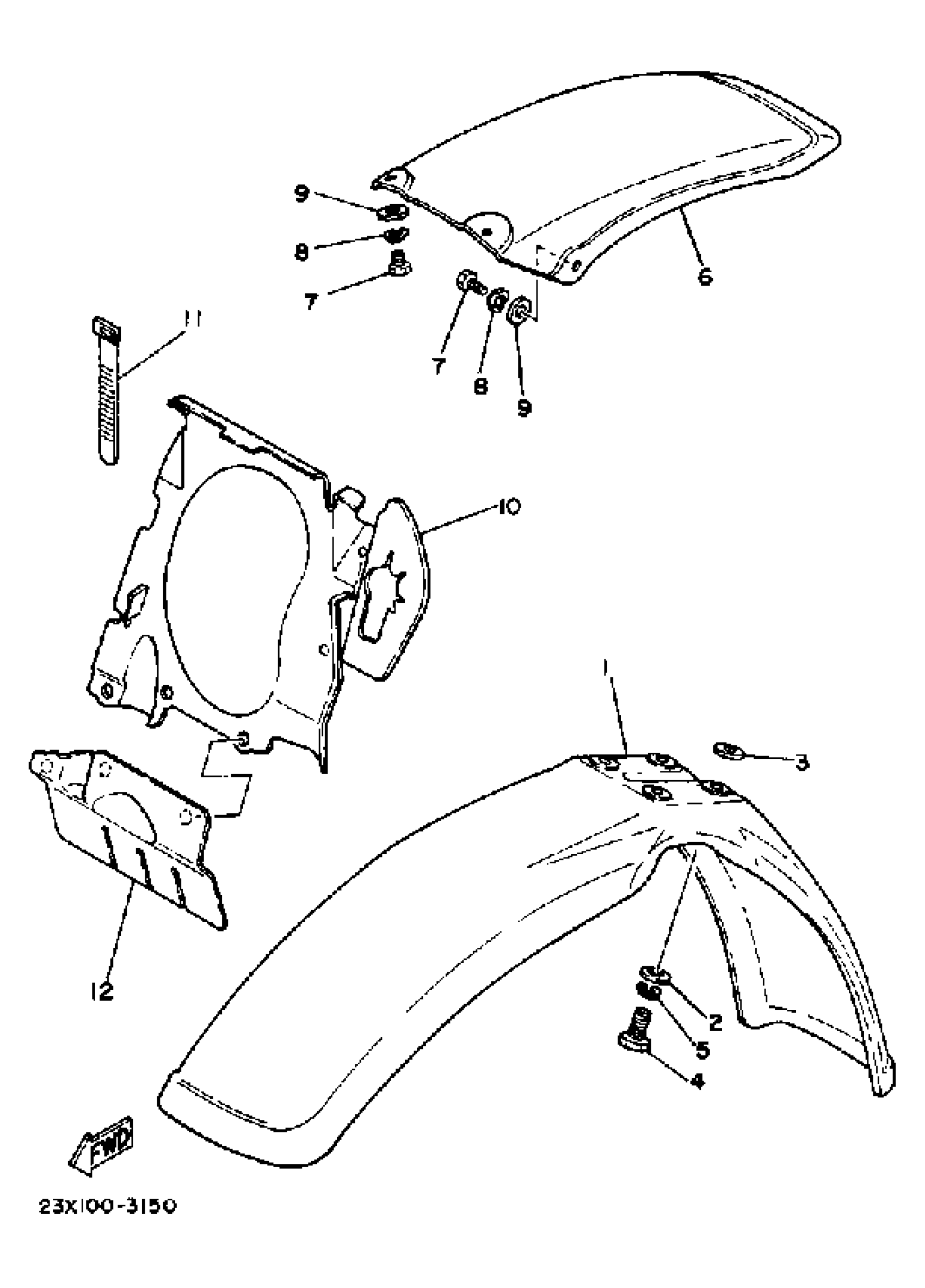

Yamaha YZ490K (YZ490) 1983 FRONT REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$38.39

2

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$5.98

3

WASHER (3R8)

90209-06187-00

$5.76

4

BOLT(3DM)

97024-06020-00

$5.75

5

WASHER(6TA)

92907-06700-00

$1.24

6

FENDER, REAR

3R4-21611-00-00

$68.16

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER(6TA)

92907-06700-00

$1.24

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$5.98

10

MUD GUARD COMP

23X-21620-00-00

Unavailable

11

BAND, SWITCH CORD

437-83936-01-00

$4.56

12

GUARD, FLAP

23X-21642-00-00

Unavailable
