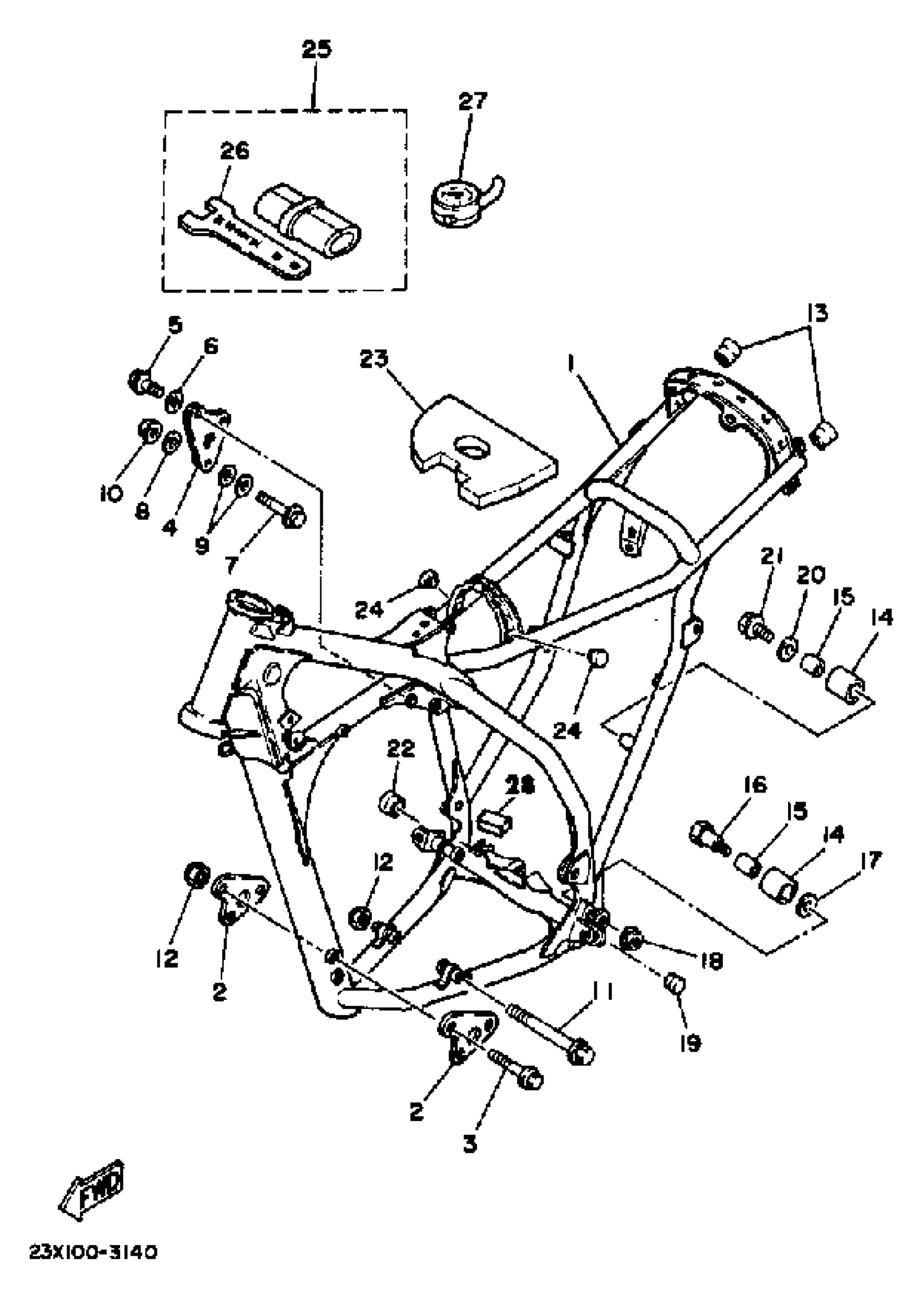

Yamaha YZ490K (YZ490) 1983 FRAME TOOL Diagram

#

Description
Price

1

FRAME COMP.

23X-21110-00-33

Unavailable

2

BRACKET, FRT UPR 1

3R4-21415-00-00

Unavailable

3

BOLT, FLANGE

95817-08075-00

$4.82

4

BRACKET, REAR UPR 1

23X-21425-01-00

Unavailable

5

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

6

WASHER 6464313202

90202-08022-00

$4.14

7

BOLT, FLANGE

95817-10060-00

$7.49

8

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

9

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

10

NUT, SELF-LOCKING

90185-10170-00

$9.49

11

BOLT, WASHER BASED

90105-08473-00

Unavailable

12

NUT, SELF-LOCKING

90185-08169-00

$8.49

13

PLUG (2K5)

90339-13005-00

$4.29

14

TENSIONER

30X-22178-00-00

$35.99

15

BUSH

4V4-22184-00-00

$4.47

16

BOLT (23X)

90109-08705-00

Unavailable

17

WASHER, PLATE

90201-13013-00

Unavailable

18

NUT, SELF-LOCKING

90185-08169-00

$8.49

19

PLUG

90338-12131-00

Unavailable

20

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

21

BOLT, FLANGE

95814-08016-00

Unavailable

22

PLUG, TAPER

90336-25040-00

Unavailable

23

SEAL

23X-2414G-00-00

Unavailable

24

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

25

TOOL KIT

39W-W2810-00-00

Unavailable

26

SPANNER,SPECIAL

1HX-28135-00-00

Unavailable

27

GAUGE, AIR

2X4-2811A-01-00

Unavailable

28

COVER, DUST

23X-27286-00-00

Unavailable
