Description

Price

1

HEAD, CYLINDER 1

23X-11111-00-00

Unavailable

2

GASKET, CYLINDER HEAD 1

5X6-11181-00-00

Unavailable

3

PLUG, SPARK

CMP-N8600-00-00

Unavailable

4

BOLT, STUD (5V6)

90116-08394-00

$11.49

5

NUT(6L2)

95333-08600-00

$2.49

6

WASHER (1T1)

90201-08649-00

$9.49

7

CYLINDER 1

23X-11311-00-00

Unavailable

8

GASKET, CYLINDER

40T-11351-01-00

$22.99

9

BOLT, STUD

90116-12315-00

Unavailable

10

BOLT, STUD

90116-12316-00

Unavailable

11

NUT(3GG)

90179-12588-00

$7.49

12

PIN, DOWEL(MH0)

91815-16017-00

$8.49

13

HOOK, SPRING

3R5-14619-00-00

Unavailable

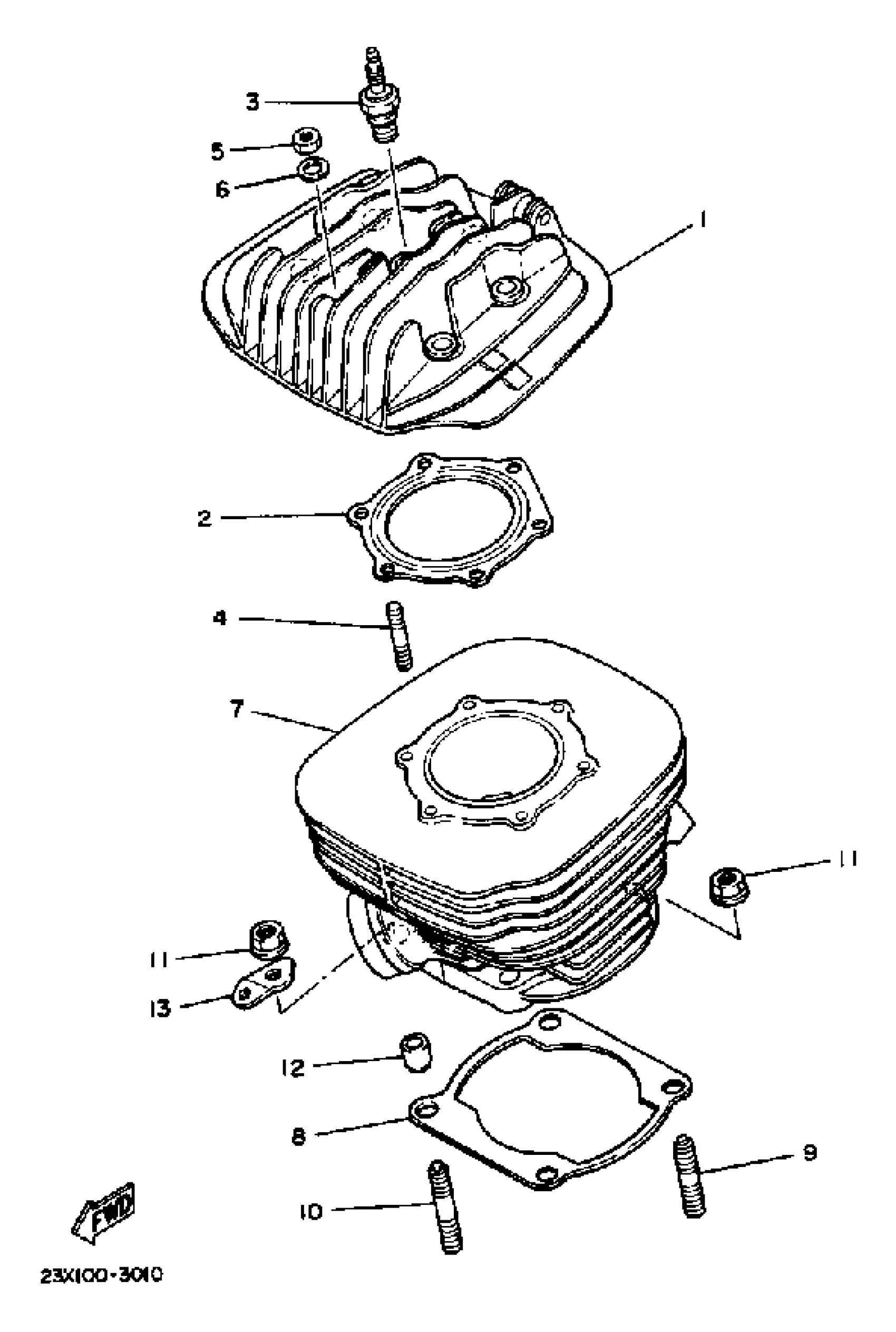

Yamaha YZ490K (YZ490) 1983 CYLINDER Diagram

HEAD, CYLINDER 1

GASKET, CYLINDER HEAD 1

PLUG, SPARK

BOLT, STUD (5V6)

NUT(6L2)

WASHER (1T1)

CYLINDER 1

GASKET, CYLINDER

BOLT, STUD

BOLT, STUD

NUT(3GG)

PIN, DOWEL(MH0)

HOOK, SPRING
