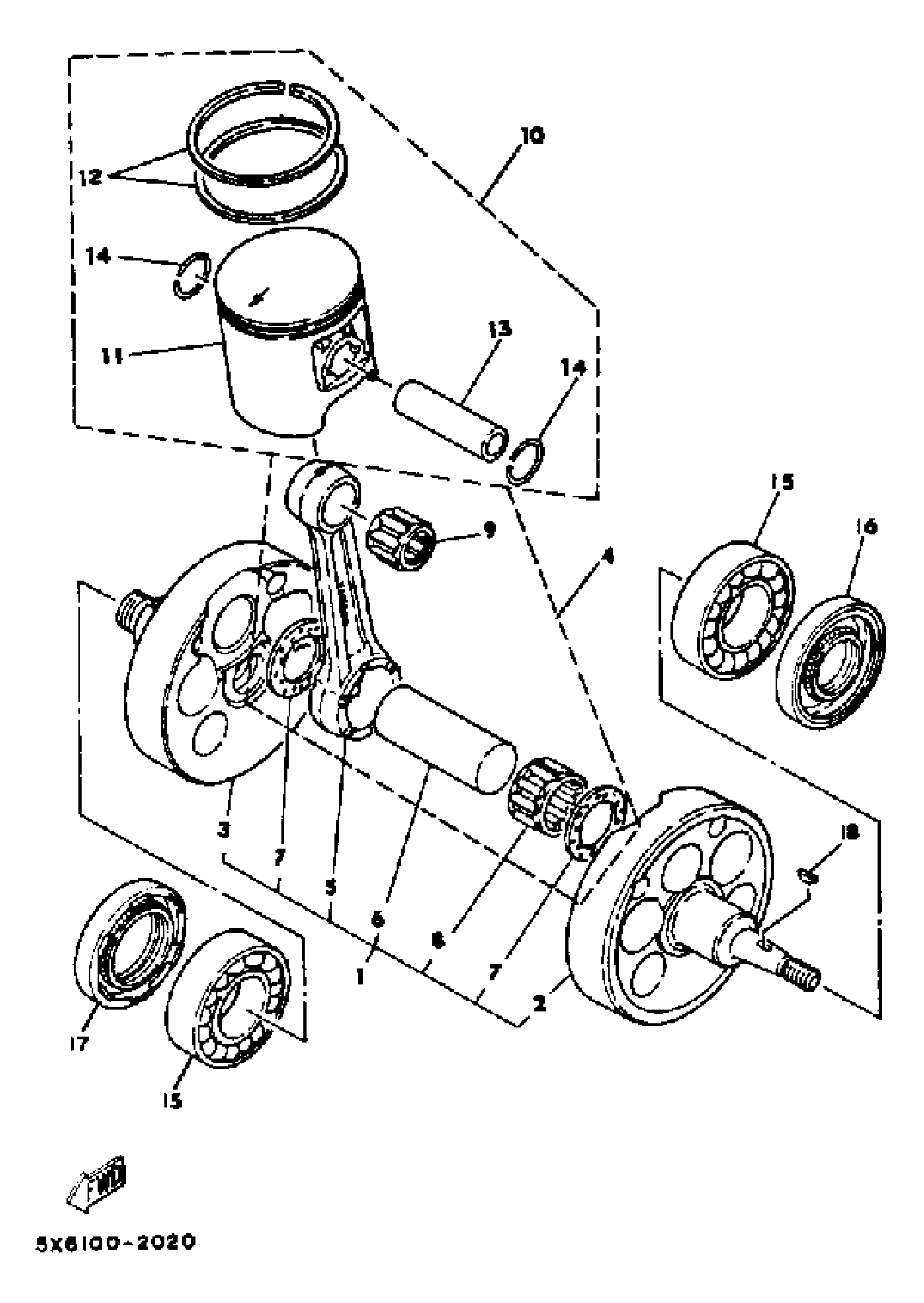

Yamaha YZ490K (YZ490) 1983 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSEMBLY (3R5-11400-00) (3R5-11400-00)

40T-11400-00-00

Unavailable

. CRANK 1

3R5-11412-00-00

Unavailable

. CRANK 2

3R5-11422-00-00

Unavailable

CONNECTING ROD ASSY

3R5-11650-00-00

Unavailable

ROD, CONNECTING

3R5-11651-00-00

$197.99

PIN, CRANK

3R8-11681-00-00

$46.99

WASHER 275116850000

90209-25085-00

$12.49

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

PISTON KIT STD

5X6-11630-01-00

Unavailable

PISTON STD

5X6-11631-01-93

Unavailable

. PISTON RING SET STD

5X6-11601-00-00

Unavailable

PIN, PISTON

275-11633-00-00

$35.99

CIRCLIP (2F1)

93450-19052-00

$7.49

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

OIL SEAL(38V)

93103-30150-00

Unavailable

OIL SEAL (434)

93103-40091-00

Unavailable

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

Unavailable

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

Unavailable

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

Unavailable

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

Unavailable

PISTON KIT 1ST

5X6-11630-11-00

Unavailable

PISTON ASSEMBLY (2ND O/S) (5X6-11630-20)

5X6-11630-21-00

Unavailable

PISTON ASSEMBLY (2ND O/S) (5X6-11630-20)

5X6-11630-21-00

Unavailable

PISTON ASSEMBLY (3RD O/S) (5X6-11630-30)

5X6-11630-31-00

Unavailable

PISTON ASSEMBLY (3RD O/S) (5X6-11630-30)

5X6-11630-31-00

Unavailable

PISTON KIT 4TH

5X6-11630-41-00

Unavailable

PISTON 1 O/S 0.25

5X6-11635-01-00

Unavailable

PISTON 2O/S .50

5X6-11636-01-00

Unavailable

PISTON 3RD O/S

5X6-11637-01-00

Unavailable

PISTON 4 O/S 1.00

5X6-11638-01-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
