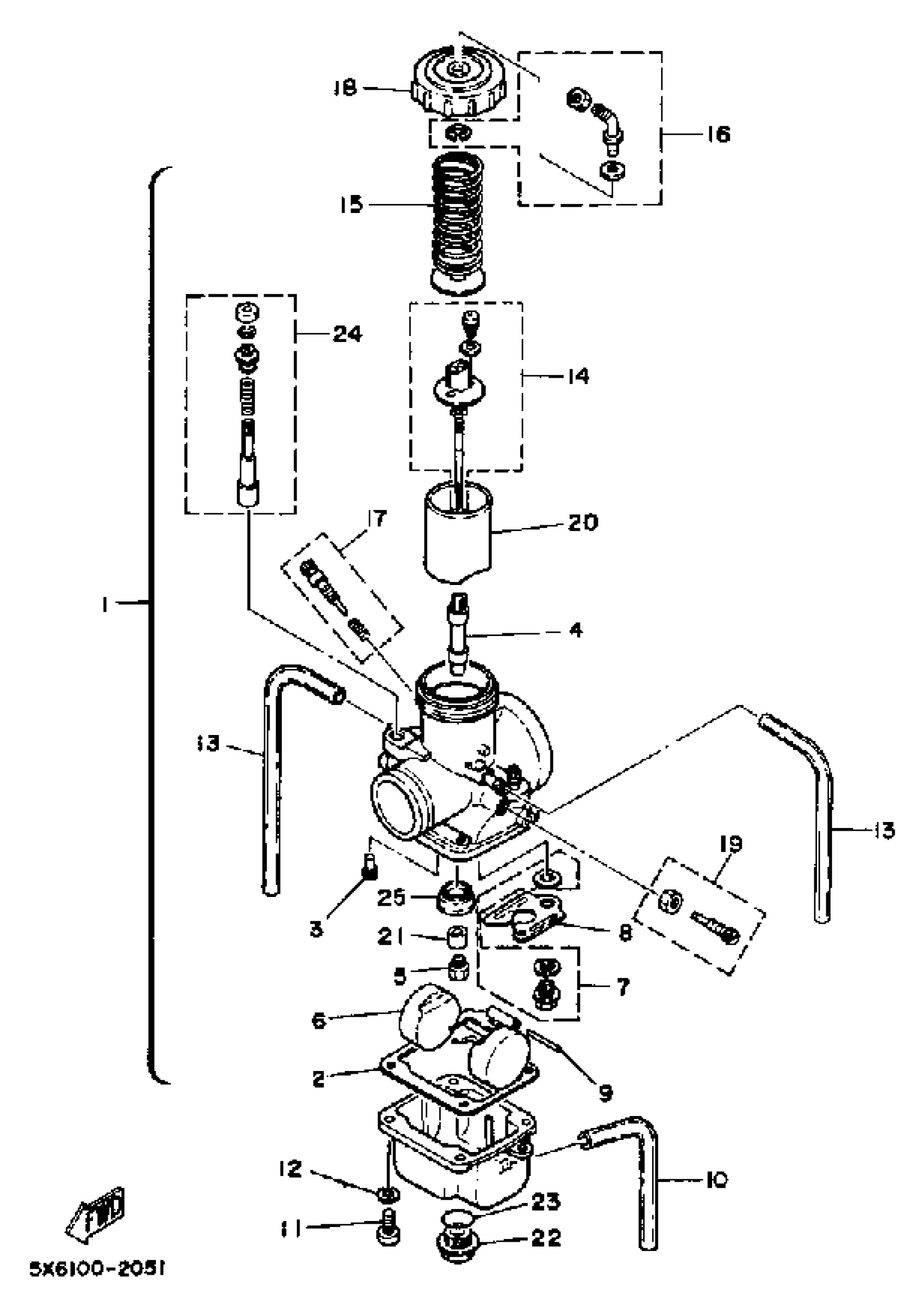

Yamaha YZ490K (YZ490) 1983 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

23X-14101-10-00

Unavailable

2

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

3

JET, PILOT (# 50)

193-14142-50-00

$8.99

4

. NOZZLE, MAIN

510-14141-58-00

Unavailable

5

JET,MAIN #430

137-14143-86-00

$7.99

5

JET, MAIN #440

137-14143-88-00

$7.99

5

JET, MAIN #460

137-14143-92-00

$6.99

6

FLOAT

2N7-14185-00-00

$85.99

7

NEEDLE VALVE SET

23X-14107-35-00

$45.99

8

. PLATE

3R4-14146-00-00

Unavailable

9

PIN, FLOAT

537-14186-00-00

$7.99

10

HOSE

88R-14987-00-00

Unavailable

11

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

HOSE

89A-14987-00-00

$16.49

14

. NEEDLE SET

23X-1490J-00-00

Unavailable

15

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

16

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

17

AIR SCREW SET

23X-14104-00-00

Unavailable

18

. TOP, MIXING CHAMBER

5Y9-14158-00-00

Unavailable

19

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

20

. VALVE, THROTTLE 1

510-14112-30-00

Unavailable

21

. SETTER, NEEDLE JET

509-14145-00-00

Unavailable

22

. PLUG, SCREW

510-14115-00-00

Unavailable

23

O-RING (541)

558-14147-00-00

Unavailable

24

. STARTER SET

23X-1410A-00-00

Unavailable

25

. WASHER, MAIN JET

5X5-14153-00-00

Unavailable
