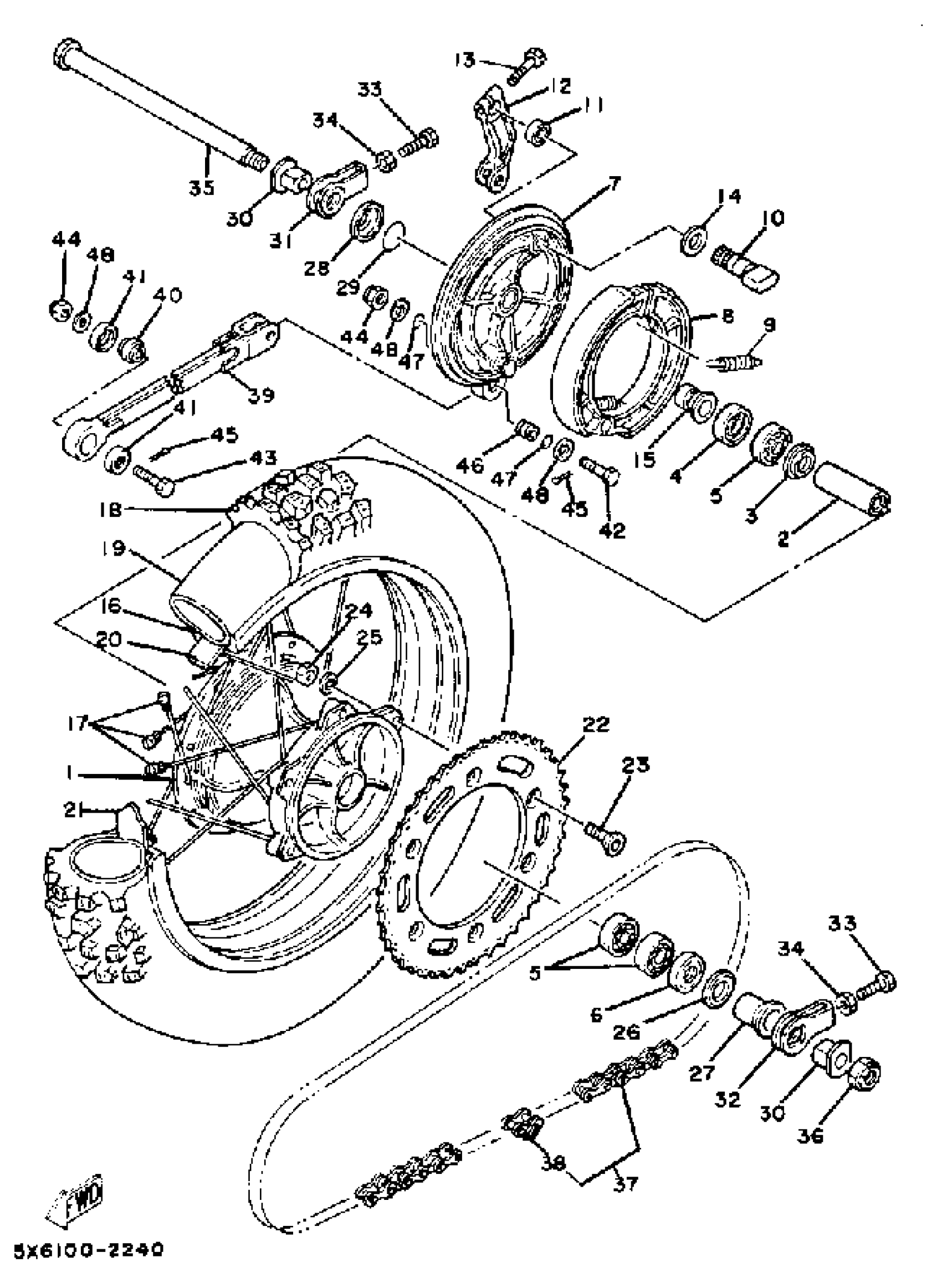

Yamaha YZ490J (YZ490J) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4V4-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

FLANGE, SPACER

4V4-25315-00-00

Unavailable

4

BEARING(8AB)

93306-00444-00

$41.99

5

BEARING(3BN)

93306-00438-00

$37.99

6

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

7

PLATE, BRAKE SHOE

(5X6-25321-00-98)

Unavailable

8

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

9

SPRING, TENSION 2462533300

90507-20002-00

$8.49

10

CAMSHAFT

1E6-25151-00-00

Unavailable

11

SEAL, CAM SHAFT

148-25359-00-00

$4.78

12

LEVER, CAMSHAFT

5X6-25355-00-00

Unavailable

13

BOLT, HEXAGON (462)

90101-06291-00

$8.49

14

SHIM, CAM SHAFT

148-25353-00-00

$6.99

15

COLLAR

(90387-204F5-00)

Unavailable

16

RIM 2.50X18

94425-18321-00

Unavailable

17

SPOKE SET, REAR

4V4-25304-00-00

Unavailable

18

140/90-18 MARK2 TT

(94114-18738-00)

Unavailable

19

TUBE

94245-18125-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER, BEAD

2X5-25394-00-00

Unavailable

22

SPROCKET, DRIVEN 44T

3R4-25444-01-XX

Unavailable

22

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

22

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

22

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

22

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

23

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

25

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

26

COVER, HUB DUST

4V4-25367-00-00

Unavailable

27

COLLAR

(90387-206F5-00)

Unavailable

28

COVER, PLATE

4V4-25327-00-00

Unavailable

29

O-RING

93210-33481-00

Unavailable

30

BUSH, SOLID

90381-20039-00

Unavailable

31

PULLER, CHAIN 2

5X6-25389-00-00

Unavailable

32

PULLER, CHAIN 1

5X6-25388-00-00

Unavailable

33

BOLT

90101-08060-00

Unavailable

34

. NUT

95380-08700-00

Unavailable

35

AXLE, WHEEL

4V4-25381-01-00

Unavailable

36

NUT, SELF-LOCKING

90185-18009-00

Unavailable

37

520 DS 110L

94585-20110-00

Unavailable

38

JOINT, CHAIN

94681-68001-00

Unavailable

39

BAR, TENSION

5X5-25371-00-00

Unavailable

40

BEARING, SPECIAL

93399-99906-00

Unavailable

41

OIL SEAL, OSO-TYPE

93108-23009-00

Unavailable

42

BOLT

90109-08370-00

Unavailable

43

BOLT, WITH HOLE

90102-08034-00

Unavailable

44

NUT, U

95617-08100-00

Unavailable

45

PIN, COTTER

91490-20025-00

Unavailable

46

COLLAR

90387-083F0-00

Unavailable

47

O-RING (648)

93210-14167-00

Unavailable

48

.. WASHER, PLATE

92990-08600-00

Unavailable
