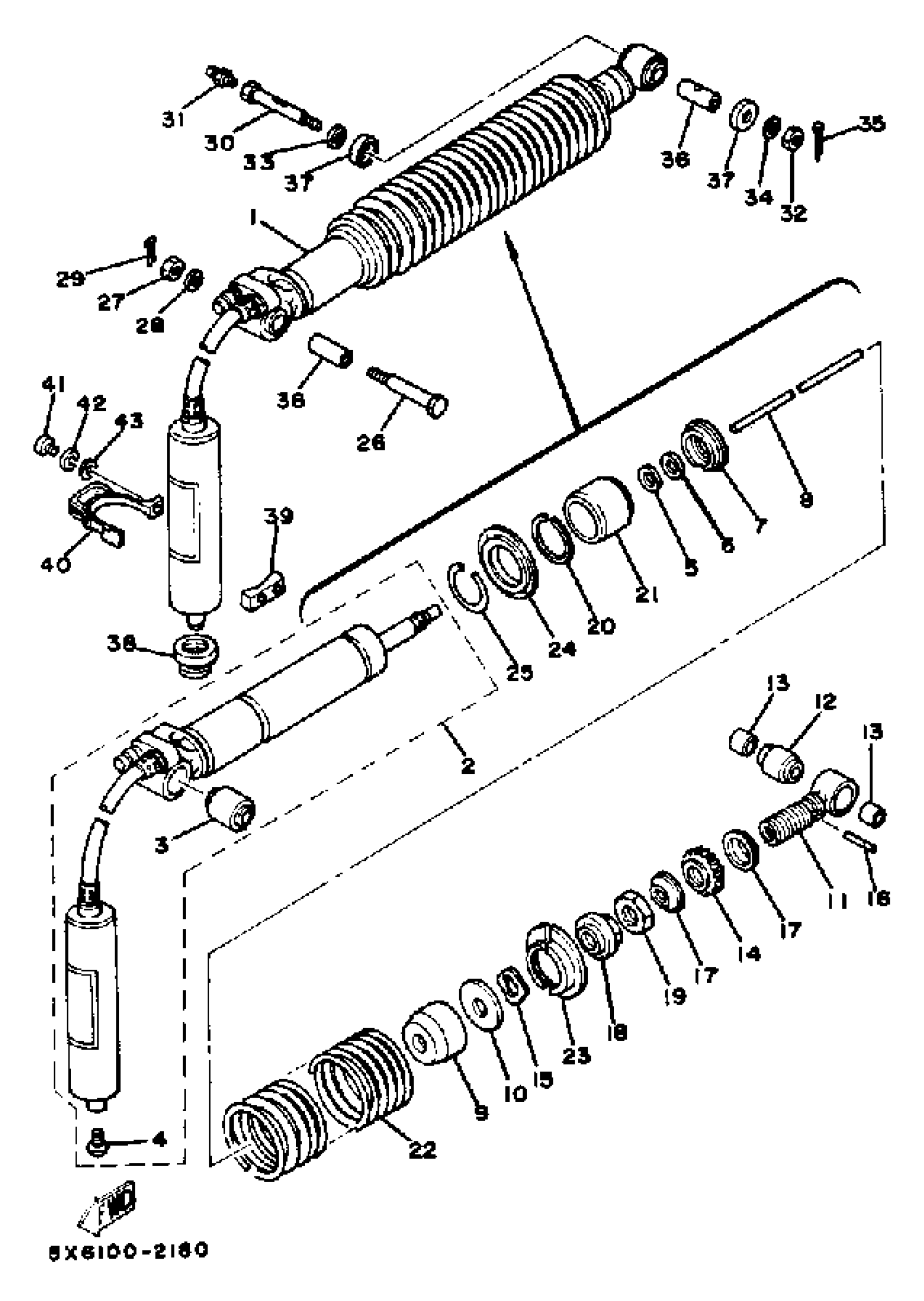

Yamaha YZ490J (YZ490J) 1982 REAR SUSPENSION Diagram

#

Description

Price

1

SHK/ABS ASSEMBLY, REAR

(5X6-22210-00-00)

Unavailable

2

DAMPER SUB-ASSEMBLY.

(5X6-22401-00-00)

Unavailable

3

BUSH, RR SHOCK ABS

(5X6-22216-00-00)

Unavailable

4

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

5

. SEAL, DUST

5X6-22475-00-00

Unavailable

6

. HOUSING, SEAL RING

5X6-22473-00-00

Unavailable

7

CAP, CASE

(5X6-22472-00-00)

Unavailable

8

. ROD, PUSH

5X6-22489-00-00

Unavailable

9

BUMP, STOP

(5X6-22493-00-00)

Unavailable

10

. SUPPORT, BUMP STOP

5X6-22228-00-00

Unavailable

11

. UPPER BRKT SUB ASSEMBLY

5X6-22409-00-00

Unavailable

12

. BUSH, SHOCK ABS LWR

5X6-22226-00-00

Unavailable

13

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

$14.99

14

. NUT, ADJUSTING

5X6-22497-00-00

Unavailable

15

. WASHER, WAVE

90206-18072-00

Unavailable

16

. PIN, DOWEL

93604-30173-00

Unavailable

17

COVER

(4V4-22221-70-00)

Unavailable

18

SEAT, SPRING UPPER

(5X6-22213-00-00)

Unavailable

19

. NUT, HEXAGON

90170-25294-00

Unavailable

20

CIRCLIP, OUTER

(93440-52106-00)

Unavailable

21

GUIDE, SPRING 2

(5X6-22224-00-00)

Unavailable

22

SPRING

5X5-22212-00-00

Unavailable

22

. SPRING

5X6-22212-00-00

Unavailable

22

SPRING

5X6-22212-10-00

Unavailable

23

. GUIDE, SPRING 1

2VN-22214-00-00

Unavailable

24

SEAT, SPRING LOWER

(5X6-22223-00-00)

Unavailable

25

. CIRCLIP

93440-51103-00

Unavailable

26

BOLT (1M1)

90109-10453-00

Unavailable

27

NUT (682)

95380-10700-00

Unavailable

28

WASHER (7A9)

90201-100F7-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable

30

BOLT

90109-10645-00

Unavailable

31

NIPPLE, GREASE

93700-06M03-00

Unavailable

32

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

33

WASHER, PLATE

90201-12027-00

Unavailable

34

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

35

PIN, COTTER

91490-25020-00

Unavailable

36

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

37

COVER, THRUST 2

5X6-22129-00-00

Unavailable

38

GROMMET (3R4)

90480-22263-00

Unavailable

39

DAMPER, SUB TANK

5X6-22261-00-00

Unavailable

40

HOLDER, SUB TANK

5X6-22262-00-00

Unavailable

41

SCREW, PAN

98507-06014-00

Unavailable

42

WASHER, SPRING

92995-06100-00

Unavailable

43

WASHER, PLAIN (646)

92990-06600-00

Unavailable
