1982 Yamaha YZ490J (YZ490J) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

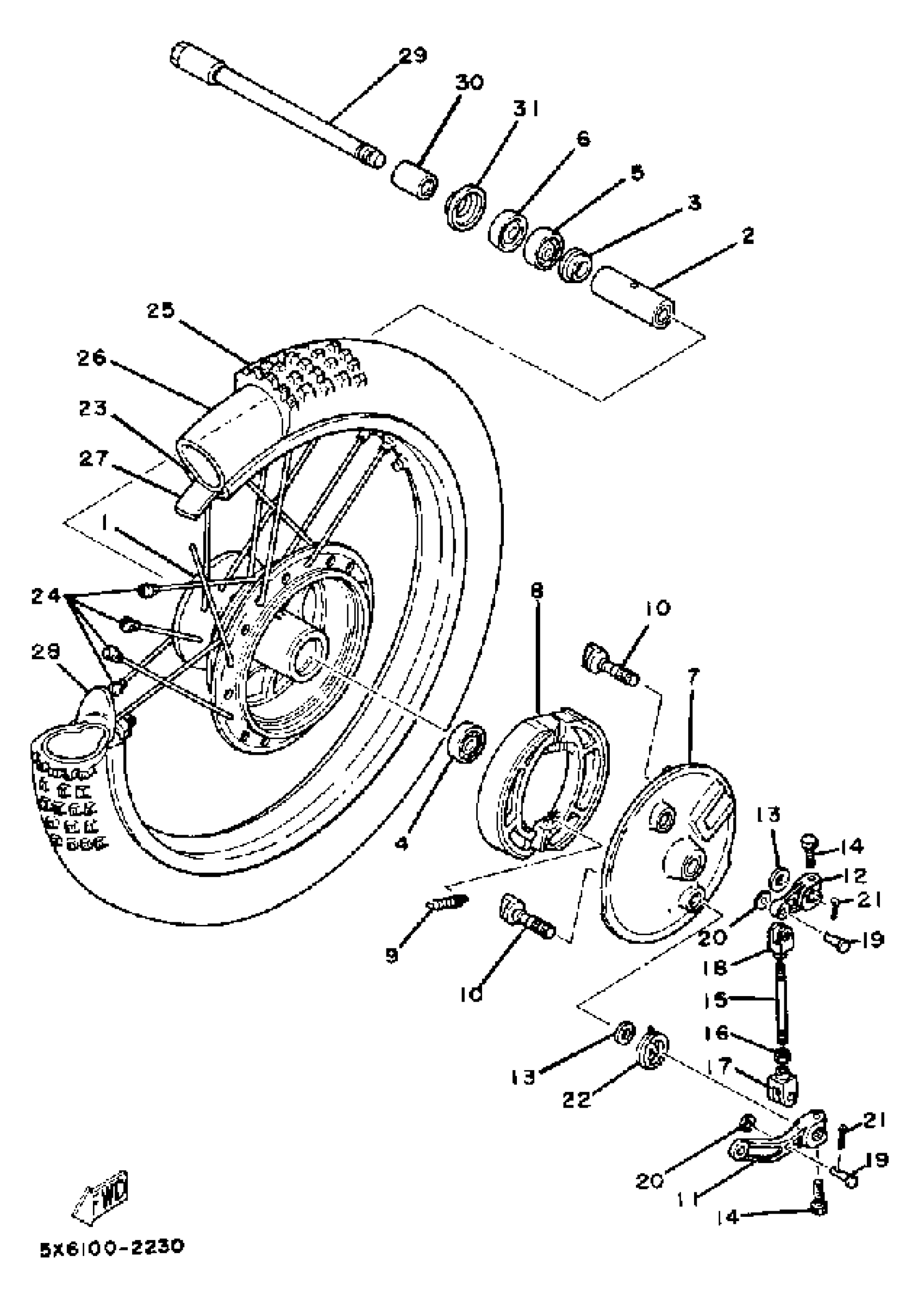

1982 Yamaha YZ490J (YZ490J) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

23X-25111-00-98

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

7

PLATE, BRAKE SHOE

5X6-25121-00-98

1
Out of stock

8

BRAKE SHOE KIT

4V4-W253A-00-00

1

$31.99

In stock

9

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

10

CAMSHAFT

23X-25151-00-00

1
Out of stock

11

LEVER, CAMSHAFT

99999-02061-00

1
Out of stock

12

LEVER, CAMSHAFT 2

99999-02067-00

1
Out of stock

13

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

14

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

15

ROD, CONNECTING

3R5-25161-00-00

1
Out of stock

16

NUT(650)

95380-06700-00

—

$6.17

In stock

17

END, ROD 1

152-25163-00-00

1
Out of stock

18

END, ROD 2

152-25164-00-00

1
Out of stock

19

PIN, WITH HOLE (248-27228-00)

90240-06006-00

—
Out of stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

SPRING, TORSION

90508-20425-00

1
Out of stock

23

RIM 1.60X21

94416-21320-00

1
Out of stock

24

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

25

90/90-21 M2E 1RC

94109-210G1-00

1
Out of stock

26

TUBE

94230-21126-00

1
Out of stock

27

BAND, RIM

(94330-21088-00)

1
Out of stock

28

SPACER, BEAD

4V5-25194-00-00

1
Out of stock

29

AXLE, WHEEL

3R4-25181-01-00

1
Out of stock

30

COLLAR (34L)

90387-152J3-00

—

$18.75

In stock

31

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock
