1982 Yamaha YZ490J (YZ490J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha YZ490J (YZ490J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

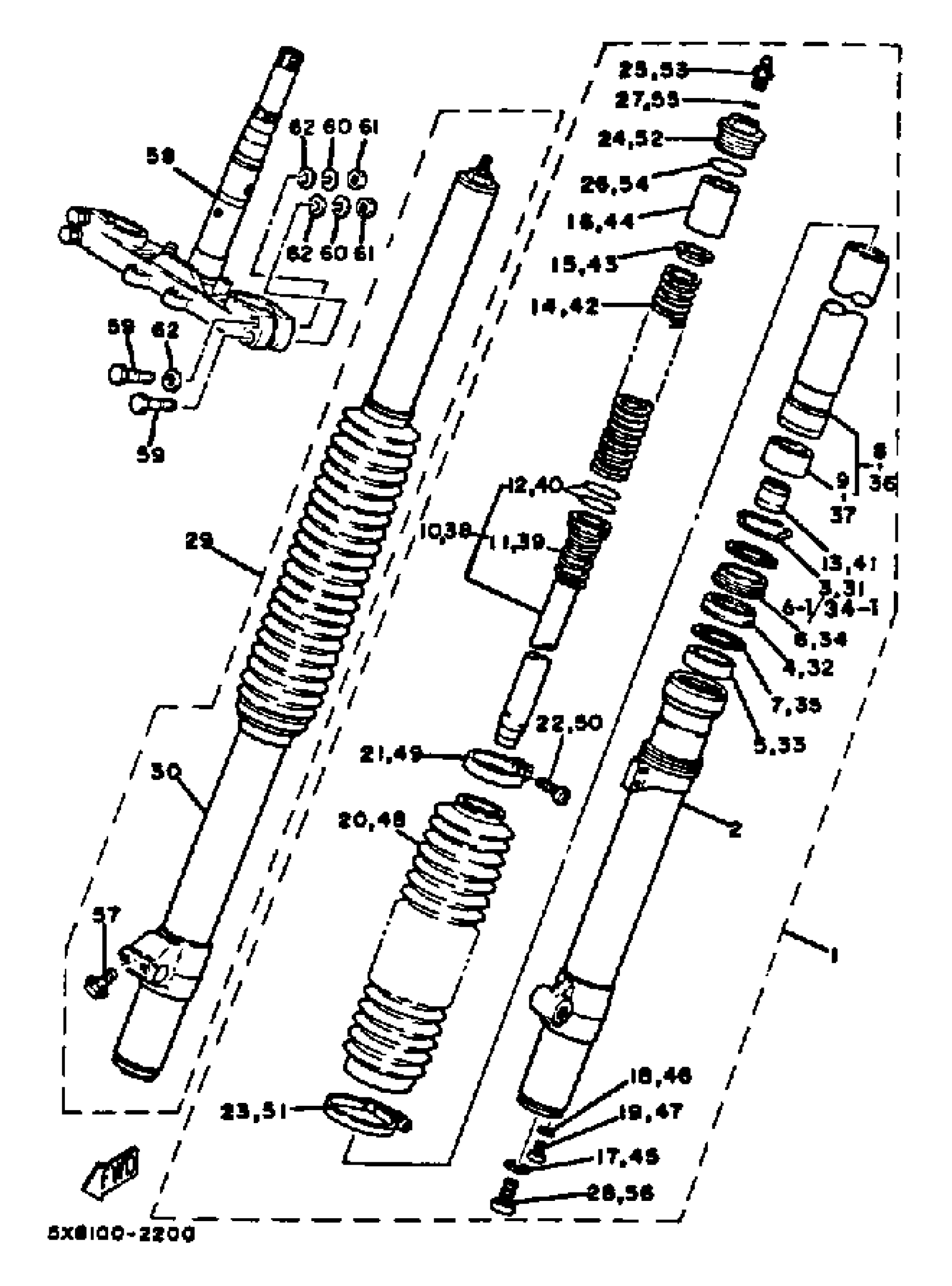

1982 Yamaha YZ490J (YZ490J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. COVER, DUST SEAL

4V4-23148-L0-00

1
Out of stock

1

. COVER, DUST SEAL

4V4-23148-L0-00

1
Out of stock

1

FRONT FORK ASSEMBLY L

(5X6-23102-L0-00)

1
Out of stock

2

TUBE, OUTER 1

(5X6-23126-L0-00)

1
Out of stock

3

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

4

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

5

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

6

. SEAL, DUST

4V4-23144-L0-00

1
Out of stock

7

WASHER

4V4-23146-L0-00

1

$5.93

In stock

8

. INNER TUBE 1

4V4-23110-L0-00

1
Out of stock

9

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

10

CYLINDER, FRTFRK

(5X6-23170-L0-00)

1
Out of stock

11

.. SPRING, SUB

5X6-23152-L0-00

1
Out of stock

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

13

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

14

SPRING, FRTFRK SOFT

(5X6-23141-10-00)

1
Out of stock

14

SPRING, FRTFRK HARD

5X6-23141-20-00

1
Out of stock

14

SPRING, FRONT FORK

(5X6-23141-L0-00)

1
Out of stock

15

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

16

. SPACER (L=80)

5X6-23118-10-00

1
Out of stock

16

. SPACER

5X6-23118-L0-00

1
Out of stock

17

GASKET

4V4-23158-L0-00

—
Out of stock

18

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

19

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

20

. BOOT, FRONT FORK

5X6-23191-L0-00

1
Out of stock

21

. BAND

4V4-23192-L0-00

1
Out of stock

22

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

23

. BAND

23X-23489-L0-00

1
Out of stock

24

. BOLT, CAP

5X6-23111-L0-00

1
Out of stock

25

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

26

O-RING

4V4-23188-L1-00

—

$4.77

In stock

27

O-RING

3J2-23147-00-00

—
Out of stock

28

BOLT

4V4-23181-L0-00

—
Out of stock

29

FRONT FORK ASSEMBLY R

(5X6-23103-L0-00)

1
Out of stock

30

. TUBE, OUTER 2

5X6-23136-L0-00

1
Out of stock

31

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

32

. UNAVAILABLE IN PRICE BOOK

4VA-23145-L0-00

1
Out of stock

33

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

34

. SEAL, DUST

4V4-23144-L0-00

1
Out of stock

35

WASHER

4V4-23146-L0-00

1

$5.93

In stock

36

. INNER TUBE 1

4V4-23110-L0-00

1
Out of stock

37

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

38

CYLINDER, FRTFRK

(5X6-23170-L0-00)

1
Out of stock

39

.. SPRING, SUB

5X6-23152-L0-00

1
Out of stock

40

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

41

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

42

SPRING, FRTFRK SOFT

(5X6-23141-10-00)

1
Out of stock

42

SPRING, FRTFRK HARD

5X6-23141-20-00

1
Out of stock

42

SPRING, FRONT FORK

(5X6-23141-L0-00)

1
Out of stock

43

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

44

. SPACER (L=80)

5X6-23118-10-00

1
Out of stock

44

. SPACER

5X6-23118-L0-00

1
Out of stock

45

GASKET

4V4-23158-L0-00

—
Out of stock

46

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

47

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

48

. BOOT, FRONT FORK

5X6-23191-L0-00

1
Out of stock

49

. BAND

4V4-23192-L0-00

1
Out of stock

50

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

51

. BAND

23X-23489-L0-00

1
Out of stock

52

. BOLT, CAP

5X6-23111-L0-00

1
Out of stock

53

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

54

O-RING

4V4-23188-L1-00

—

$4.77

In stock

55

O-RING

3J2-23147-00-00

—
Out of stock

56

BOLT

4V4-23181-L0-00

—
Out of stock

57

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

1
Out of stock

58

UNDER BRACKET

(4V4-23340-L0-33)

1
Out of stock

59

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

60

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

61

NUT(6L2)

95333-08600-00

—

$3.20

In stock

62

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

63

GUIDE, WIRE

3R4-23389-00-00

—
Out of stock
