1990 Yamaha YZ490A (YZ490A) Transmission Diagram

← All diagrams

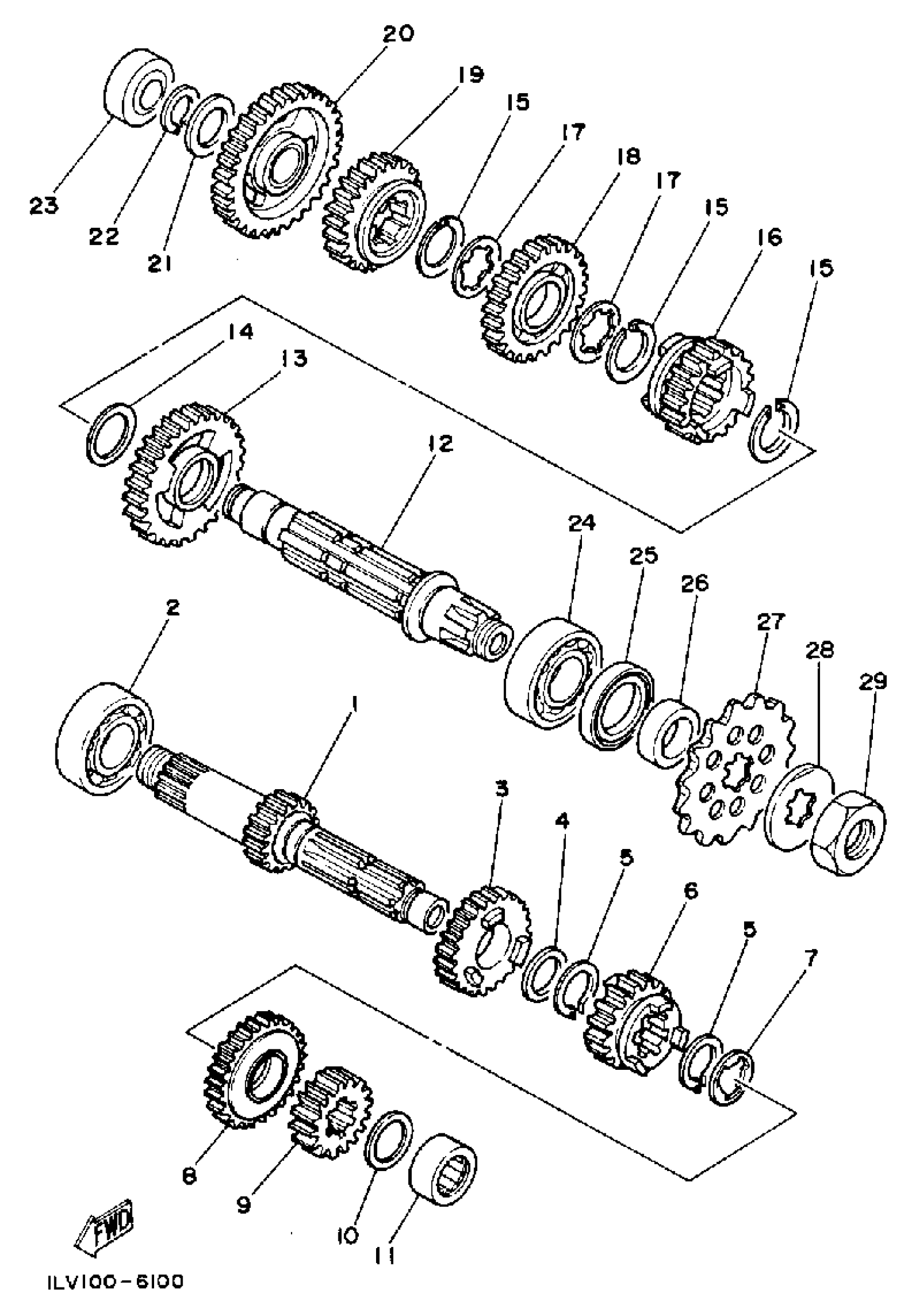

Find the part on the Transmission diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN (15T)

1LV-17411-00-00

1
Out of stock

2

BEARING (23X)

93300-20501-00

1

$60.97

In stock

3

GEAR, 4TH PINION (22T)

1LV-17141-00-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

5

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

6

GEAR,3RD PINION

1LV-17131-01-00

1
Out of stock

7

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

8

GEAR, 5TH PINION (24T)

1LV-17151-00-00

1
Out of stock

9

GEAR, 2ND PINION (16T)

1LV-17121-00-00

1
Out of stock

10

WASHER

90209-20213-00

1
Out of stock

11

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

12

AXLE, DRIVE

5X5-17421-00-00

1
Out of stock

13

GEAR, 2ND WHEEL (24T)

1LV-17221-00-00

1
Out of stock

14

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

15

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

16

GEAR, 5TH WHEEL (20T)

1LV-17251-00-00

1
Out of stock

17

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

18

GEAR, 3RD WHEEL (22T)

1LV-17231-00-00

1
Out of stock

19

GEAR, 4TH WHEEL (22T)

1LV-17241-00-00

1
Out of stock

20

GEAR, 1ST WHEEL (29T)

1LV-17211-00-00

1
Out of stock

21

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

22

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

23

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

24

BEARING (23X)

93300-20501-00

1

$60.97

In stock

25

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

26

COLLAR (2K7)

90387-25663-00

—

$25.15

In stock

27

—

$18.29

In stock

27

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

27

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

28

WASHER, LOCK (23X)

90215-21239-00

—

$7.56

In stock

29

NUT (2K7)

90179-20255-00

—

$9.40

In stock
