1990 Yamaha YZ490A (YZ490A) Front Brake Caliper Diagram

← All diagrams

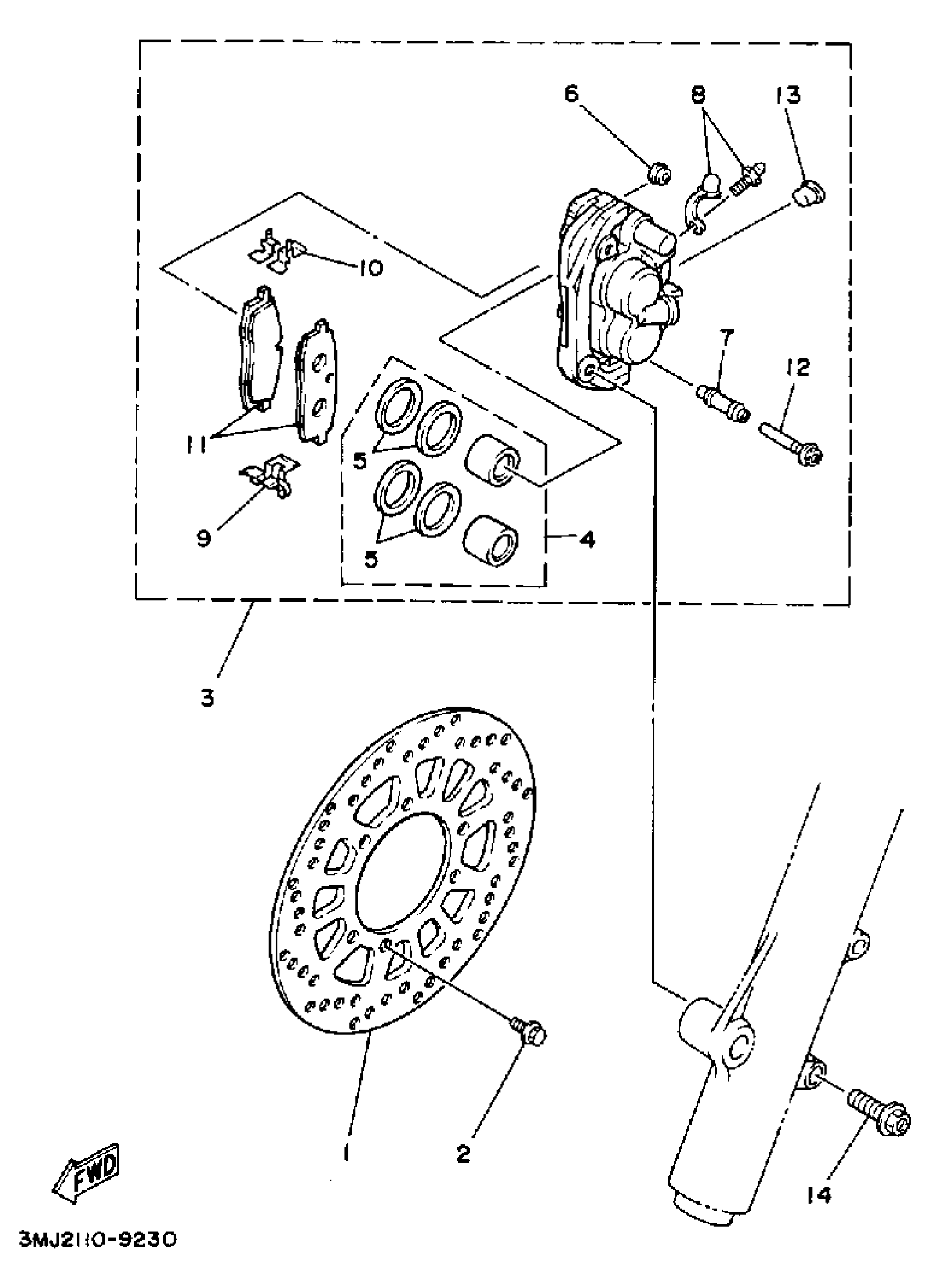

Find the part on the Front Brake Caliper diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Front Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC,BRAKE

55U-2582T-00-00

1
Out of stock

2

BOLT

90109-06757-00

1
Out of stock

3

CALIPER ASSY

1LN-2580T-00-00

1
Out of stock

4

. PISTON ASSEMBLY, CALIPER

56A-W0057-00-00

1
Out of stock

5

CALIPER SEAL KIT

56A-W0047-00-00

1

$20.83

In stock

6

BOOT 2

5R2-25937-00-00

1

$31.48

In stock

7

BOOT 2

56A-25937-00-00

1

$20.28

In stock

8

BLEED SCREW KIT

15B-W0048-00-00

1

$18.09

In stock

9

SUPPORT, PAD

56A-25919-00-00

1

$30.88

In stock

10

SUPPORT, PAD

56A-25919-10-00

1

$27.45

In stock

11

BRAKE PAD KIT

1LN-W0045-01-00

1

$63.75

In stock

12

BOLT

56A-25926-00-00

1

$11.12

In stock

13

CAP, INDICATOR

34X-25845-00-00

1

$14.55

In stock

14

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock
