1990 Yamaha YZ490A (YZ490A) Starter Diagram

← All diagrams

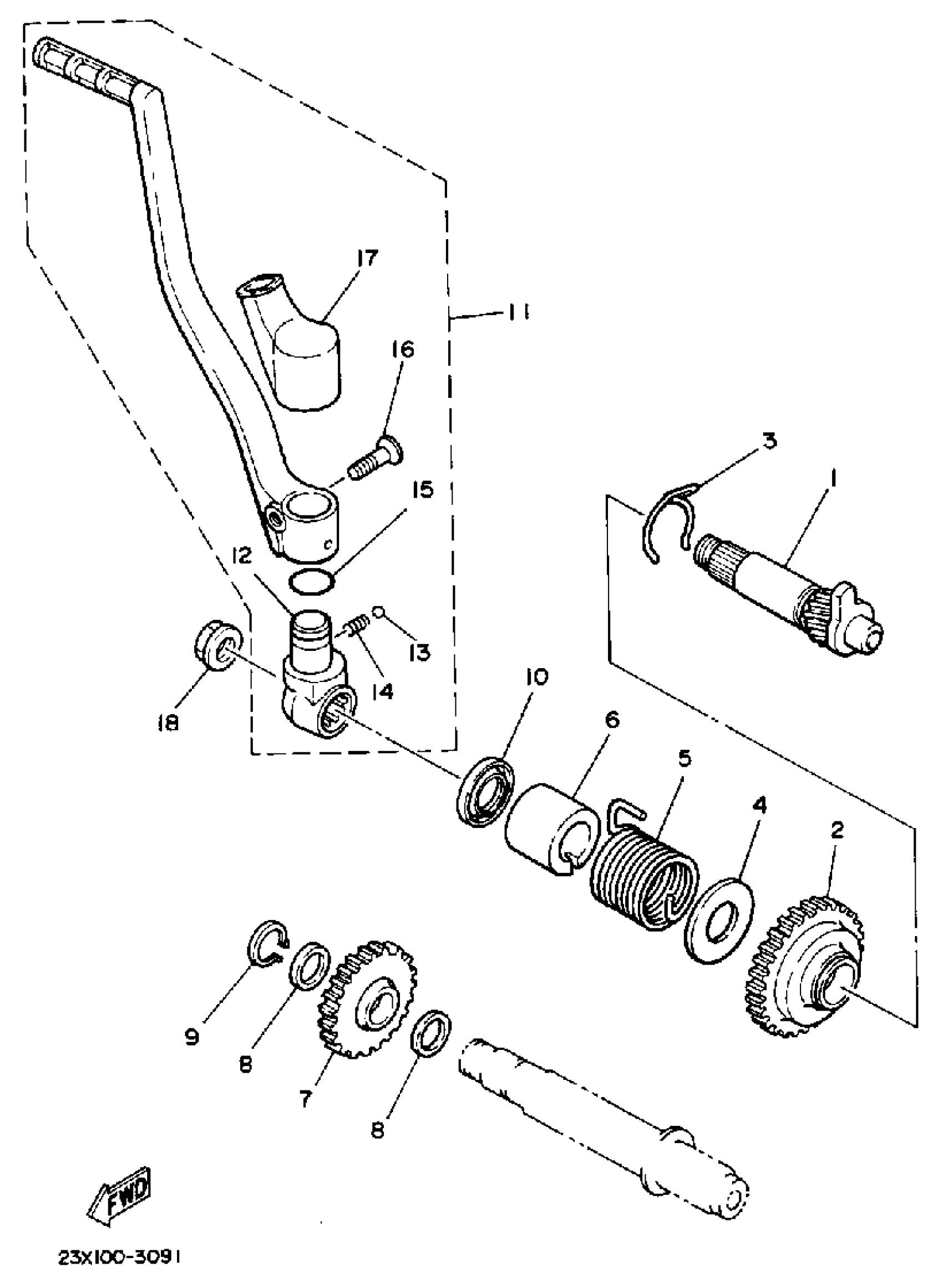

Find the part on the Starter diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha YZ490A (YZ490A) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

57H-15661-00-00

1
Out of stock

2

GEAR, KICK

23X-15641-00-00

1
Out of stock

3

CLIP 315156870000

90468-26048-00

1
Out of stock

4

WASHER, PLATE

90201-20358-00

1
Out of stock

5

SPRING, TORSION (3R4)

90508-30422-00

1

$18.75

In stock

6

GUIDE, SPRING

40T-15664-00-00

1
Out of stock

7

GEAR, KICK IDLE

23X-15651-00-00

1
Out of stock

8

WASHER, PLATE (525)

90201-17545-00

1

$6.68

In stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

11

KICK CRANK ASSEMBLY

40T-15620-01-00

1
Out of stock

12

BOSS,KICK CRANK

23X-15621-02-00

1
Out of stock

13

BALL

93501-04011-00

1
Out of stock

14

SPRING, COMPRESSION (23X)

90501-13720-00

1

$6.68

In stock

15

O-RING(M01)

93210-19758-00

1

$5.53

In stock

16

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

—
Out of stock

17

. COVER, KICK LEVER

23X-15618-00-00

1
Out of stock

18

NUT(1EE)

90179-12659-00

—

$5.37

In stock
