1990 Yamaha YZ490A (YZ490A) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1990 Yamaha YZ490A (YZ490A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

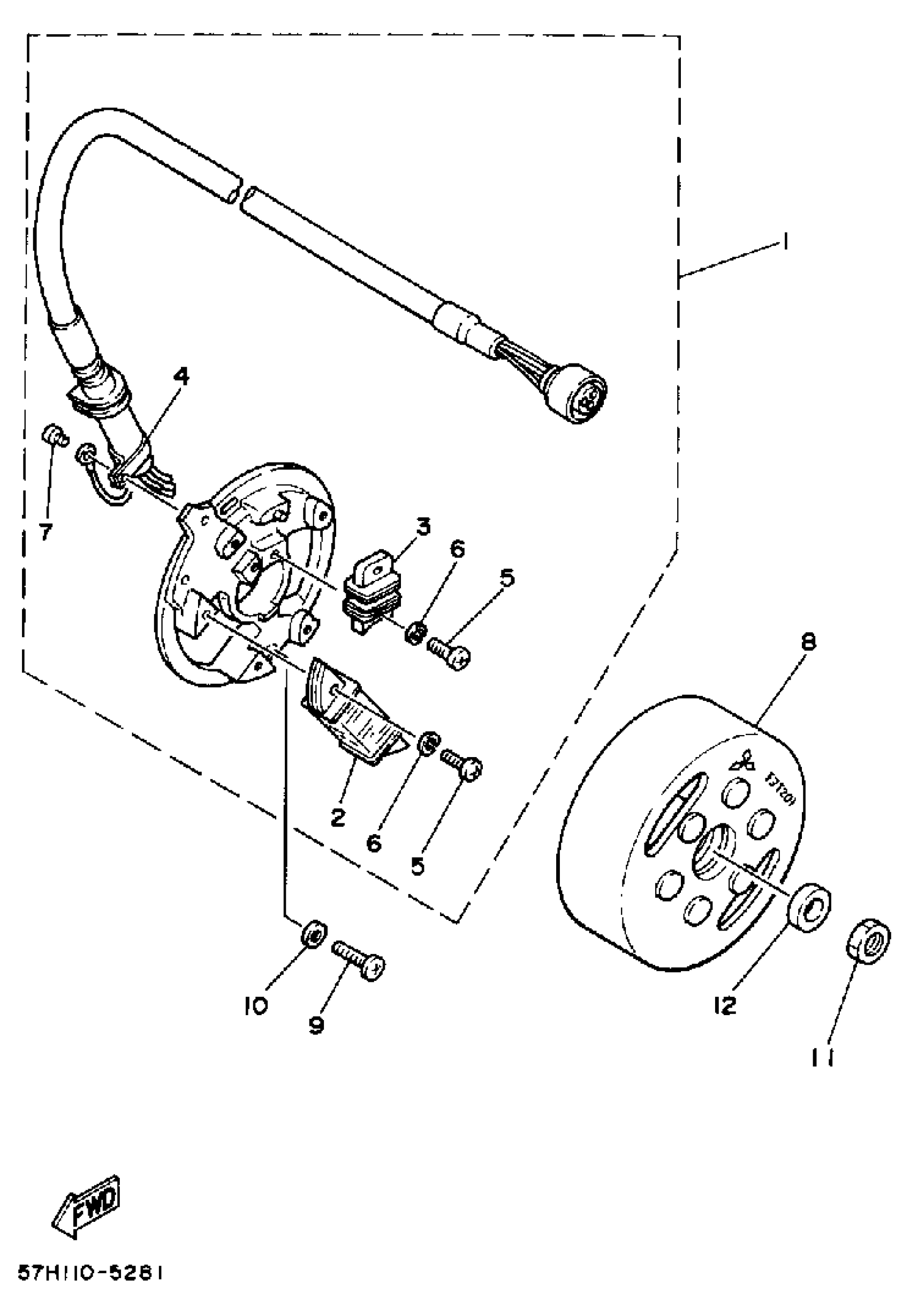

1990 Yamaha YZ490A (YZ490A) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

23X-85510-21-00

1
Out of stock

2

. COIL, CHARGE

23X-85520-21-00

1
Out of stock

3

. COIL, PULSER

23X-85580-20-00

1
Out of stock

4

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

5

SCREW, PAN HEAD

98517-04016-00

1
Out of stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

8

ROTOR ASSEMBLY

23X-85550-20-00

1
Out of stock

9

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

NUT(55K)

90170-12347-00

1

$8.43

In stock

12

WASHER, PLATE(1HR)

90201-123L6-00

1
Out of stock
