Description

Price

1

COVER, SIDE LEFT

1LX-21711-01-98

Unavailable

2

SEAL

39W-14452-00-00

Unavailable

3

SEAL

39X-14452-00-00

Unavailable

4

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

5

WASHER(6TA)

92907-06600-00

$2.72

6

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

7

SCREW, PAN

98507-06014-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

COVER, SIDE 2

1LX-21721-01-00

Unavailable

10

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

11

PAD, SEAT

22W-24741-00-00

$8.99

12

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

13

SCREW, PAN

98507-06014-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

COLLAR(47X)

90387-061M0-00

$8.49

16

SCOOP, AIR 1

43R-2137W-00-00

Unavailable

17

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

18

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

19

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

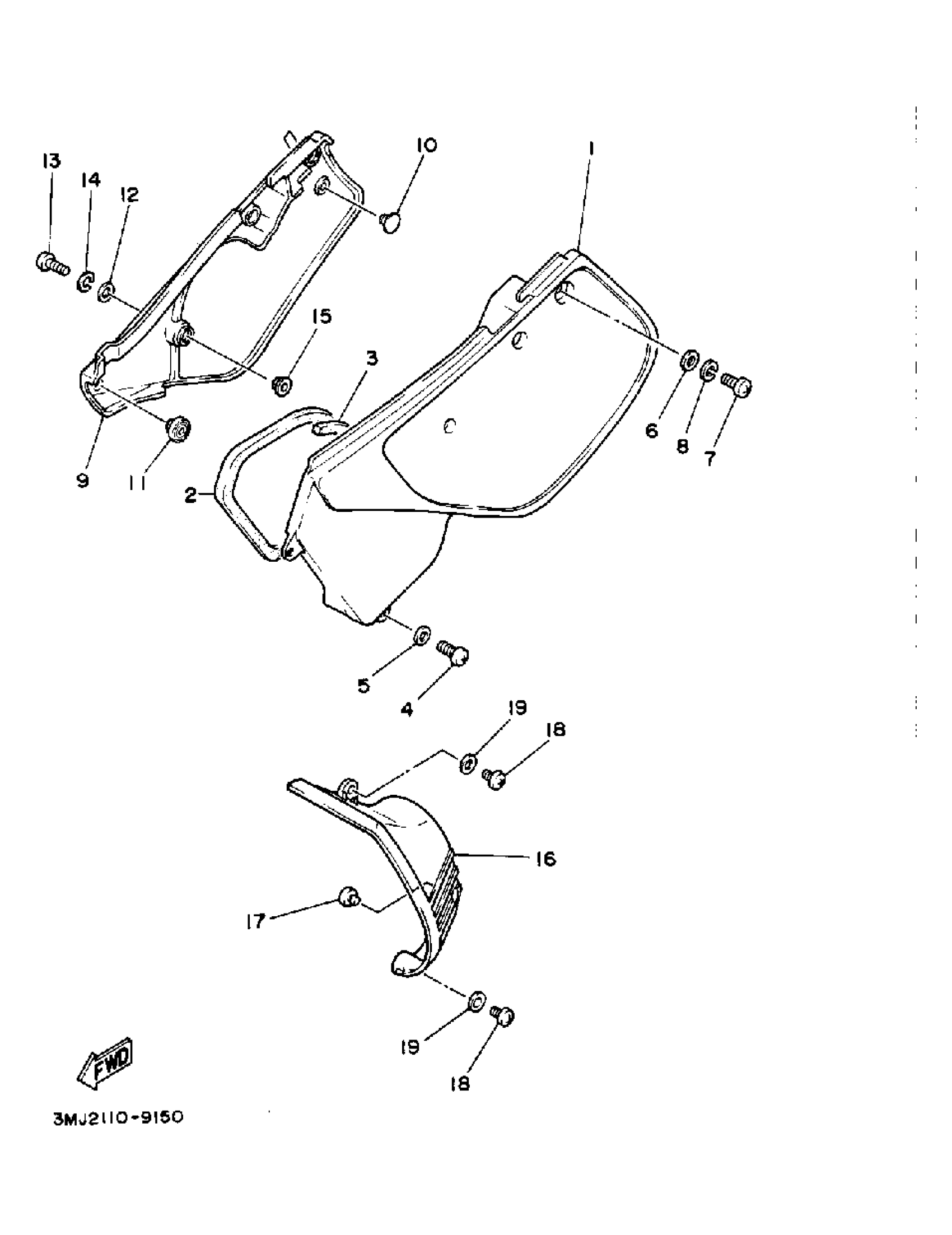

Yamaha YZ490A (YZ490A) 1990 SIDE COVER Diagram

COVER, SIDE LEFT

SEAL

SEAL

SCREW, PAN HEAD(3TJ)

WASHER(6TA)

WASHER, PLATE (583 REAR FENDER

SCREW, PAN

WASHER, SPRING

COVER, SIDE 2

DAMPER, LOCATING 1

PAD, SEAT

WASHER, PLATE (583 REAR FENDER

SCREW, PAN

WASHER, SPRING

COLLAR(47X)

SCOOP, AIR 1

DAMPER, LOCATING 1

SCREW, PAN HEAD(3TJ)

WASHER, PLATE (4L0)
