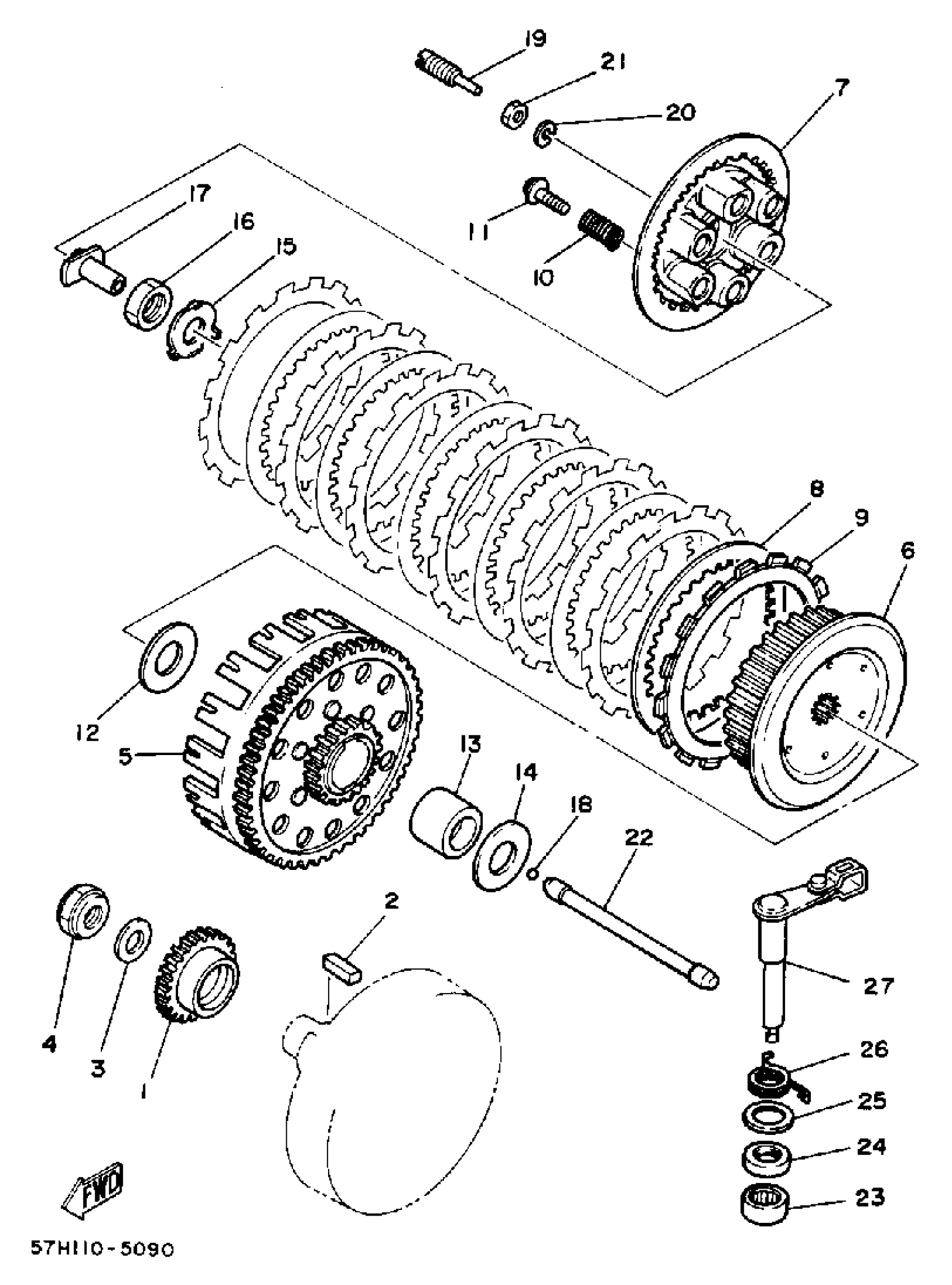

Yamaha YZ490A (YZ490A) 1990 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

23X-16111-00-00

Unavailable

2

KEY, STRAIGHT (498)

90282-07019-00

$10.49

3

WASHER, PLATE(39X)

90201-186H3-00

Unavailable

4

NUT, SELF-LOCKING

90185-18126-00

Unavailable

5

PRIMARY DRIVEN GEAR COMP

39X-16150-00-00

Unavailable

6

BOSS, CLUTCH

23X-16371-00-00

Unavailable

7

PLATE, PRESSURE 1

23X-16351-00-00

Unavailable

8

PLATE, CLUTCH 2

168-16325-10-00

$14.49

9

PLATE, FRICTION

5X5-16321-00-00

$32.99

10

SPRING, COMPRESSION (510)

90501-24408-00

$5.60

11

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

12

PLATE, THRUST

2K7-16154-00-00

$20.99

13

SPACER 1

2K7-16181-00-00

Unavailable

14

PLATE, THRUST

2K7-16154-00-00

$20.99

15

WASHER, LOCK (26J)

90215-20212-00

Unavailable

16

NUT (3R4)

90170-20255-00

Unavailable

17

ROD, PUSH 1

23X-16356-00-00

Unavailable

18

BALL (1M1)

93515-32029-00

Unavailable

19

SCREW

90149-06179-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

ROD, PUSH 2 001

3R5-16357-01-00

Unavailable

23

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

Unavailable

24

OIL SEAL (15A)

93102-17263-00

Unavailable

25

WASHER PLATE 168217580000

90201-18262-00

Unavailable

26

SPRING, TORSION

90508-14423-00

Unavailable

27

PUSH LEVER ASSEMBLY

1LV-16380-00-00

Unavailable
