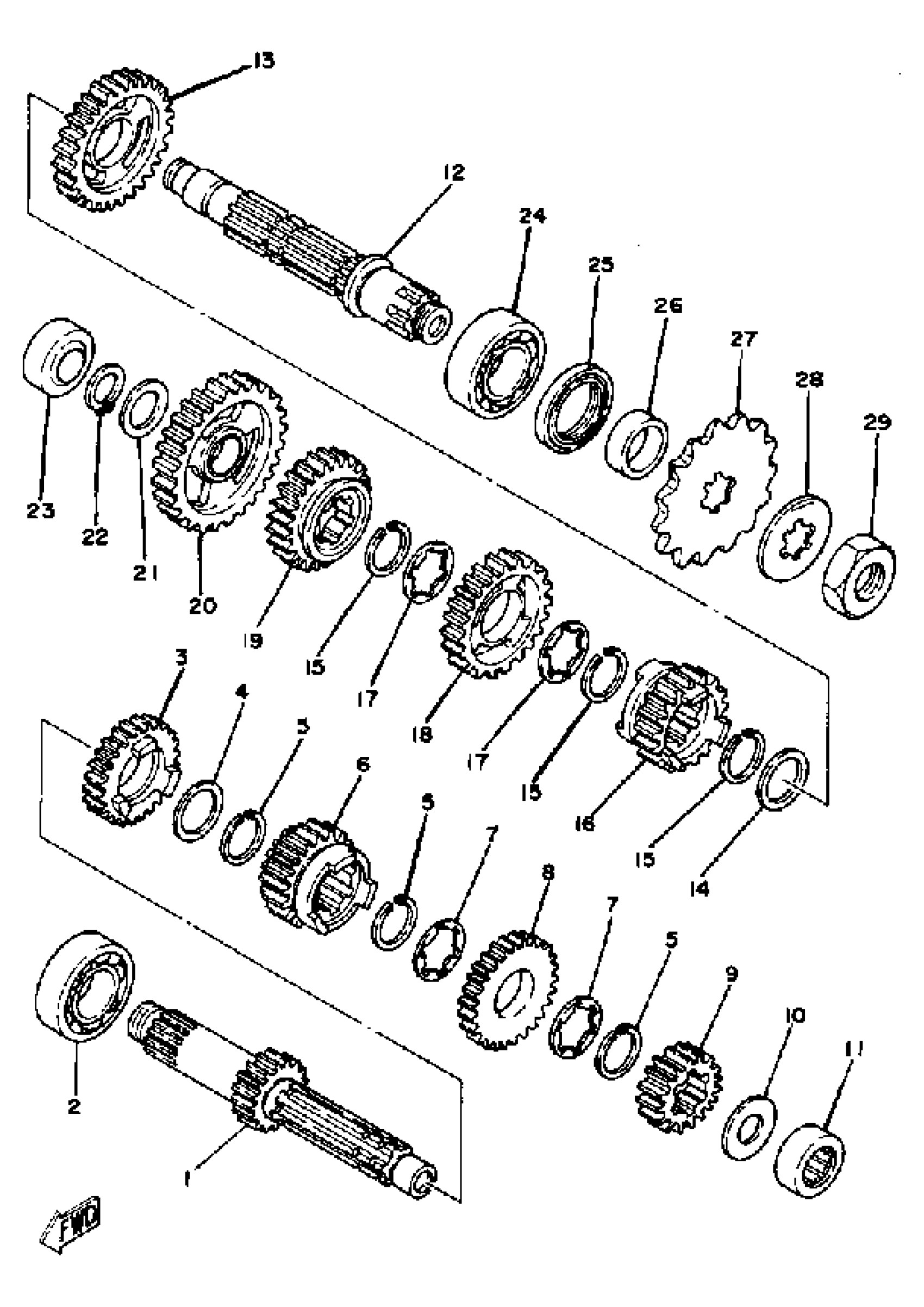

Yamaha YZ465H (YZ465H) 1981 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

3R5-17411-00-00

Unavailable

2

BEARING (3R5)

93306-20540-00

$57.99

3

GEAR, 4TH PINION

3R5-17141-01-00

Unavailable

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

GEAR, 3RD PINION

3R5-17131-02-00

Unavailable

7

WASHER 434172160000

90209-22082-00

Unavailable

8

GEAR, 5TH PINION

3R5-17151-00-00

Unavailable

9

GEAR, 2ND PINION

3R5-17121-01-00

Unavailable

10

WASHER PLATE 168171160000

90201-20278-00

$10.49

10

WASHER

90209-20213-00

Unavailable

11

BEARING (2X7)

93311-62035-00

$57.99

12

AXLE, DRIVE

3R5-17421-00-00

Unavailable

13

GEAR, 2ND WHEEL

3R5-17221-00-00

Unavailable

14

WASHER, PLATE(59W)

90201-253K0-00

$8.49

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

GEAR, 5TH WHEEL

3R5-17251-01-00

Unavailable

17

WASHER 434172160000

90209-22082-00

Unavailable

18

GEAR, 3RD WHEEL

3R5-17231-03-00

Unavailable

18

GEAR, 3RD WHEEL

3R5-17231-03-00

Unavailable

19

GEAR, 4TH WHEEL

2X5-17241-01-00

Unavailable

20

GEAR, 1ST WHEEL

3R5-17211-01-00

Unavailable

21

WASHER PLATE 168171160000

90201-20278-00

$10.49

22

CIRCLIP (525)

93410-20038-00

Unavailable

23

BEARING (2X7)

93311-62035-00

$57.99

24

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

25

OIL SEAL (697)

93102-32M07-00

Unavailable

26

COLLAR (2K7)

90387-25663-00

Unavailable

27

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

27

SPROCKET, DRIVE

93834-14051-00

Unavailable

27

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

28

WASHER, LOCK (23X)

90215-21239-00

Unavailable

29

NUT (2K7)

90179-20255-00

Unavailable
