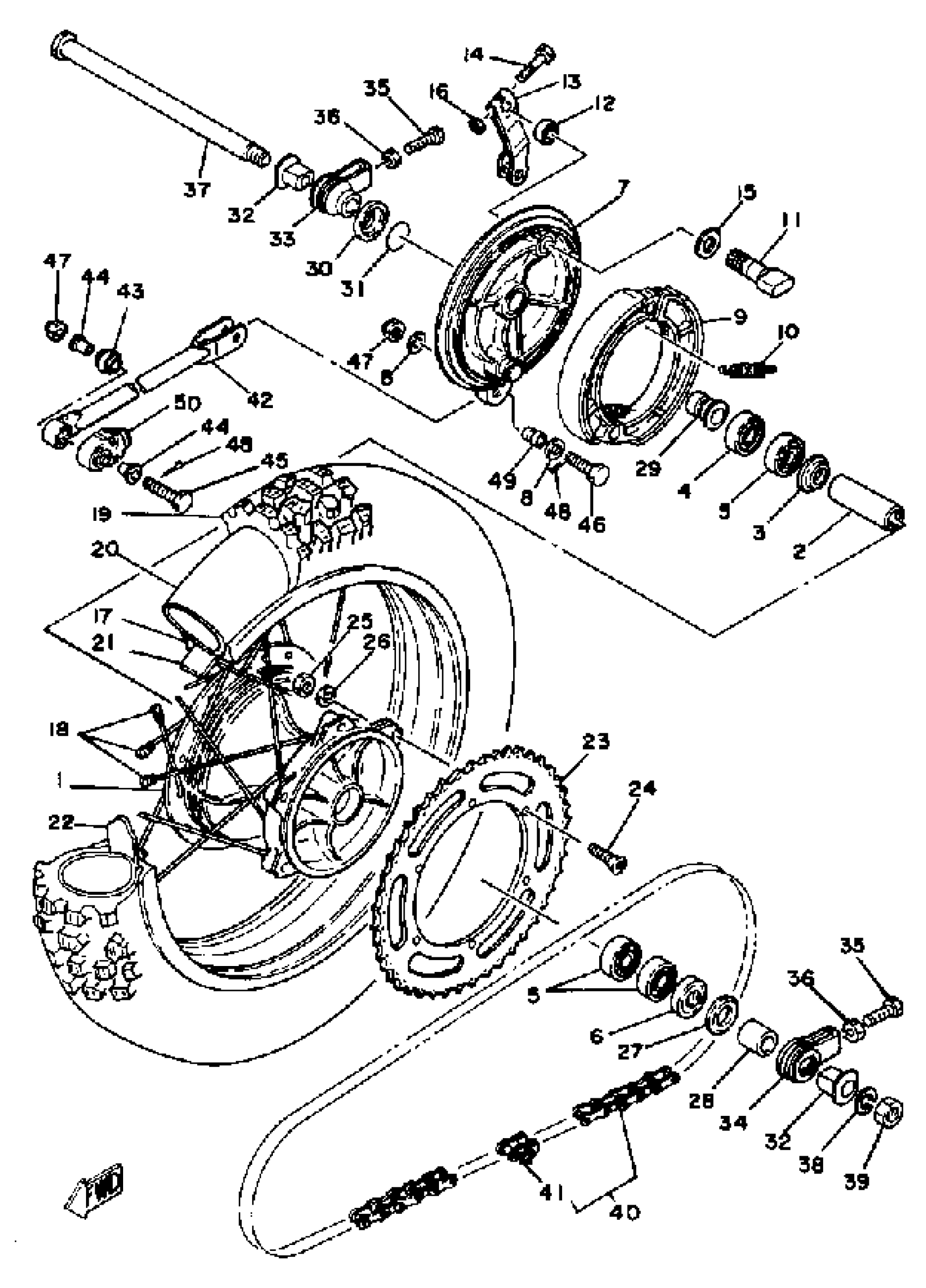

Yamaha YZ465H (YZ465H) 1981 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4V4-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

FLANGE, SPACER

4V4-25315-00-00

Unavailable

4

BEARING(8AB)

93306-00444-00

$41.99

5

BEARING(3BN)

93306-00438-00

$37.99

6

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

7

PLATE, BRAKE SHOE

4V4-25321-00-98

Unavailable

8

OIL SEAL

93104-12003-00

$8.49

9

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

10

SPRING, TENSION 2462533300

90507-20002-00

$8.49

11

CAMSHAFT

1E6-25151-00-00

Unavailable

12

SEAL, CAM SHAFT

148-25359-00-00

$4.78

13

LEVER, CAMSHAFT

4V4-25355-00-00

Unavailable

14

BOLT, HEXAGON (538)

90101-06278-00

$2.17

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

RIM 2.50X18

(94425-18282-00)

Unavailable

18

SPOKE SET, REAR

4V4-25304-00-00

Unavailable

19

150/80-18 M2A (TT) (94151-18684) (4.50-18-4PR)

94115-186A2-00

Unavailable

20

TUBE

94245-18125-00

Unavailable

21

BAND, RIM (2J4)

94340-18086-00

Unavailable

22

SPACER, BEAD

2X5-25394-00-00

Unavailable

23

SPROCKET, DRIVEN 44T

3R4-25444-01-XX

Unavailable

23

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

23

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

23

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

23

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

24

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

25

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

26

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

27

COVER, HUB DUST

4V4-25367-00-00

Unavailable

28

COLLAR

(90387-201E4-00)

Unavailable

29

COLLAR

(90387-201E3-00)

Unavailable

30

COVER, PLATE

4V4-25327-00-00

Unavailable

31

O-RING

93210-33481-00

Unavailable

32

BUSH, SOLID

90381-20036-00

Unavailable

33

PULLER, CHAIN 2

4V4-25389-00-00

Unavailable

34

PULLER, CHAIN 1

4V4-25388-00-00

Unavailable

35

BOLT

90101-08060-00

Unavailable

36

. NUT

95380-08700-00

Unavailable

37

AXLE, WHEEL

4V4-25381-01-00

Unavailable

38

WASHER(N15)

92907-18100-00

Unavailable

39

NUT, HEXAGON

90170-18275-00

Unavailable

40

520 DS 108L (520DS-108L)

94585-20108-00

Unavailable

41

JOINT, CHAIN

94681-68001-00

Unavailable

42

BAR, TENSION

(3R5-25371-01-00)

Unavailable

43

BEARING, SPECIAL

93399-99906-00

Unavailable

44

COLLAR

90387-082E1-00

Unavailable

45

BOLT, WITH HOLE

90102-08034-00

Unavailable

46

BOLT, WITH HOLE

90102-08043-00

Unavailable

47

NUT, U

95617-08100-00

Unavailable

48

PIN, COTTER

91490-20025-00

Unavailable

49

COLLAR

90387-08699-00

Unavailable

50

CAP

4V4-25335-00-00

Unavailable
