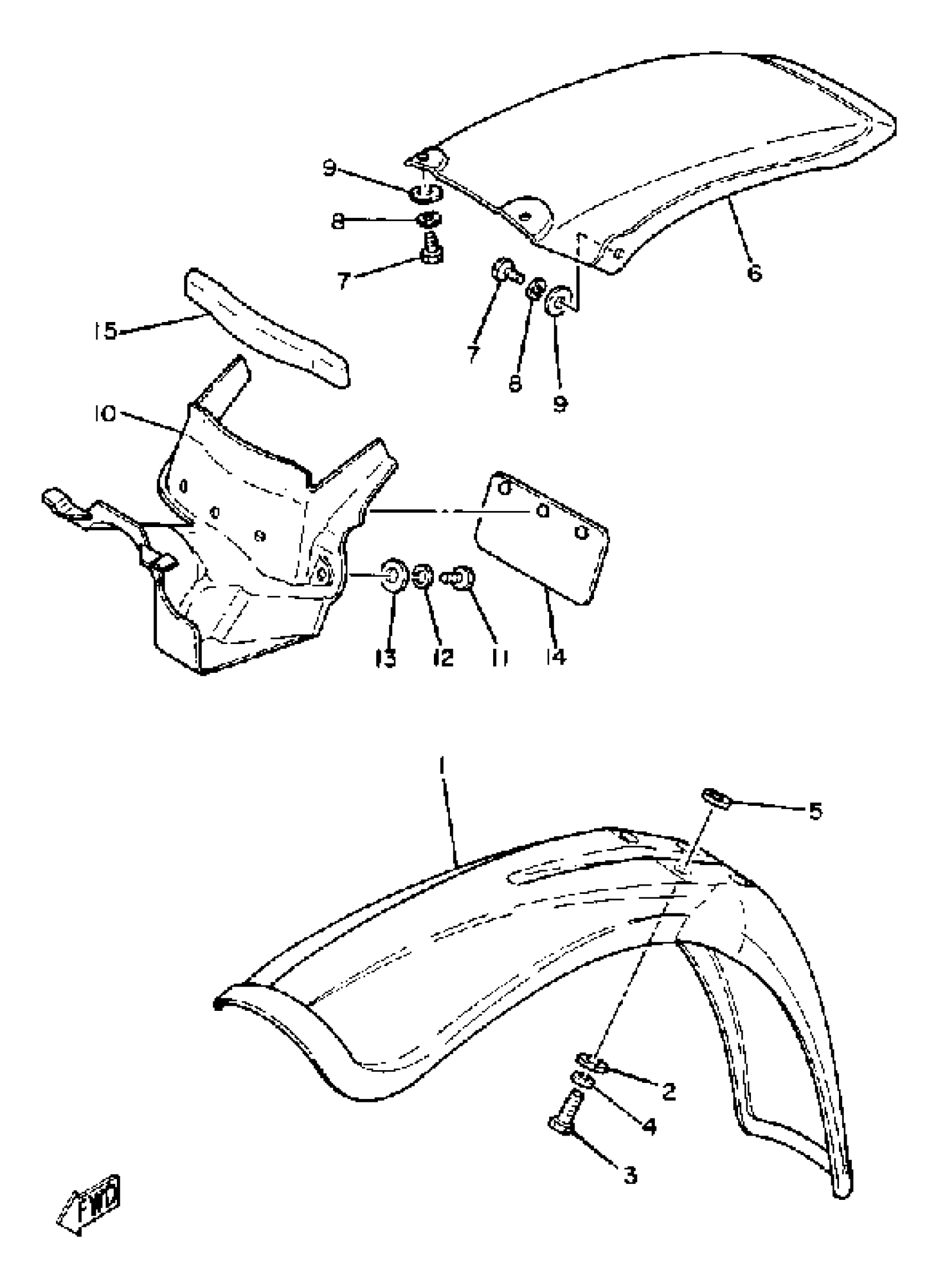

Yamaha YZ465H (YZ465H) 1981 FRONT FENDER - REAR FENDER Diagram

#

Description

Price

1

FENDER, FRONT

3R2-21511-01-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.54

3

BOLT(3DM)

97024-06020-00

$5.75

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER (3R8)

90209-06187-00

$5.76

6

FENDER, REAR

3R4-21611-00-00

$68.16

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, SPRING

92995-06100-00

$2.95

9

WASHER, PLATE

90201-06380-00

$0.54

10

GUARD, MUD

3R4-21629-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

12

WASHER, SPRING

92995-06100-00

$2.95

13

WASHER, PLATE

90201-06380-00

$0.54

14

FLAP

1M1-21621-00-00

$12.80

15

. DAMPER

565-21746-00-00

Unavailable
