1981 Yamaha YZ465H (YZ465H) Frame - Tool Diagram

← All diagrams

Find the part on the Frame - Tool diagram for your 1981 Yamaha YZ465H (YZ465H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

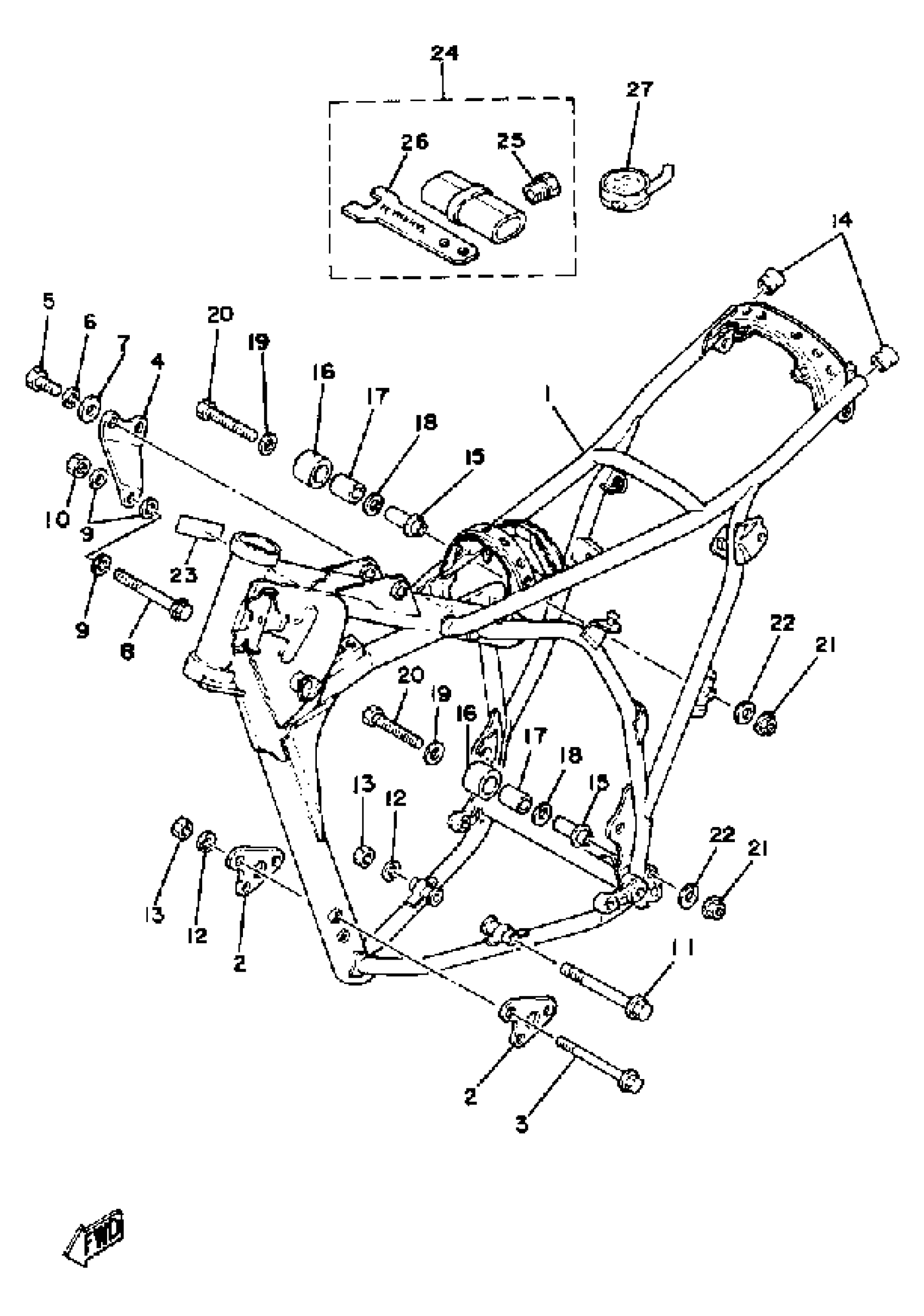

1981 Yamaha YZ465H (YZ465H) Frame - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, REAR UPR 1

4V4-21425-00-00

1
Out of stock

2

BRACKET, FRT UPR 1

3R4-21415-00-00

1
Out of stock

3

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

4

BRACKET, REAR UPR 1

4V4-21425-00-00

1
Out of stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

9

1

$3.00

In stock

10

NUT, U

95617-10100-00

1
Out of stock

11

BOLT, WASHER BASED

90105-08473-00

1
Out of stock

12

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

13

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

14

PLUG (2K5)

90339-13005-00

1

$3.57

In stock

15

SHAFT

2K7-2148A-00-00

1
Out of stock

16

TENSIONER

30X-22178-00-00

—
Out of stock

17

BUSH

4V4-22184-00-00

—

$3.57

In stock

18

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

19

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

20

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

21

NUT, NYLON

95717-08300-00

—

$2.57

In stock

22

WASHER, PLATE

90201-08638-00

1
Out of stock

23

COVER

(3R4-2139W-00-00)

1
Out of stock

24

TOOL KIT

(5X5-28100-00-00)

1
Out of stock

25

PULLER, ROTOR

(2K7-85555-00-00)

1
Out of stock

26

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock

27

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
