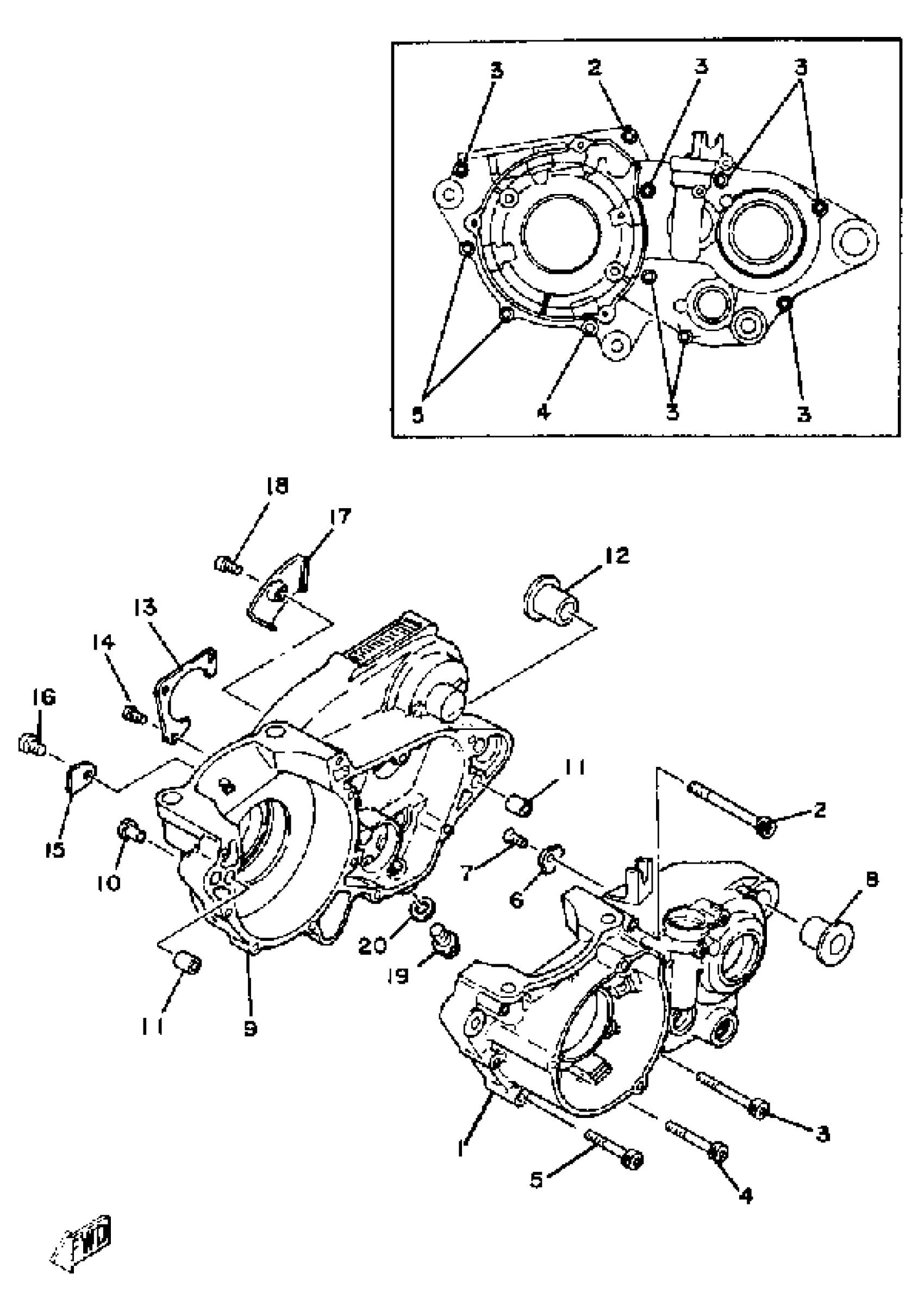

Yamaha YZ465H (YZ465H) 1981 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET (3R5)

99999-01366-00

Unavailable

2

BOLT, SOCKET

91317-06075-00

$5.60

3

BOLT,SOCKET

91317-06060-00

$3.76

4

BOLT,SOCKET

91317-06050-00

$3.88

5

BOLT,SOCKET

91317-06045-00

$4.99

6

PLATE, BEARING COVER

3AK-15383-01-00

$8.99

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

8

COLLAR

90387-16776-00

Unavailable

9

CRANKCASE SET (3R5)

99999-01366-00

Unavailable

10

PLUG (17J)

90338-07124-00

$10.49

11

PIN, DOWEL

99530-12016-00

$4.89

12

COLLAR

90387-16776-00

Unavailable

13

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

HOLDER

4V4-15118-00-00

$29.99

16

SCREW PAN HEAD

98580-06010-00

Unavailable

17

PLATE

3R4-15113-00-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

20

GASKET (3JD1)

90430-12207-00

Unavailable
