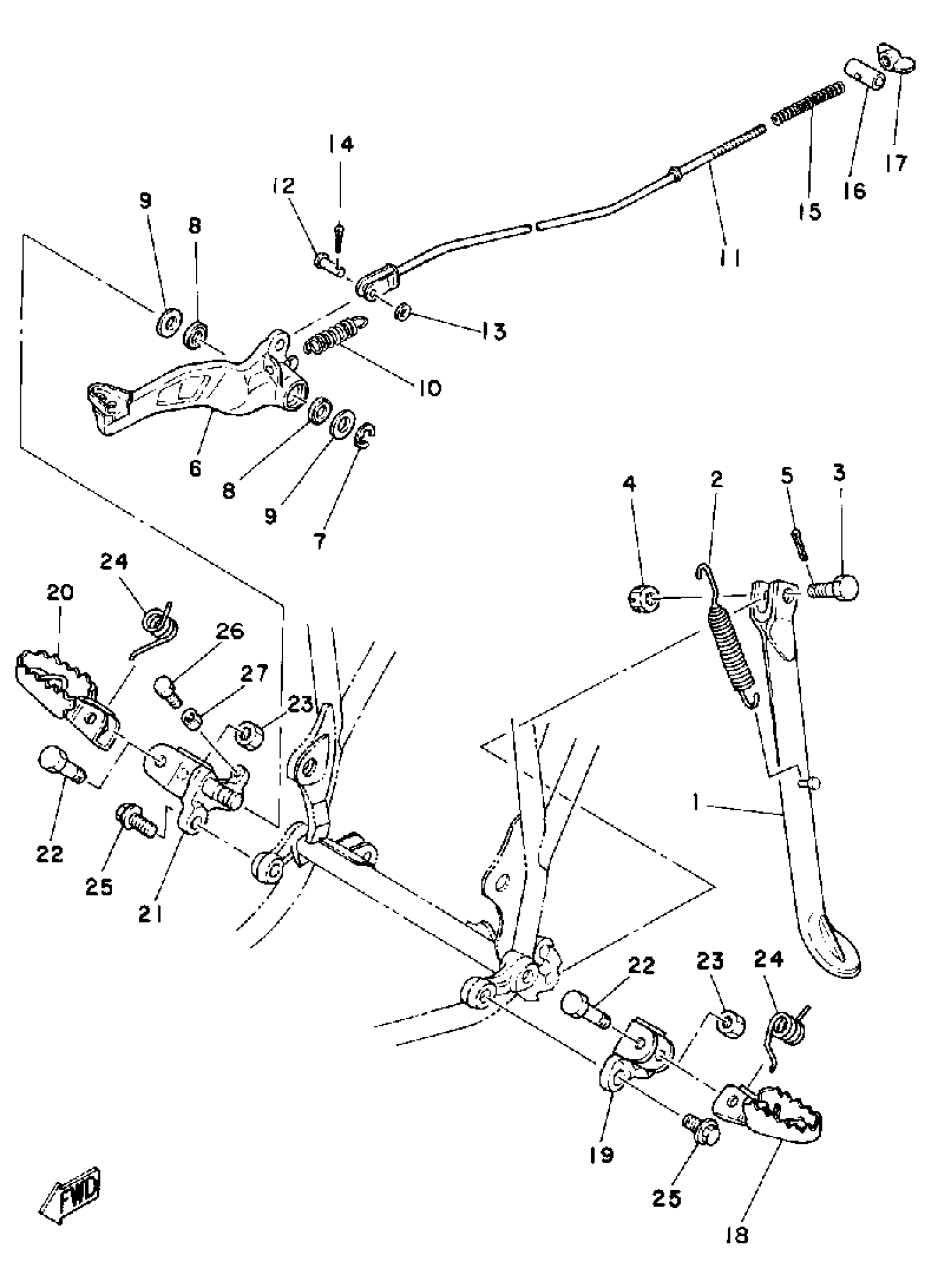

Yamaha YZ465G (YZ465G) 1980 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

3R4-27311-00-33

Unavailable

2

SPRING (434)

90507-29008-00

$28.99

3

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

4

NUT, CASTLE

95307-10900-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

PEDAL, BRAKE (3R4-27200-00) (250H)

3R4-27200-01-00

Unavailable

7

CIRCLIP (137)

93430-10015-00

$9.49

8

OIL SEAL (2K8)

93109-14021-00

$13.49

9

WASHER, PLAIN (434)

90201-14411-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

11

ROD, BRAKE

2X4-27231-01-00

Unavailable

12

PIN, CLEVIS (24X)

90240-06103-00

$7.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PIN, COTTER

91490-20025-00

$1.99

15

SPRING, (180-27236-00)

90501-10245-00

$8.49

16

PIN 1562723700

90249-12008-00

Unavailable

17

NUT (25K)

90179-06411-00

Unavailable

18

FOOTREST 1

22W-27411-01-90

Unavailable

19

BRACKET, FOOTREST 1

2X4-27412-00-00

Unavailable

20

FOOTREST 2

22W-27421-01-90

Unavailable

21

BRACKET, FOOTREST 2

2X4-27422-00-00

Unavailable

22

BOLT (2W6)

90101-08428-00

Unavailable

23

NUT, U

95617-08100-00

Unavailable

24

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

25

BOLT, WASHER BASED

90105-12096-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable
