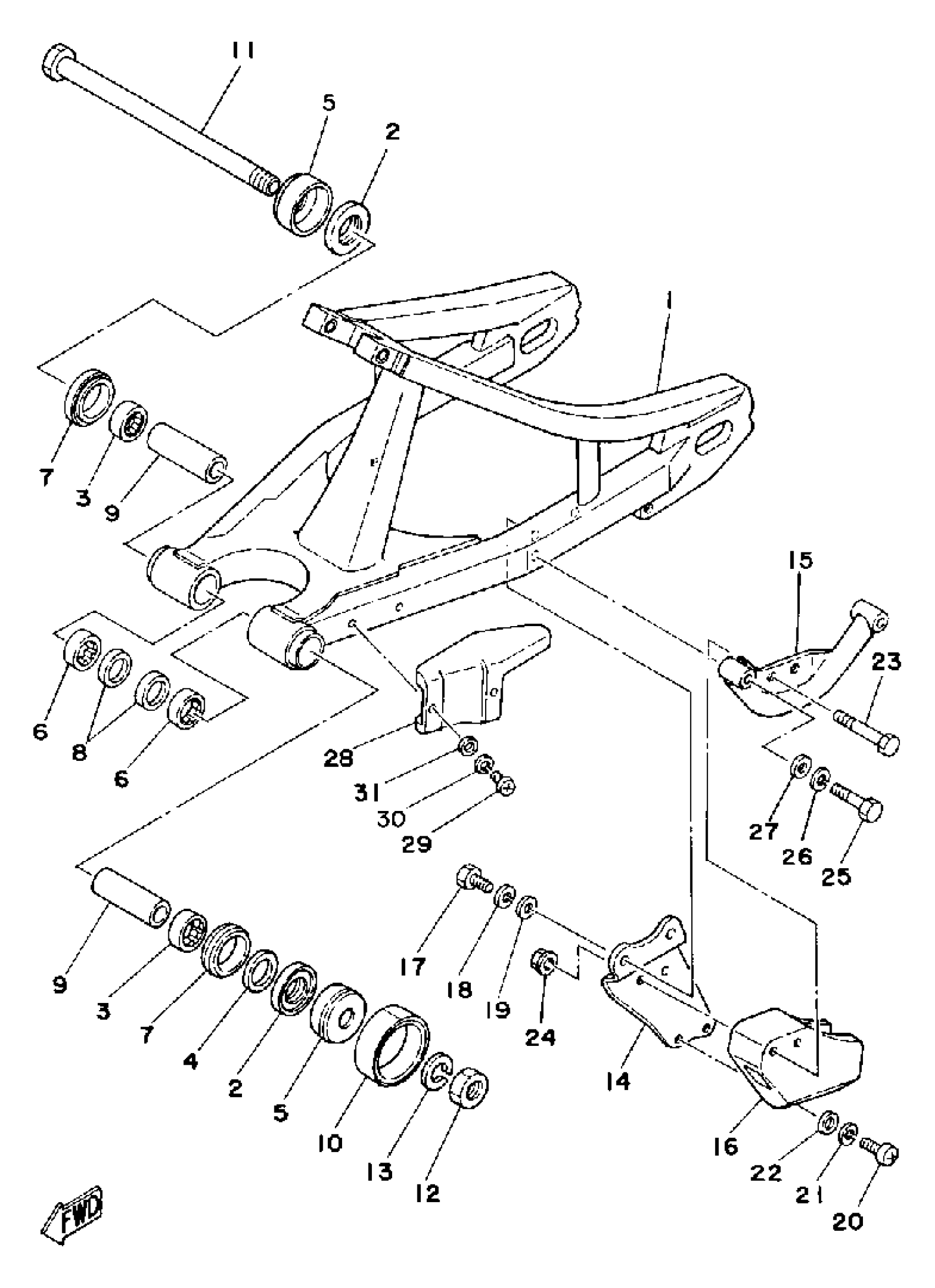

Yamaha YZ465G (YZ465G) 1980 REAR ARM Diagram

#

Description
Price

1

REAR ARM

(3R5-22110-00-35)

Unavailable

2

BEARING, THRUST (3R7)

93342-22208-00

$33.99

3

BRG,CYL-CAL ROLLER 14.5G TM

93317-22214-00

$47.99

4

WASHER, PLATE

90201-22284-04

$2.82

5

COVER, THRUST2

3R4-22129-00-00

$32.99

6

BUSH, SPEC''L NYLON

90386-22097-00

Unavailable

7

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

8

OIL SEAL, SDO-TYPE

93109-22018-00

Unavailable

9

BUSH, SOLID (3R4)

90380-16077-00

$42.99

10

SEAL, GUARD

431-22151-03-00

$27.99

11

SHAFT, PIVOT

5X6-22141-01-00

Unavailable

12

NUT

90170-16111-00

Unavailable

13

WASHER(JN5)

92907-16100-00

$14.99

14

ARM, TENSIONER

2X4-22179-00-00

Unavailable

15

GUARD, CHAIN

3R5-22153-00-00

Unavailable

16

SUPPORT, CHAIN

2X4-22199-00-00

Unavailable

17

BOLT(JA9)

90101-08691-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

SCREW PAN HEAD

98580-06020-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

BOLT, HEXAGON

97013-06050-00

Unavailable

24

NUT, NYLON

95707-06300-00

Unavailable

25

BOLT

97013-08035-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

PROTECTOR, CHAIN

3R4-22147-00-00

Unavailable

29

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

30

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

31

. WASHER, PLAIN

92990-05200-00

Unavailable
