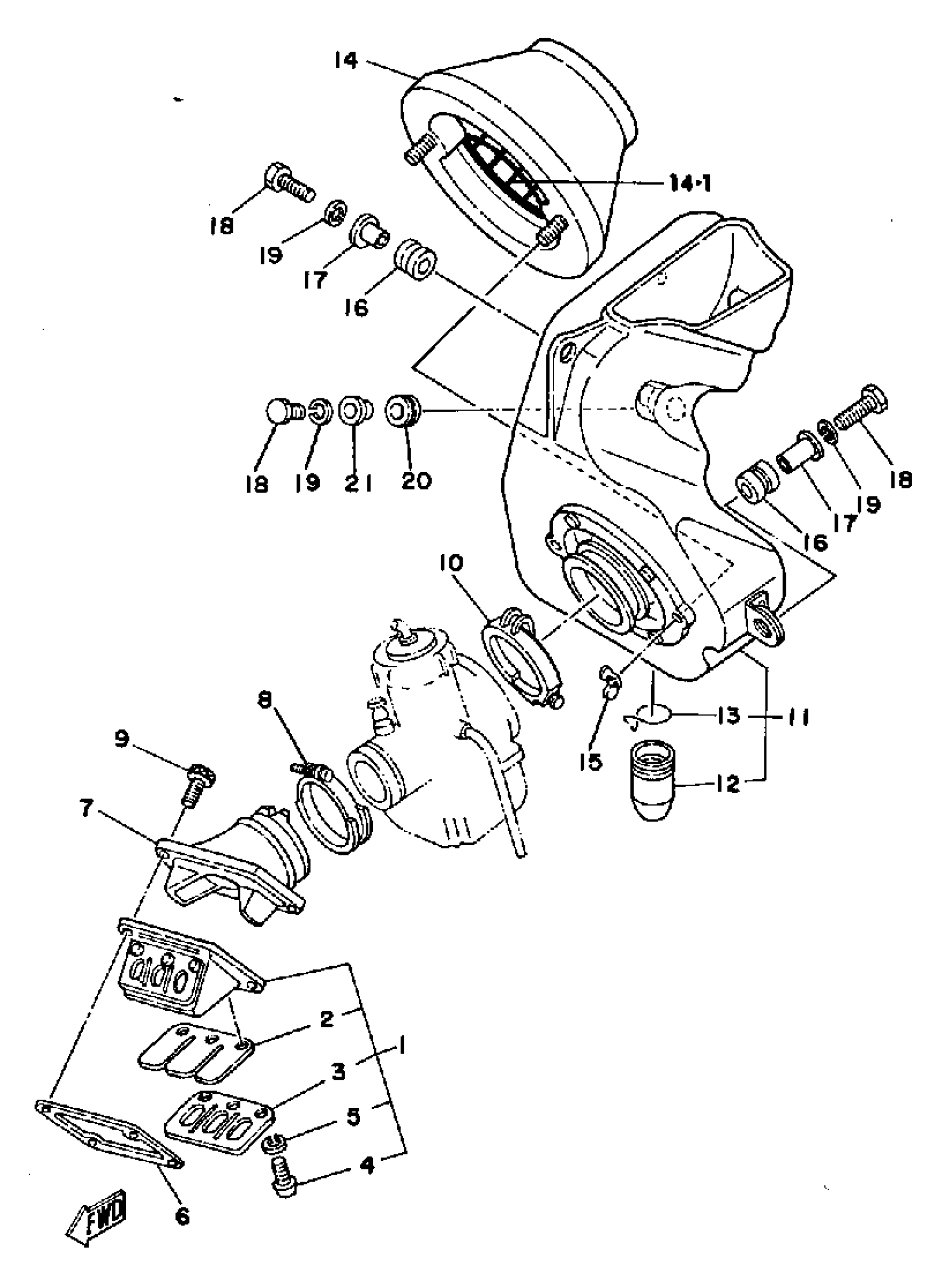

Yamaha YZ465G (YZ465G) 1980 INTAKE Diagram
#
Description
Price
1
REED VALVE ASSEMBLY
3R5-13610-00-00
Unavailable
3
. STOPPER, REED VALVE
2X5-13616-00-00
Unavailable
8
CLAMP, HOSE
90460-51109-00
Unavailable
9
BOLT,SOCKET
91317-06020-00
Unavailable
10
CLAMP, HOSE
90460-68231-00
Unavailable
11
AIR CLNR CASE ASSEMBLY
3R4-14401-00-00
Unavailable
12
SEAL
1W4-14457-00-00
Unavailable
13
CLIP
90467-20M15-00
Unavailable
14
ELEMENT, AIR CLNR
3R4-W1442-01-00
Unavailable
16
GROMMET 839774310000
90480-14023-00
Unavailable
17
COLLAR 437216330000
90387-07391-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
GROMMET (1E6)
90480-15058-00
Unavailable
21
COLLAR
90387-07562-00
Unavailable
