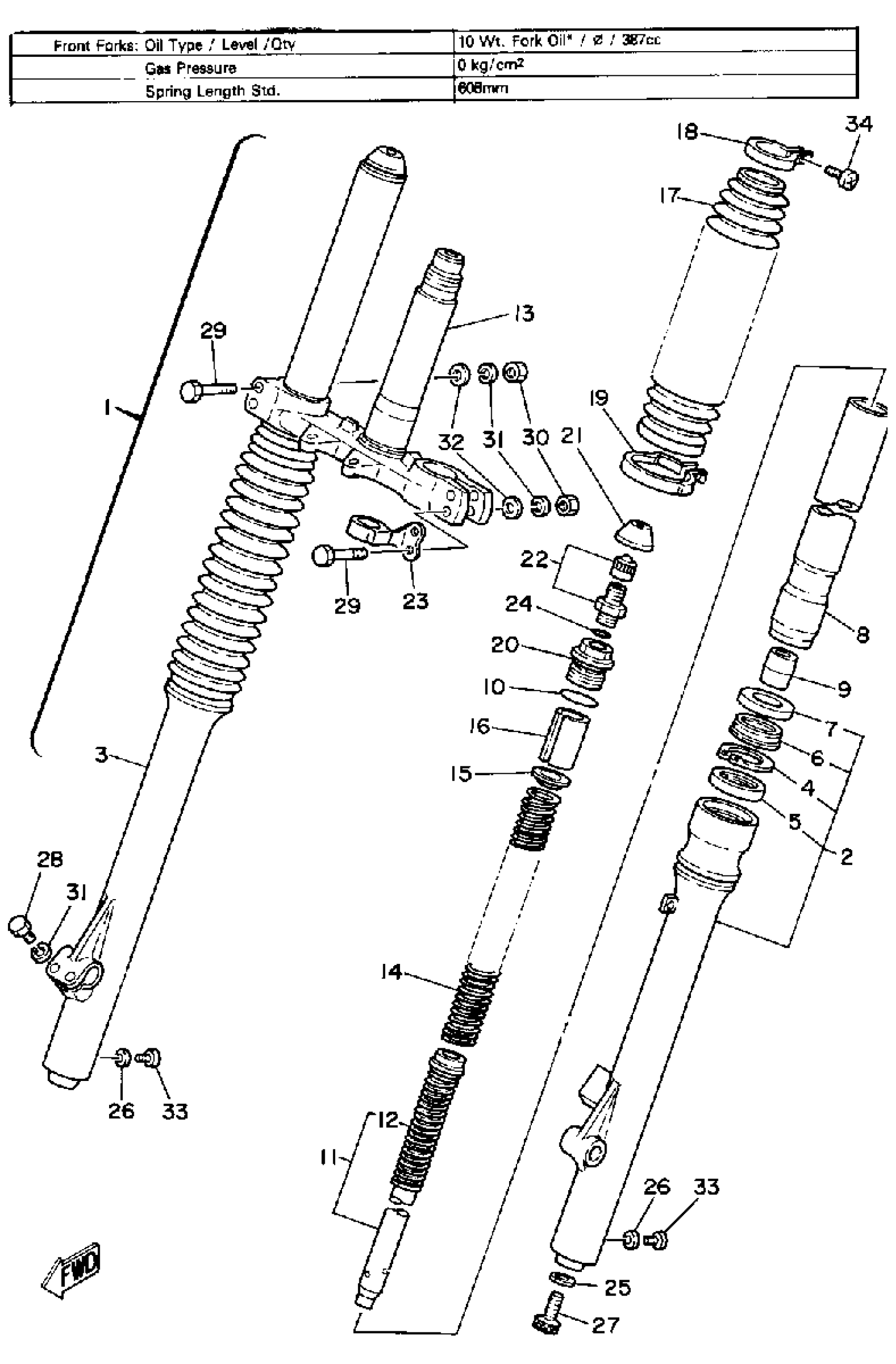

Yamaha YZ465G (YZ465G) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3R4-23101-L0-00)

Unavailable

2

TUBE, OUTER 1

(3R4-23126-L0-00)

Unavailable

3

TUBE, OUTER 2

(3R4-23136-L0-00)

Unavailable

4

RING, SNAP

3R4-23153-00-00

$8.99

5

OIL SEAL

3EN-23145-00-00

$25.99

6

.. SEAL, DUST

3R4-23144-00-00

Unavailable

7

.. COVER, DUST SEAL

3R4-23148-00-00

Unavailable

8

TUBE, INNER 1

(3R4-23124-L0-00)

Unavailable

9

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

10

O-RING

1W4-23114-L0-00

$7.99

11

CYLINDER, FRTFRK

(3R4-23170-L0-00)

Unavailable

12

FRONT FORK ASSEMBLY

(2K8-23101-L0-00)

Unavailable

13

UNDER BRACKET

(2X4-23340-L0-33)

Unavailable

14

SPRING, FRONT FORK

(3R4-23141-10-00)

Unavailable

14

SPRING, FRONT FORK

(3R4-23141-20-00)

Unavailable

14

SPRING, FRONT FORK

(3R4-23141-L0-00)

Unavailable

15

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

16

SPACER

(1W4-23118-L0-00)

Unavailable

17

. BOOT, FRONT FORK

5X8-23191-L1-00

Unavailable

18

BAND, BOOT

341-92090-60-00

Unavailable

19

BAND

1W4-23489-L0-00

Unavailable

20

. BOLT, CAP

1W4-23111-L1-00

Unavailable

21

.. CAP, FRONT FORK

1W1-23168-L0-00

Unavailable

22

. AIR VALVE

509-23190-L0-00

Unavailable

23

GUIDE, WIRE

3R4-23389-00-00

Unavailable

24

. O-RING

509-23163-L0-00

Unavailable

25

GASKET

2K8-23158-L0-00

Unavailable

26

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

27

BOLT

3R4-23181-L0-00

Unavailable

28

BOLT, AXLE HOLDER

(1W4-23128-L0-00)

Unavailable

29

BOLT (1E6)

90101-08340-00

Unavailable

30

NUT(6L2)

95333-08600-00

Unavailable

31

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

32

.. WASHER, PLATE

92990-08600-00

Unavailable

33

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

34

SCREW

509-23194-L0-00

Unavailable
