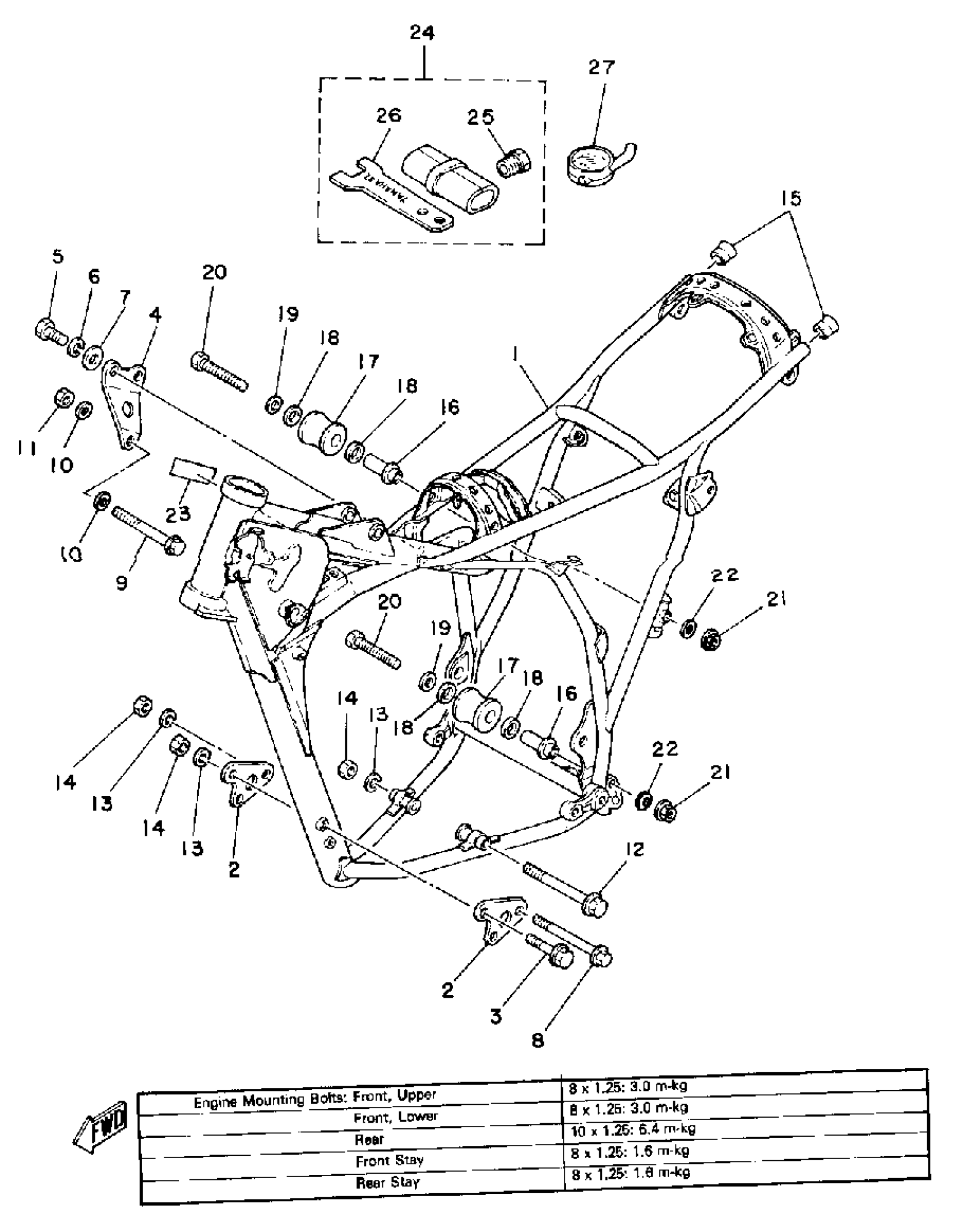

Yamaha YZ465G (YZ465G) 1980 FRAME - TOOL Diagram

#

Description
Price

1

FRAME

(3R4-21110-00-33)

Unavailable

2

BRACKET, FRT UPR 1

3R4-21415-00-00

Unavailable

3

BOLT, FLANGE

95817-08075-00

$4.82

4

BRACKET, REAR UPR 1

3R5-21425-00-00

Unavailable

5

BOLT, HEXAGON

97017-08025-00

$10.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

BOLT, FLANGE

95817-08075-00

$4.82

9

BOLT, FLANGE(87Y)

95817-10055-00

$5.60

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

NUT, U

95617-10100-00

$8.49

12

BOLT, WASHER BASED

90105-08473-00

Unavailable

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

15

PLUG (2K5)

90339-13005-00

$4.29

16

SHAFT

2K7-2148A-00-00

Unavailable

17

TENSIONER

2K6-22178-00-00

Unavailable

18

WASHER, PLATE

90201-13013-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

BOLT, HEXAGON

97013-08055-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

COVER

(3R4-2139W-00-00)

Unavailable

24

TOOL KIT

(5X5-28100-00-00)

Unavailable

25

PULLER, ROTOR

(2K7-85555-00-00)

Unavailable

26

SPANNER, SPECIAL

10V-28135-00-00

Unavailable

27

GAUGE, AIR

2X4-2811A-01-00

Unavailable
