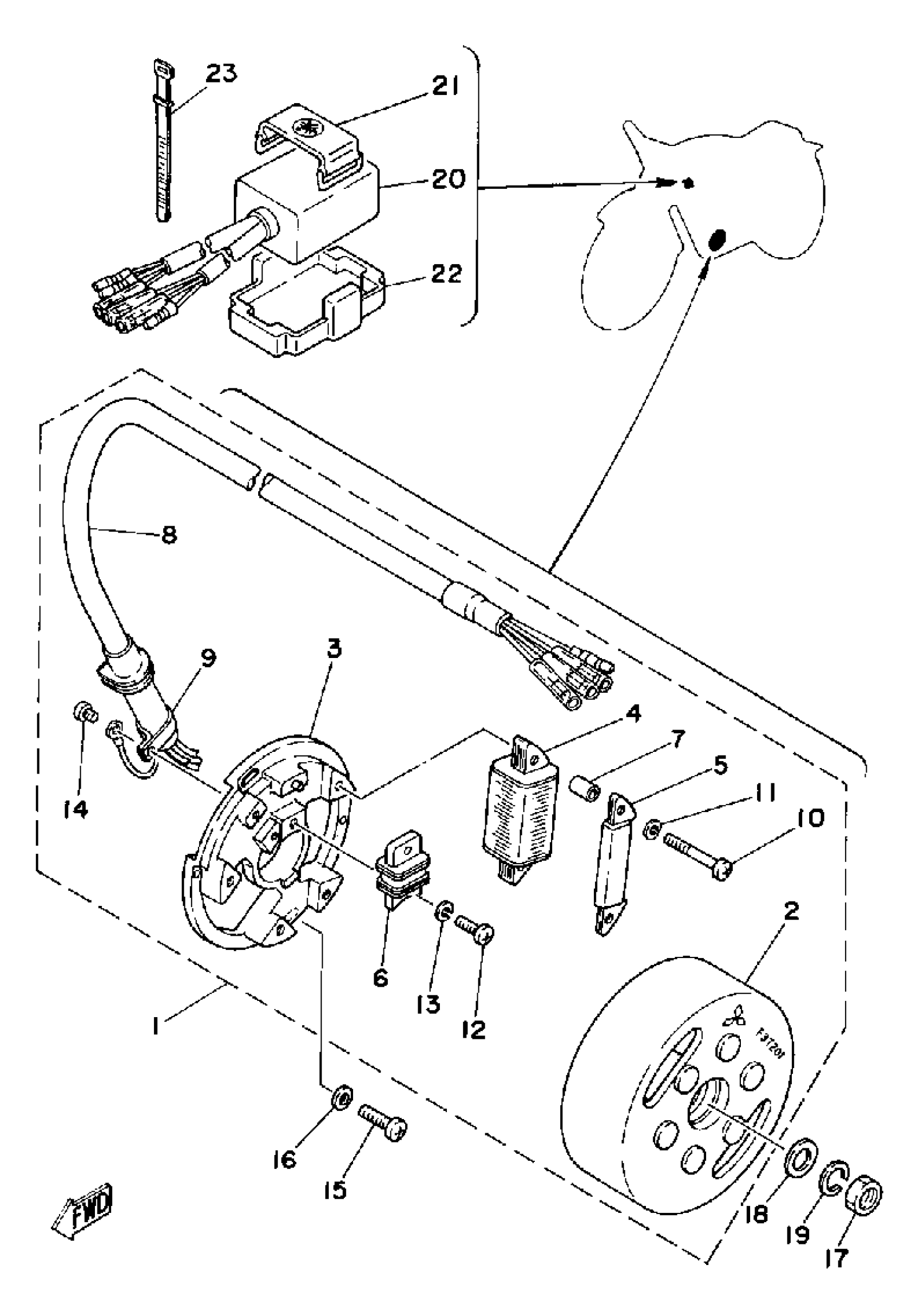

Yamaha YZ465G (YZ465G) 1980 C - D - I MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

3R5-85500-20-00

Unavailable

2

. ROTOR ASSEMBLY

3R5-85550-20-00

Unavailable

3

. BASE, MAGNETO

3R5-85509-20-00

Unavailable

4

. COIL SOURCE 1

3R5-85511-20-00

Unavailable

5

. COIL SOURCE 2

3R5-85512-20-00

Unavailable

6

. COIL, PULSER

4V6-85580-20-00

Unavailable

7

. SPACER

1W2-85516-20-00

Unavailable

8

LEAD WIRE ASSEMBLY

(5L5-85515-20-00)

Unavailable

9

CLAMP, LEAD

104-81328-20-00

$6.99

10

SCREW, PAN HEAD(MK5)

98507-04035-00

$8.49

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

15

SCREW PAN HEAD

98580-06020-00

$8.49

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

NUT, HEXAGON (525)

90170-12181-00

Unavailable

18

WASHER, PLATE (583)

90201-12593-00

Unavailable

19

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

20

CDI UNIT ASSEMBLY

3R5-85540-20-00

Unavailable

21

BAND, BATTERY

26L-82131-00-00

Unavailable

22

DAMPER

3R5-85547-00-00

Unavailable

23

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
