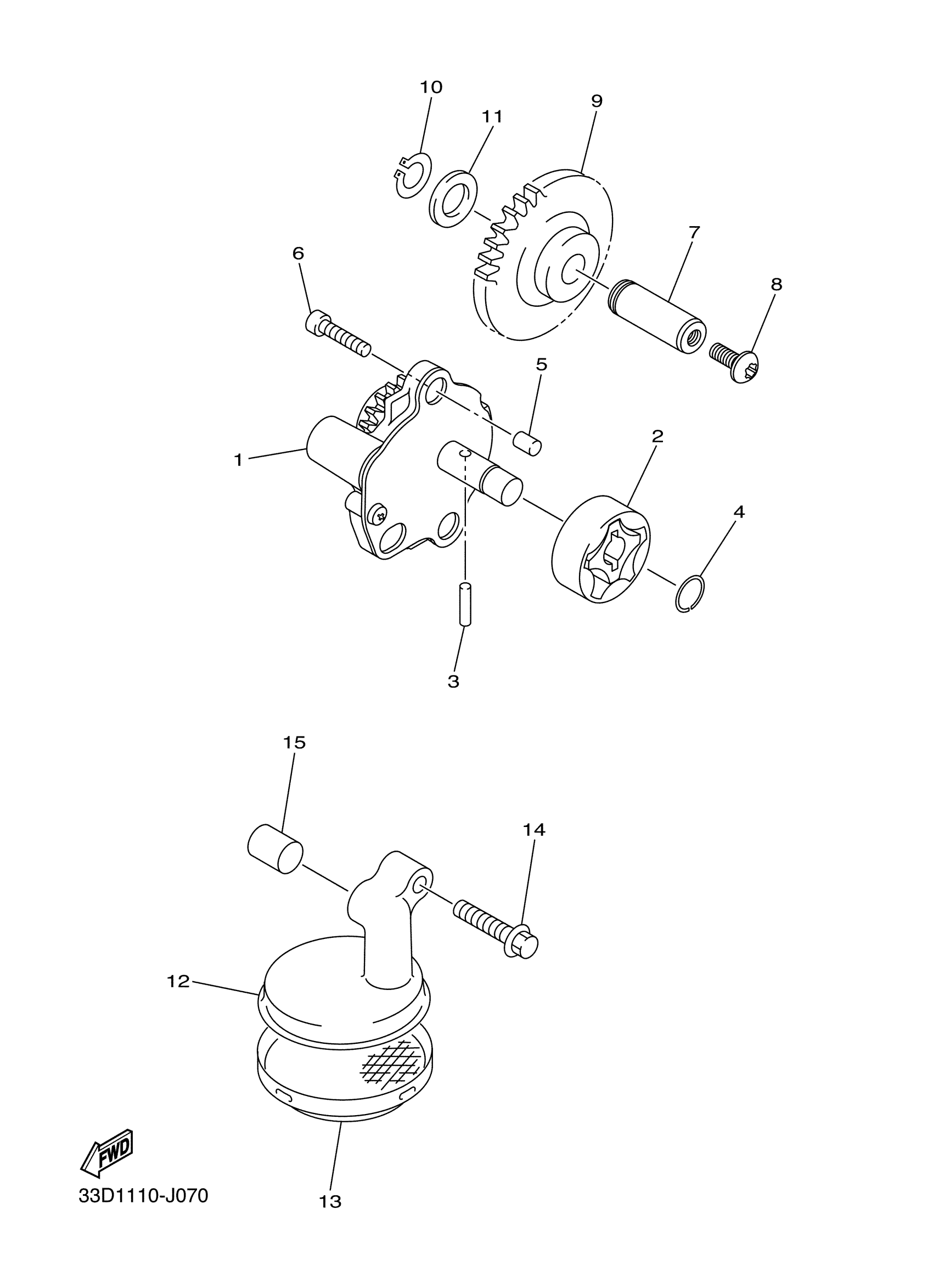

Yamaha YZ450FZW (YZ450F) 33D10 2010 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2S2-13300-10-00

$139.07

2

ROTOR ASSY 2

5TA-13320-00-00

$39.26

3

PIN, DOWEL(1HX)

93603-16219-00

$4.89

4

CIRCLIP(1WG)

93440-10153-00

$1.95

5

PIN, DOWEL

99530-08012-00

$4.89

6

BOLT

91312-06138-00

Unavailable

7

SHAFT, IDLE GEAR

2S2-13342-00-00

$19.47

8

SCREW

90149-06068-00

$3.13

9

GEAR, OIL PUMP IDLE

2S2-13341-00-00

$79.48

10

CIRCLIP(10Y)

99009-12400-00

$2.87

11

WASHER PLATE 164185720000

90201-12166-00

$5.86

12

HOUSING, STRAINER

2S2-13412-00-00

Unavailable

13

STRAINER, OIL

5BE-13411-00-00

$19.11

14

BOLT, FLANGE

90105-06091-00

$4.41

15

PIN, DOWEL(3VD)

99530-10114-00

$2.13
